Description

Price

1

CARBURETOR ASY,L.H&CN

16001-165

$277.18

1

CARBURETOR ASY,L-H&CN

16001-276

$250.88

1

CARBURETOR ASY,L-H&CN

16001-276

$250.88

2

CARBURETOR ASSY,R.H

16001-166

$360.72

2

CARBURETOR ASSY,R.H

16001-257

$139.48

2

CARBURETOR ASSY,R H

16001-277

$246.58

3

CAP CARBURETOR RUBBER

16036-004

$49.12

4

PIN COTTER 1.2X10

550D1210

$2.65

5

SCREW-THROTTLE STOP

16021-002

$18.22

6

SPRING,THROTTLE STOP SCREW

16022-005

$8.68

7

SPRING THROTTLE VALVE

16006-012

Unavailable

8

SPRING SEAT THRTL VLV

16007-007

$9.35

9

CLAMP,E-TYPE

16008-010

$9.21

10

JET NEEDLE 5DJ19

16009-049

Unavailable

11

ROD THROTTLE VLV STOP

16024-005

Unavailable

12

VALVE-THROTTLE CA2.0

16025-048

$90.26

13

NEEDLE JET,0-4

16017-062

Unavailable

14

CLAMP SET CARB MOUNT

16051-002

Unavailable

15

SCREW

16014-006

$17.15

16

SPRING,PILOT AIR SCREW

16022-007

$8.13

17

GASKET FLOAT CHAMBER

16019-008

$43.88

18

JET-PILOT,#30

92064-022

$17.03

18

JET-PILOT,#25

92064-032

$19.34

19

WASHER,MAIN JET

16034-001

$4.31

20

MAIN JET NO 92.5R

92063-068

$14.10

20

JET-MAIN,#75R

92063-109

Unavailable

20

JET-MAIN,#87.5R

92063-094

Unavailable

20

JET-MAIN,#A90R

92063-1029

Unavailable

20

JET-MAIN,#A95R

92063-1031

Unavailable

20

MAIN JET,#A97.5R

92063-1035

Unavailable

20

MAIN JET,#70R

92063-1012

Unavailable

20

MAIN JET NO 72.5R

92063-108

Unavailable

20

JET-MAIN,#A77.5R

92063-1032

Unavailable

20

JET-MAIN,#A80R

92063-1030

Unavailable

21

FLOAT

16031-023

Unavailable

22

SCREW FLOAT CHAMBER

16033-009

$0.68

23

ADJUSTER-CABLE

16002-017

$13.38

24

NUT,CABLE ADJUST LOCK

16003-004

$7.34

25

CAP MIXING CHAMBER

16004-006

Unavailable

26

TOP MIXING CHAMBER

16005-016

$12.92

27

CAP CABLE ADJUST RUBB

16036-005

$11.27

28

CAP STARTER PLUNGER

16012-008

Unavailable

29

SPRING-PLUNGER

16013-003

$6.16

30

PLUNGER,STARTER

16016-002

$31.85

31

PIN,FLOAT

16032-003

$6.57

32

WASHER FLOAT VLV SEAT

16029-004

$3.89

33

VALVE-FLOAT,2.5

16030-005

$58.86

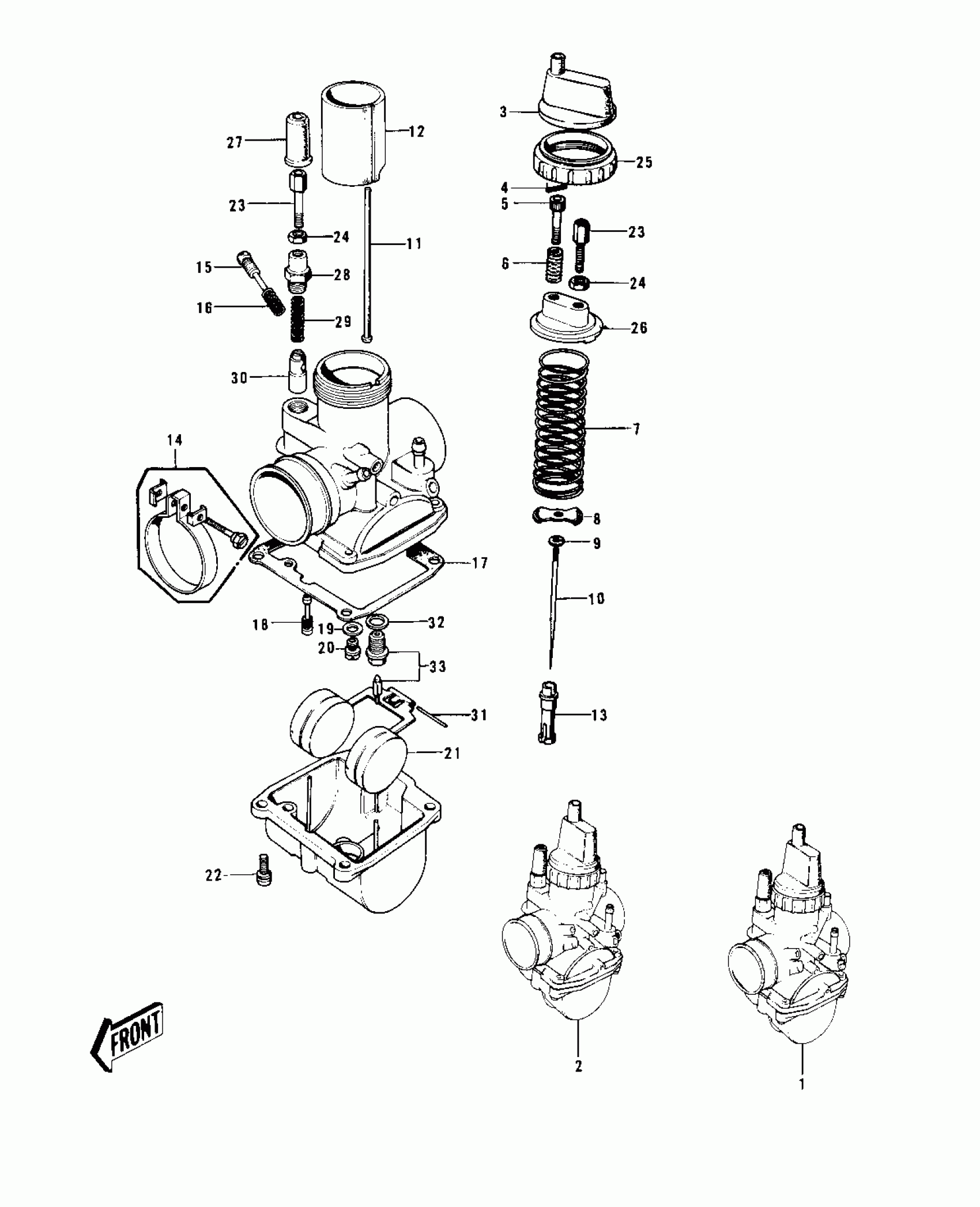

Kawasaki KH500-A8 CARBURETORS ('73-'75 D/E/F & '76 A8) Diagram

CARBURETOR ASY,L.H&CN

CARBURETOR ASY,L-H&CN

CARBURETOR ASY,L-H&CN

CARBURETOR ASSY,R.H

CARBURETOR ASSY,R.H

CARBURETOR ASSY,R H

CAP CARBURETOR RUBBER

PIN COTTER 1.2X10

SCREW-THROTTLE STOP

SPRING,THROTTLE STOP SCREW

SPRING THROTTLE VALVE

SPRING SEAT THRTL VLV

CLAMP,E-TYPE

JET NEEDLE 5DJ19

ROD THROTTLE VLV STOP

VALVE-THROTTLE CA2.0

NEEDLE JET,0-4

CLAMP SET CARB MOUNT

SCREW

SPRING,PILOT AIR SCREW

GASKET FLOAT CHAMBER

JET-PILOT,#30

JET-PILOT,#25

WASHER,MAIN JET

MAIN JET NO 92.5R

JET-MAIN,#75R

JET-MAIN,#87.5R

JET-MAIN,#A90R

JET-MAIN,#A95R

MAIN JET,#A97.5R

MAIN JET,#70R

MAIN JET NO 72.5R

JET-MAIN,#A77.5R

JET-MAIN,#A80R

FLOAT

SCREW FLOAT CHAMBER

ADJUSTER-CABLE

NUT,CABLE ADJUST LOCK

CAP MIXING CHAMBER

TOP MIXING CHAMBER

CAP CABLE ADJUST RUBB

CAP STARTER PLUNGER

SPRING-PLUNGER

PLUNGER,STARTER

PIN,FLOAT

WASHER FLOAT VLV SEAT

VALVE-FLOAT,2.5
