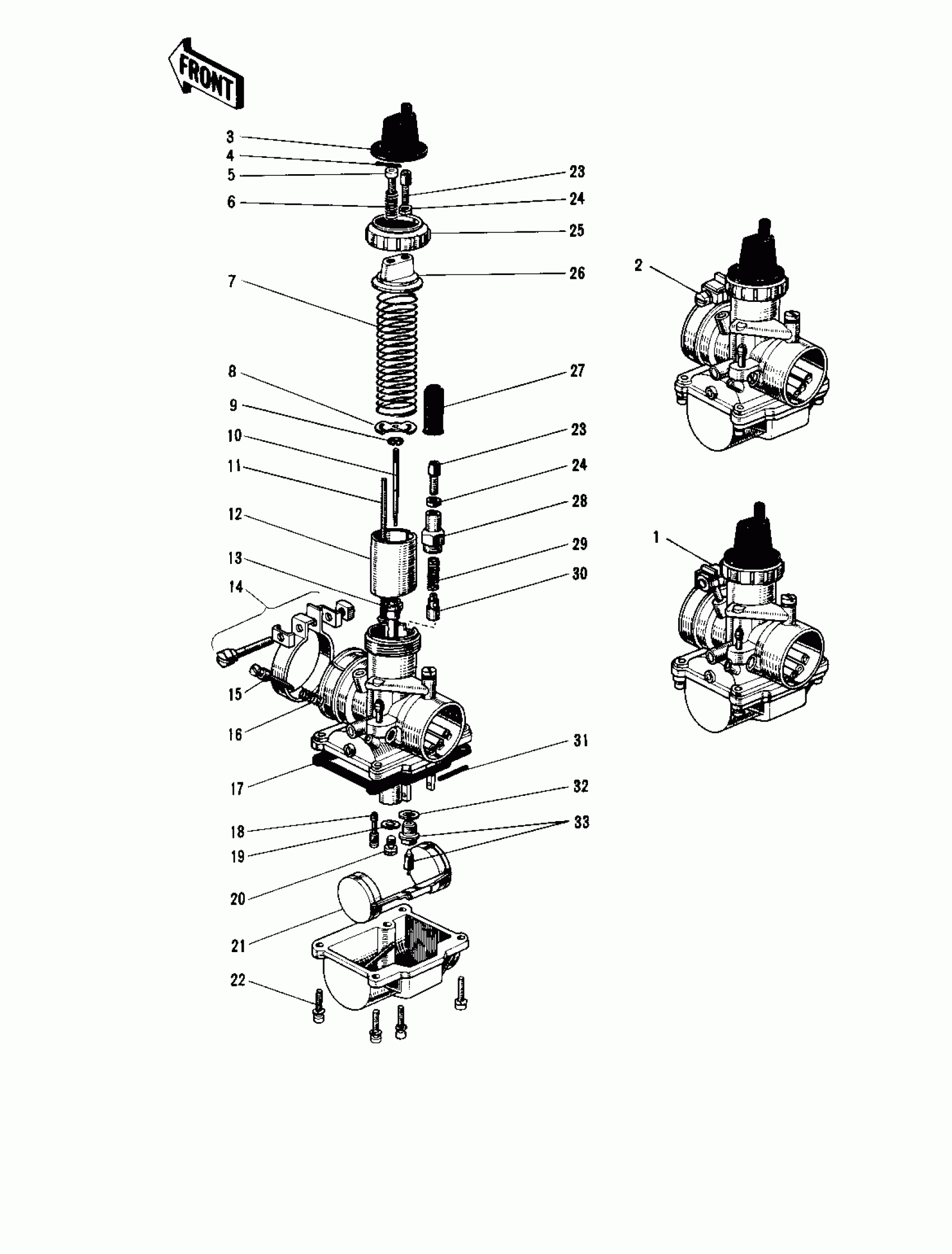

Kawasaki KH500-A8 CARBURETORS ('69-'72 H1/A/B/C) Diagram
#
1
CARBURETOR ASY,L.H&CN
16001-165
$277.18
1
CARBURETOR ASY,L.H&CN
16001-165
$277.18
1
CARBURETOR ASY,L.H&CN
16001-165
$277.18
2
CARBURETOR ASSY,R.H
16001-166
$360.72
2
CARBURETOR ASSY,R.H
16001-166
$360.72
2
CARBURETOR ASSY,R.H
16001-166
$360.72
3
CAP CARBURETOR RUBBER
16036-004
$49.12
4
PIN COTTER 1.2X10
550D1210
$2.65
5
SCREW-THROTTLE STOP
16021-002
$18.22
6
SPRING,THROTTLE STOP SCREW
16022-005
$8.68
7
SPRING THROTTLE VALVE
16006-012
Unavailable
8
SPRING SEAT THRTL VLV
16007-007
$9.35
9
CLAMP,E-TYPE
16008-010
$9.21
10
JET NEEDLE, 5GL03
16009-021
Unavailable
10
JET NEEDLE 5DJ19
16009-049
Unavailable
11
ROD THROTTLE VLV STOP
16024-005
Unavailable
12
VALVE THROTTLE CA3.0
16025-021
Unavailable
12
VALVE-THROTTLE CA2.0
16025-048
$90.26
13
NEEDLE JET O-2
16017-029
Unavailable
13
NEEDLE JET 0-4
16017-058
Unavailable
13
NEEDLE JET,0-4
16017-062
Unavailable
14
CLAMP SET CARB MOUNT
16051-002
Unavailable
15
SCREW
16014-006
$17.15
16
SPRING,PILOT AIR SCREW
16022-007
$8.13
17
GASKET FLOAT CHAMBER
16019-008
$43.88
18
JET-PILOT,#30
92064-022
$17.03
19
WASHER,MAIN JET
16034-001
$4.31
20
MAIN JET,#A100
92063-1033
$26.79
20
JET-MAIN,#A95R
92063-1031
$14.34
20
JET-MAIN,#87.5R
92063-094
Unavailable
20
JET-MAIN,#A90R
92063-1029
Unavailable
20
MAIN JET NO 92.5R
92063-068
Unavailable
20
MAIN JET,#A97.5R
92063-1035
Unavailable
20
MAIN JET,#A102.5
92063-1028
Unavailable
20
MAIN JET,#A105R
92063-1042
Unavailable
21
FLOAT
16031-023
Unavailable
21
FLOAT
16031-023
Unavailable
22
SCREW FLOAT CHAMBER
16033-009
$0.68
23
ADJUSTER-CABLE
16002-017
$13.38
24
NUT,CABLE ADJUST LOCK
16003-004
$7.34
25
CAP MIXING CHAMBER
16004-006
Unavailable
26
TOP MIXING CHAMBER
16005-016
$12.92
27
CAP CABLE ADJUST RUBB
16036-005
$11.27
28
CAP STARTER PLUNGER
16012-008
Unavailable
29
SPRING-PLUNGER
16013-003
$6.16
30
PLUNGER,STARTER
16016-002
$31.85
31
PIN,FLOAT
16032-003
$6.57
32
WASHER FLOAT VLV SEAT
16029-004
$3.89
33
VALVE-FLOAT,2.5
16030-005
$58.86
