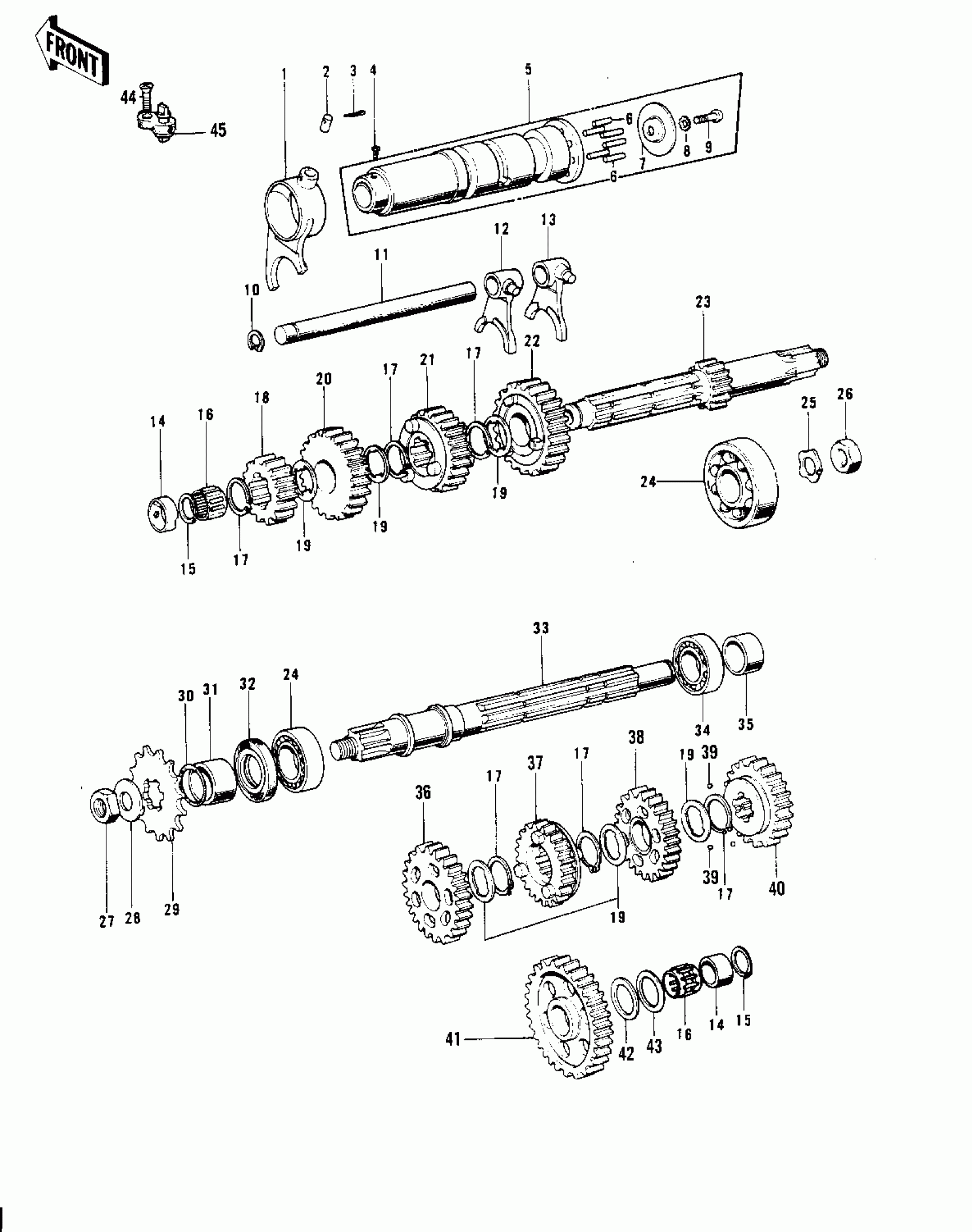

Kawasaki KH400-A4 TRANSMISSION/CHANGE DRUM ('76-'78 A3/A4/ Diagram
#
1
FORK-SELECTOR,4TH&TOP
13140-037
Unavailable
2
PIN,DOWEL,8X18
92042-021
Unavailable
3
PIN-COTTER,3.0X20
550D3020
Unavailable
4
SCREW PAN HEAD 4X6
211B0406A
Unavailable
5
DRUM ASSY-GEAR CHANGE
13239-003
Unavailable
6
PIN,DOWEL,4X15.8
92042-014
Unavailable
7
PLATE CHANGE DRUM PIN
13142-008
Unavailable
8
WASHER LOCK 6MM
464H0600
Unavailable
9
SCREW-PAN-CROS,6X14
220B0614
Unavailable
10
CIRCLIP-TYPE-E,10MM
482J0100
Unavailable
11
ROD-SHIFT
13209-006
Unavailable
12
SELECTOR FORK,2ND&3RD
13140-054
Unavailable
13
SELECTOR FORK,LOW
13140-053
Unavailable
14
BUSH TRANSMMISION SFT
92028-043
Unavailable
15
CIRCLIP 17MM
92033-009
Unavailable
16
BEARING NEEDLE
92046-005
Unavailable
17
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
18
2ND GEAR-DRIVE SHAFT
13130-028
Unavailable
19
WASHER-LOCK
92024-034
Unavailable
20
TOP GEAR-DRIVE SHAFT
13136-038
Unavailable
21
3RD GEAR-DRIVE SHAFT
13132-027
Unavailable
22
4TH GEAR-DRIVE SHAFT
13134-013
Unavailable
23
SHAFT-DRIVE
13127-034
Unavailable
24
BEARING BALL 6205NX3
92045-010
Unavailable
25
WASHER-LOCK,14MM
92024-046
Unavailable
26
NUT-HEX-FINE,14MM
315B1400
Unavailable
27
NUT,18MM
92015-019
Unavailable
28
WASHER,LOCK,18MM
92024-067
Unavailable
29
ENGINE SPROCKET 15T
13144-030
Unavailable
29
ENGINE SPROCKET 14T
13144-035
Unavailable
29
ENG SPROCKET 16T (OPT
13144-036
Unavailable
30
RING-O
92055-035
Unavailable
31
SPACER-ENG SPROCKET
92026-1024
Unavailable
31
SPACER-ENG SPROCKET
92026-1024
Unavailable
32
SEAL-OIL,SC325210
92050-024
Unavailable
33
SHAFT,OUTPUT
13128-5004
Unavailable
33
SHAFT,OUTPUT
13128-5004
Unavailable
34
BEARING-BALL,#6005C3
601B6005
Unavailable
35
COLLAR
92027-135
Unavailable
36
2ND GEAR-OUTPUT SHAFT
13131-034
Unavailable
37
TOP GEAR-OUTPUT SHAFT
13137-022
Unavailable
38
3RD GEAR-OUTPUT SHAFT
13133-027
Unavailable
39
BALL-STEEL,5/32
600A0500
Unavailable
40
4TH GEAR-OUTPUT SHAFT
13135-017
Unavailable
41
LOW GEAR-OUTPUT SHAFT
13129-038
Unavailable
42
WASHER THRUST
92026-021
Unavailable
43
WASHER 17MM
92022-075
Unavailable
44
SCREW-CSK-CROS,6X16
221B0616
Unavailable
45
SWITCH,NEUTRAL
13151-021
Unavailable
