1977 Kawasaki KH400-A4 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1977 Kawasaki KH400-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

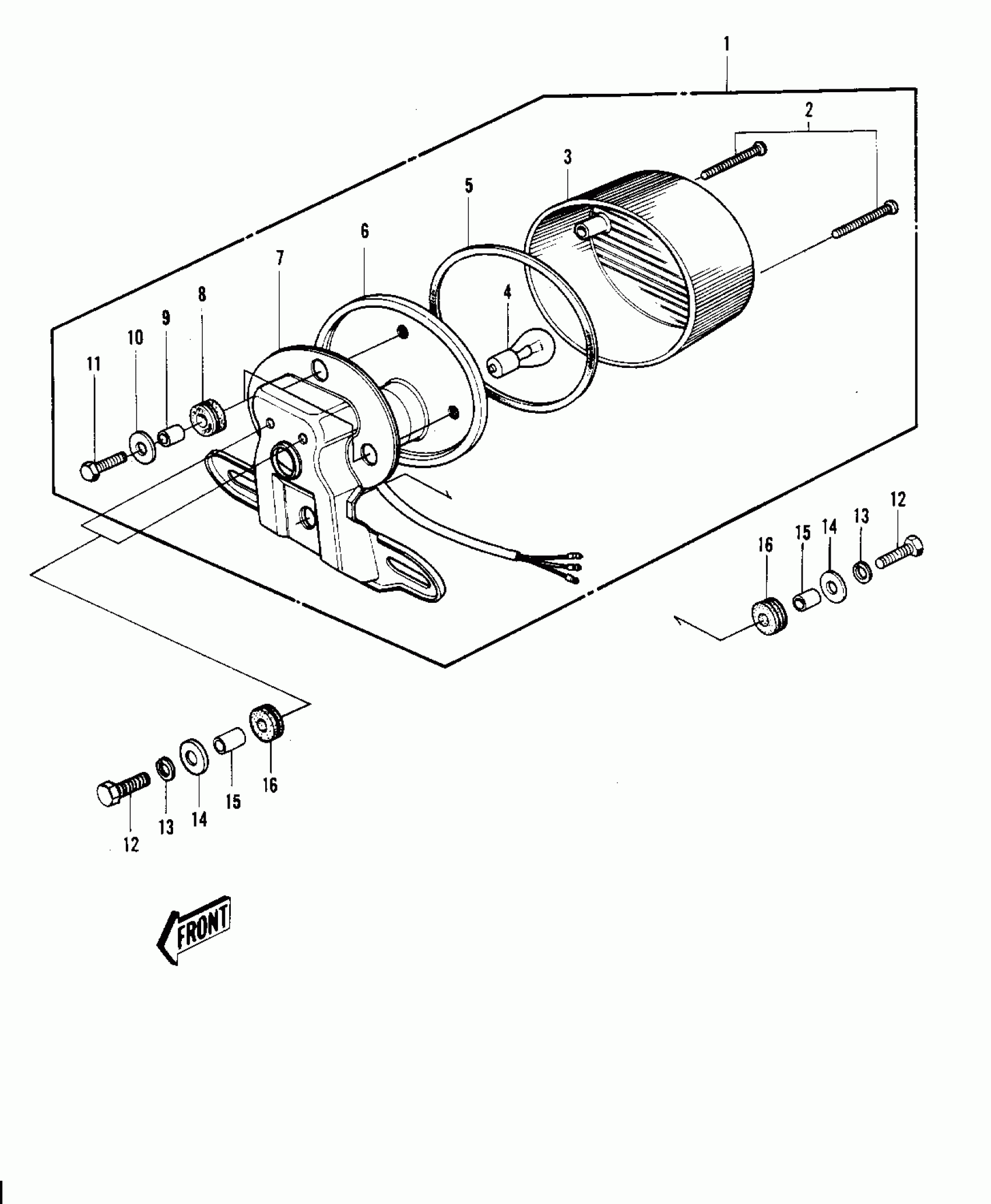

1977 Kawasaki KH400-A4 Taillight Diagram

#

Description
Price
Status
Order Qty

1

LAMP ASSY-TAIL,BLACK

23024-026-21

Out of stock

2

SCREW-PAN HEAD,4X35

220E0435A

Out of stock

3

LENS-TAIL LAMP

23026-023

Out of stock

4

BULB,12V 32/3CP(23/8W)

92069-060

Out of stock

5

GASKET-TAIL LAMP LENS

23028-018

Out of stock

6

CASE,TAIL LAMP

23027-030

Out of stock

7

BKT-LICENSE PLT,BLACK

23036-022-21

Out of stock

8

DAMPER RUBBER

92075-076

Out of stock

9

COLLAR,6.8X10X8.5

92027-129

Out of stock

10

WASHER,6.5X20X1.6

92022-125

Out of stock

11

BOLT 6X22

112B0622

Out of stock

12

BOLT 6X22

112B0622

Out of stock

13

WASHER SPRING 6MM

461F0600

Out of stock

14

WASHER,6.5X20X1.6

92022-125

Out of stock

15

COLLAR 6.8X10X10.5

92027-120

Out of stock

16

DAMPER RUBBER

92075-112

Out of stock
