1977 Kawasaki KH400-A4 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1977 Kawasaki KH400-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

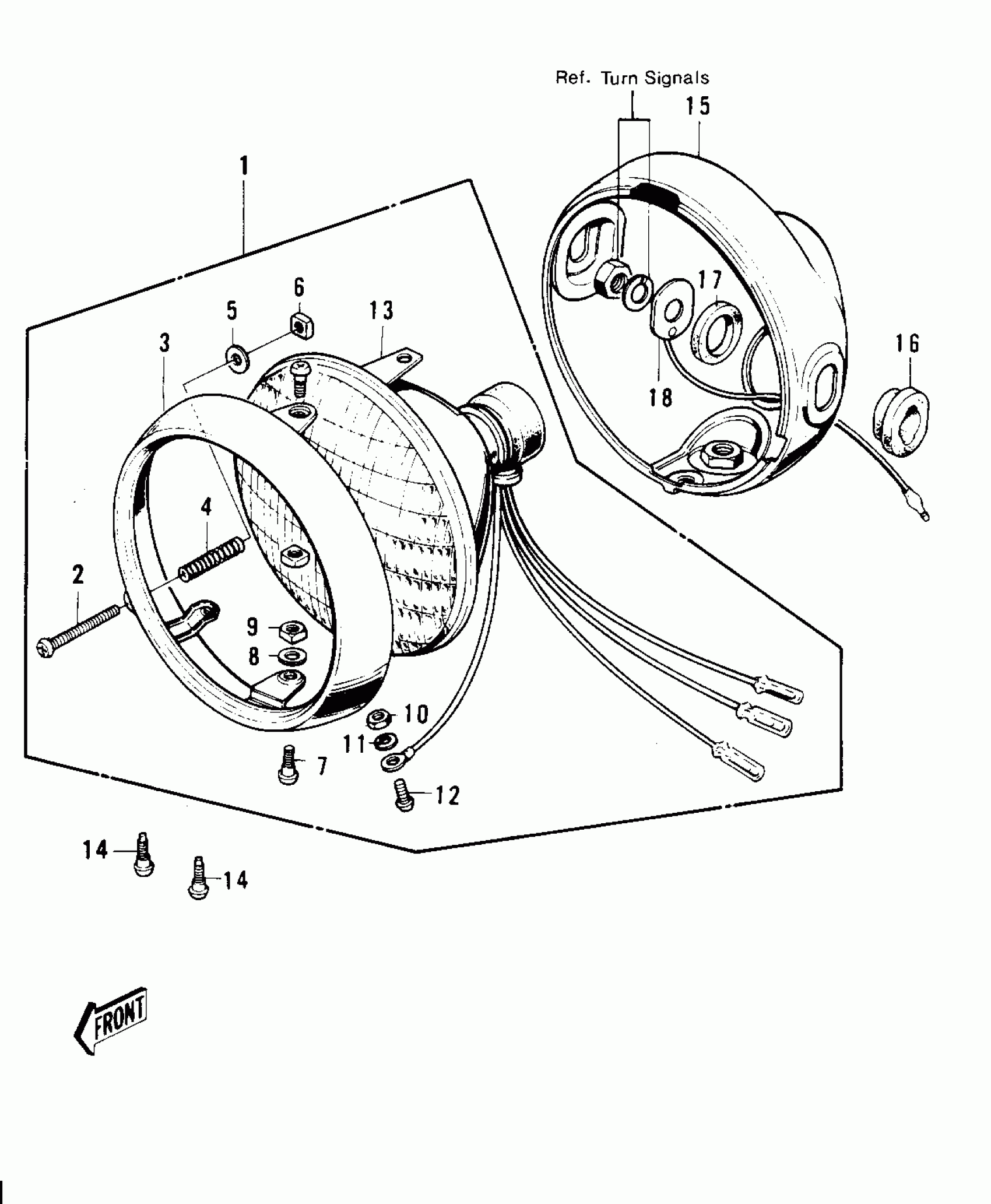

1977 Kawasaki KH400-A4 Headlight Diagram

#

Description
Price
Status
Order Qty

1

LAMP UNIT-HEAD

23003-018

Out of stock

2

SCREW,FOCUS ADJUSTING

23019-021

Out of stock

3

RIM-HEAD LAMP

23006-034

Out of stock

4

SPRING,FOCUS ADJUSTING

23014-005

Out of stock

5

WASHER,4.1X8X0.8

23021-004

Out of stock

6

NUT,4MM,FOCUS ADJUST

23020-018

Out of stock

7

SCREW,PAN HEAD,5X12

23019-023

Out of stock

8

WASHER,PLAIN,5MM

23021-012

Out of stock

9

NUT,5MM

23020-023

Out of stock

10

NUT-HEX

311B0300

Out of stock

11

WASHER SPRING 3MM

461F0300

Out of stock

12

SCREW-PAN-CROS,3X6

220B0306

Out of stock

13

SEALED BEAM UNIT

23007-043

Out of stock

14

SCREW,SPECIAL,5X14

23019-022

Out of stock

15

BODY-HEAD.LAMP,BLACK

23005-038-21

Out of stock

16

DAMPER RUBBER A

23066-001

Out of stock

17

DAMPER RUBBER

23066-005

Out of stock

18

COLLAR

23076-005

Out of stock
