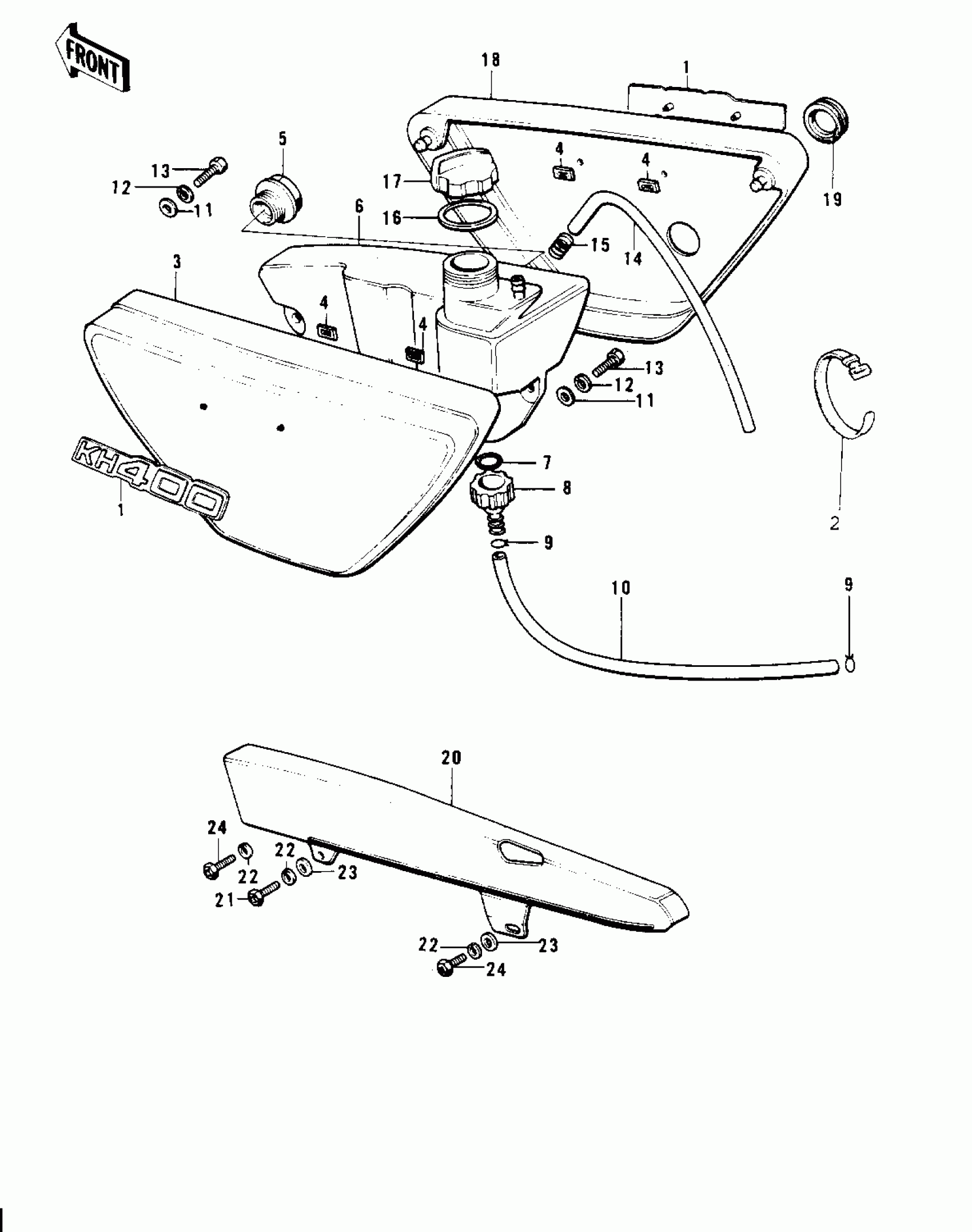

Kawasaki KH400-A4 SIDE COVERS/OIL TANK/CHAIN COVER Diagram
#
Description
Price
1
EMBLEM,SIDE COVER
56018-212
Unavailable
2
BAND,L=149
92072-031
Unavailable
3
COVER,L.H SIDE,D.GREN
36001-043-3V
Unavailable
3
COVER,L.H SIDE,ORANGE
36001-043-3W
Unavailable
3
COVER,L.H.SIDE,C.E.GR
36001-043-4U
Unavailable
3
COVER,L.H.SIDE C.L.G.
36001-043-3X
Unavailable
3
COVER,L.H,SIDE,C.P.R.
36001-043-A5
Unavailable
4
NUT,PUSH,3MM
92018-005
Unavailable
5
GAUGE-OIL LEVEL
52015-005
Unavailable
6
TANK,OIL
52001-040
Unavailable
7
O RING,15MM
670B2015
Unavailable
8
FILTER-OIL
52020-001
Unavailable
9
CLAMP,TUBE
92037-010
Unavailable
10
PIPE-OIL
92059-072
Unavailable
11
WASHER PLAIN 6MM
411B0600
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
BOLT-UPSET 6X14
112B0614
Unavailable
14
TUBE-VINYL 5X720
700Q05720
Unavailable
15
CLAMP,OIL TANK BREATR
92037-141
Unavailable
16
GASKET-OIL TANK CAP
92065-085
Unavailable
17
CAP-OIL TANK
52003-019
Unavailable
18
COVER,RH SIDE,D.GREEN
36007-037-3V
Unavailable
18
COVER,RH SIDE,ORANGE
36007-037-3W
Unavailable
18
COVER,RH SIDE,C.E.GRN
36007-037-4U
Unavailable
18
COVER,RH SIDE,C.L.GRN
36007-037-3X
Unavailable
18
COVER,RH SIDE,C.P.RED
36007-037-A5
Unavailable
19
GROMMET-R.H SIDE COV
92071-065
Unavailable
20
CASE-CHAIN,FR BLACK
36014-050-21
Unavailable
21
BOLT,6X10
92001-137
Unavailable
22
WASHER SPRING 6MM
461F0600
Unavailable
23
WASHER,6.5X20X1.6,WHITE
92022-193
Unavailable
24
BOLT,HEX HEAD,6X14
92001-121
Unavailable
