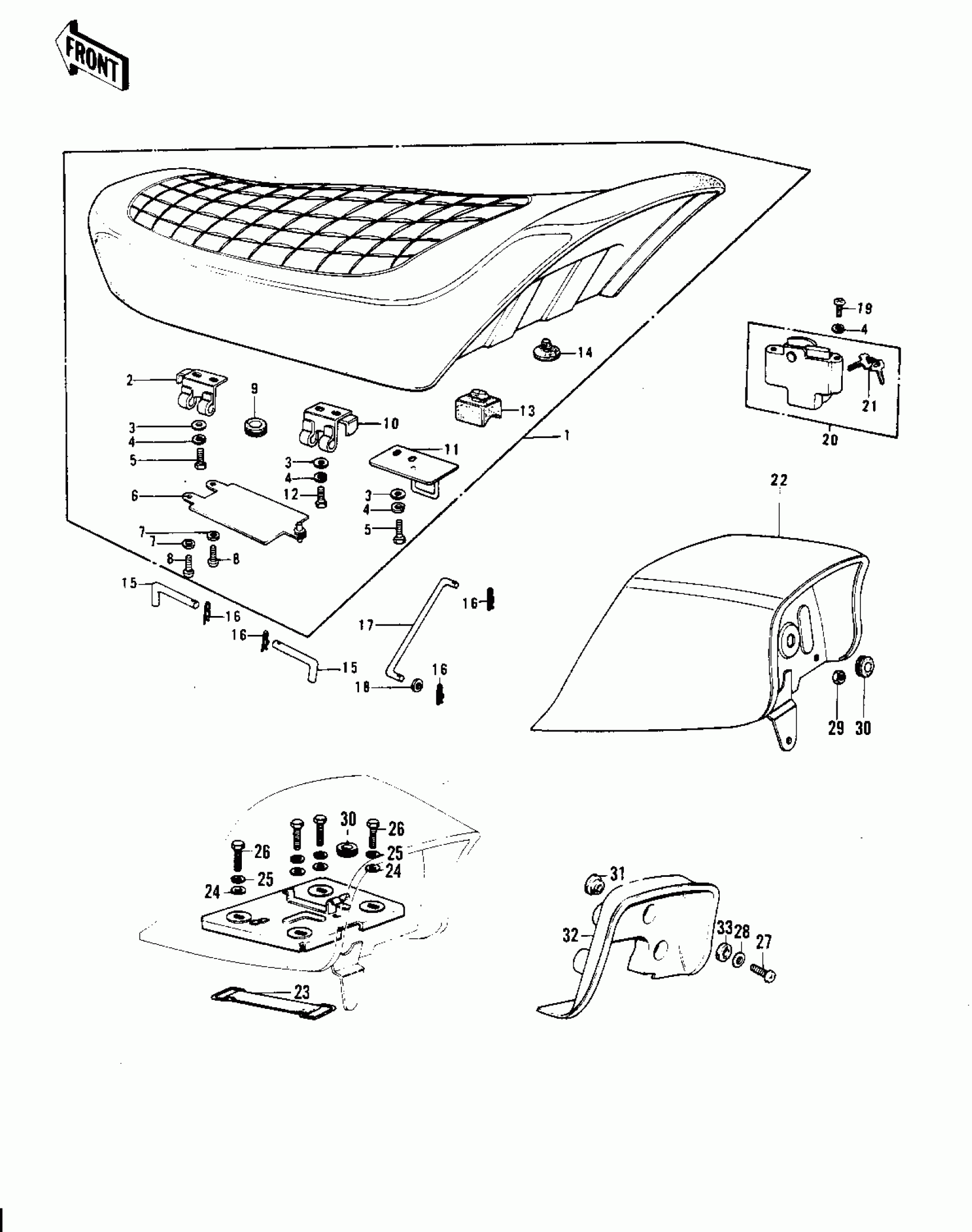

Kawasaki KH400-A4 SEAT/SEAT COVER Diagram
#
1
SEAT-ASSY,DUAL
53001-117
Unavailable
2
HINGE,FRONT
53009-031
Unavailable
3
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
BOLT-UPSET 6X14
112B0614
Unavailable
5
BOLT-UPSET 6X14
112B0614
Unavailable
6
CASE,MANUAL
32099-011
Unavailable
7
WASHER PLAIN 4MM
410B0400
Unavailable
8
SCREW PAN HEAD 4X10
220B0410
Unavailable
9
GROMMET
92071-056
Unavailable
10
HINGE,REAR
53009-030
Unavailable
11
HOOK,SEAT
53008-024
Unavailable
12
BOLT-UPSET,6X16
112G0616
Unavailable
12
BOLT-UPSET,6X16
112G0616
Unavailable
13
DAMPER RUBBER-SEAT
92075-156
Unavailable
14
DAMPER
92075-099
Unavailable
15
PIN,DUAL SEAT PIVOT
53011-008
Unavailable
16
COTTER PIN
92041-003
Unavailable
17
STAND,SEAT
53054-002
Unavailable
18
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
19
SCREW-PAN-CROS,6X14
220B0614
Unavailable
20
LOCK ASSY,SEAT
53045-013
Unavailable
21
KEY SET,#901
27008-055-01
Unavailable
21
KEY SET,#910
27008-055-10
Unavailable
22
BACK REST,D.GREEN
53043-008-3V
Unavailable
22
BACK REST,ORANGE
53043-008-3W
Unavailable
22
BACK REST,C.E.GREEN
53043-008-4U
Unavailable
22
COVER,SEAT,C.L.GREEN
53043-008-3X
Unavailable
22
UNAVAILABLE IN PRICE BOOK
53043-008-AS
Unavailable
23
BAND
92072-012
Unavailable
24
WASHER PLAIN 8MM
411B0800
Unavailable
25
WASHER SPRING 8MM
461F0800
Unavailable
26
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
26
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
27
SCREW PAN HEAD 6X28
220B0628
Unavailable
28
WASHER-PLAIN,7MM
92022-240
Unavailable
29
NUT 6MM
311B0600
Unavailable
30
GROMMET
92071-059
Unavailable
31
DAMPER RUBBER
92075-169
Unavailable
32
COVER,BACKREST
53057-004
Unavailable
33
DAMPER RUBBER
92075-168
Unavailable
