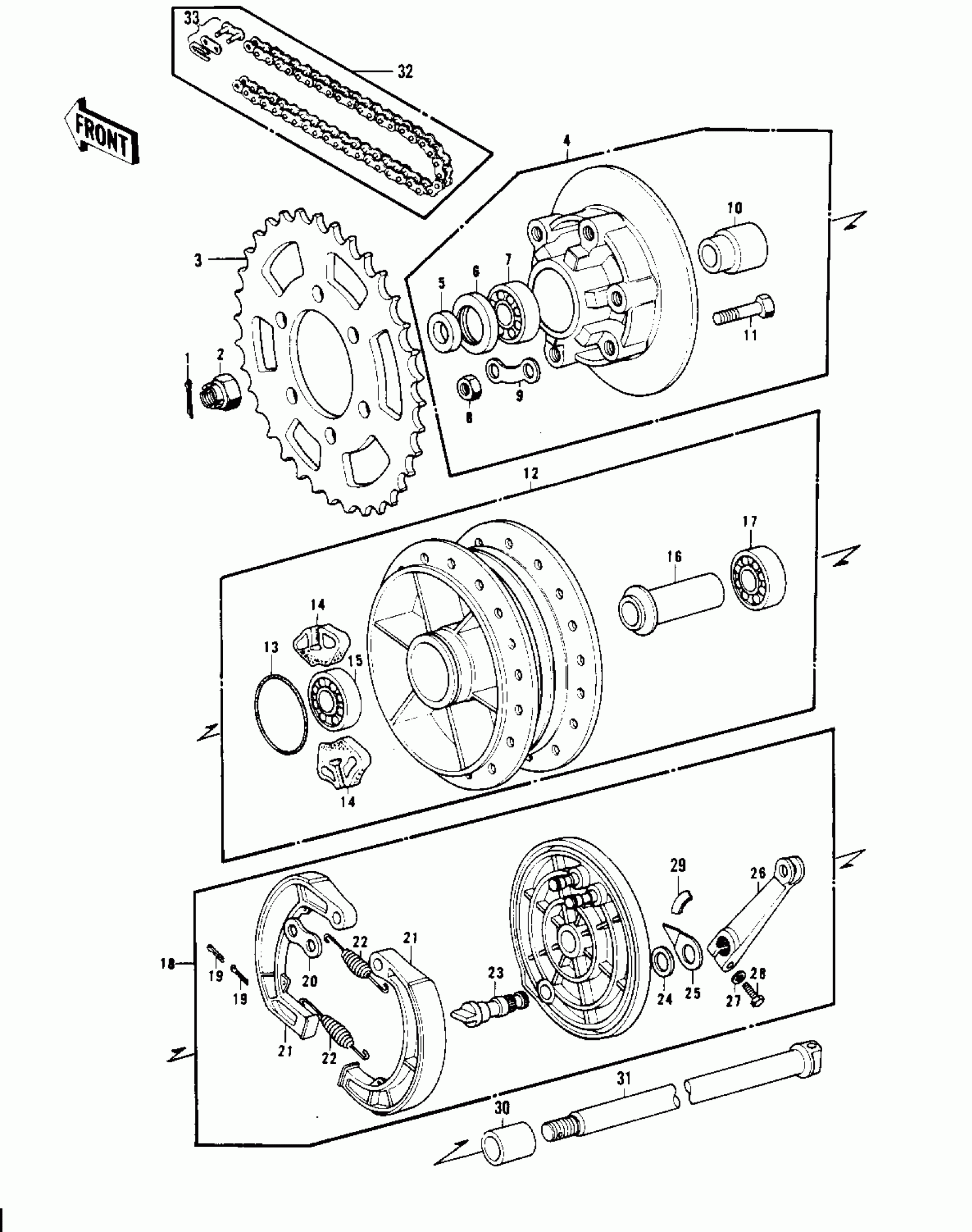

Kawasaki KH400-A4 REAR HUB/BRAKE/CHAIN Diagram
#
1
PIN-COTTER,4.0X35
550D4035
Unavailable
2
NUT,16MM
92015-055
Unavailable
3
REAR SPROCKET,41T
42041-138
Unavailable
3
REAR SPROCKET 38T
42041-063
Unavailable
3
REAR SPROCKET 43T
42041-102
Unavailable
4
COUPLING ASSY,RR BRK
42008-020
Unavailable
5
COLLAR,REAR AXLE
42037-024
Unavailable
6
SEAL-OIL,TWC35527
92052-006
Unavailable
7
BEARING-BALL,#6205C3
601B6205
Unavailable
8
NUT-HEX-FINE,10MM
314B1000
Unavailable
9
WASHER,SPROCKET LOCK
92088-005
Unavailable
10
SLEEVE,REAR AXLE
42036-019
Unavailable
11
BOLT-REAR SPROCKET
92003-087
Unavailable
12
DRUM ASY,RR BK,BUFF
42005-044-80
Unavailable
12-1
DRUM-ASSY,RR BRK
41034-5001
Unavailable
13
O RING,60MM
671B2560
Unavailable
14
DAMPER REAR HUB SHOCK
42014-008
Unavailable
15
BEARING-BALL,#6303C3
601B6303
Unavailable
16
SPACER,RR HUB BEARING
42010-027
Unavailable
16
SPACER RR HUB BEARING
42010-008
Unavailable
17
BEARING BALL #6303Z
601B6303Z
Unavailable
18
PANEL-ASY,RR BRK
42006-060-80
Unavailable
19
PIN COTTER 2.0X25
550D2025
Unavailable
20
WASHER,BRAKE SHOE
41045-007
Unavailable
21
SHOE REAR BRAKE
42019-003
Unavailable
22
SPRING BRAKE SHOE
41049-003
Unavailable
23
CAM SHAFT,REAR BRAKE
42026-015
Unavailable
24
SEAL,BRAKE CAM
41051-001
Unavailable
25
INDICATOR,BRAKE PANEL
41085-009
Unavailable
26
LEVER,REAR BRAKE CAM
42029-037
Unavailable
27
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
28
BOLT-UPSET
112G0625
Unavailable
29
LABEL
41084-001
Unavailable
30
COLLAR,REAR AXLE
42032-049
Unavailable
31
AXLE,REAR
42031-047
Unavailable
32
DR CHAIN 530X104E
92057-085
Unavailable
33
CHAIN JOINT 530
92058-008
Unavailable
