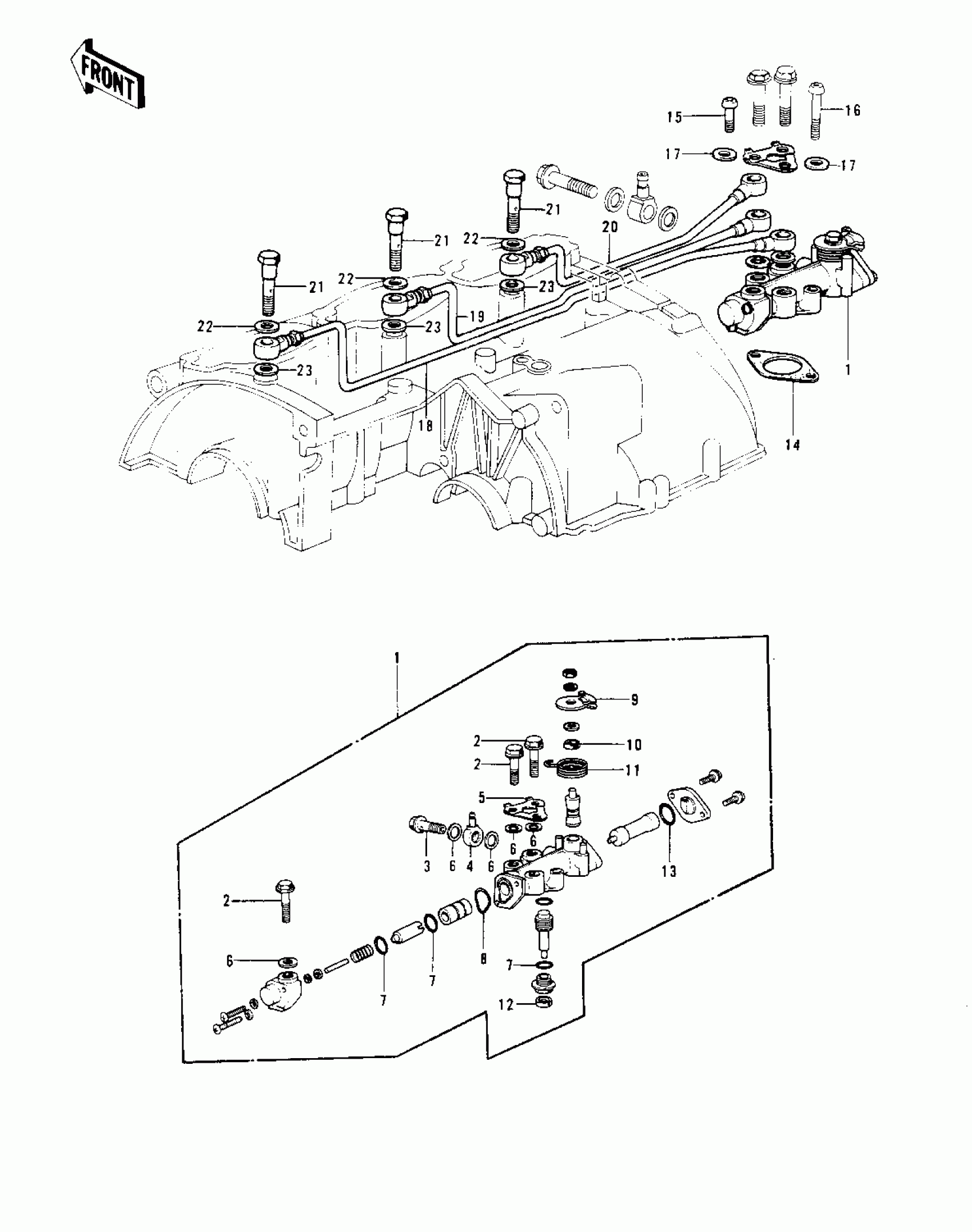

Kawasaki KH400-A4 OIL PUMP ('76-'78 A3/A4/A5) Diagram
#
Description
Price
1
PUMP ASSY,OIL
16082-1009
Unavailable
1
PUMP ASSY,OIL
16082-1009
Unavailable
2
BOLT,BANJO,L=13.5
92060-008
Unavailable
3
BOLT BANJO
92060-009
Unavailable
4
CONNECTOR BANJO
92061-015
Unavailable
5
WASHER,OIL PUMP LOCK
92024-058
Unavailable
6
WASHER OIL PUMP BANJO
92022-077
Unavailable
7
RING-O,OIL PUMP SHAFT
16090-002
Unavailable
8
RING-O,CAP,BANJO SIDE
16088-002
Unavailable
9
LETER,OIL PUMP CABLE
16096-011
Unavailable
10
SEAL-OIL,CAMSHAFT,"X"TYPE
92049-1294
Unavailable
11
SPRING OIL PUMP LEVER
16093-002
Unavailable
12
SEAL-OIL,OIL PUMP SHAFT
16091-001
Unavailable
13
"0" RING,LOWER CAP
16090-003
Unavailable
14
GASKET,OIL PUMP
11060-1160
Unavailable
15
SCREW-PAN-CROS
220B0514
Unavailable
16
SCREW-PAN-CROS
220B0528
Unavailable
17
WASHER,5.5X10.5X0.8
92022-037
Unavailable
18
PIPE-OIL,L.H
16134-012
Unavailable
19
PIPE-OIL,CENTER
16134-013
Unavailable
20
PIPE-OIL,R.H
16134-014
Unavailable
21
BOLT-BANJO,CR
92060-010-79
Unavailable
22
GASKET,10.5X16X1
92065-058
Unavailable
23
GASKET,8.5X16X1
92065-023
Unavailable
