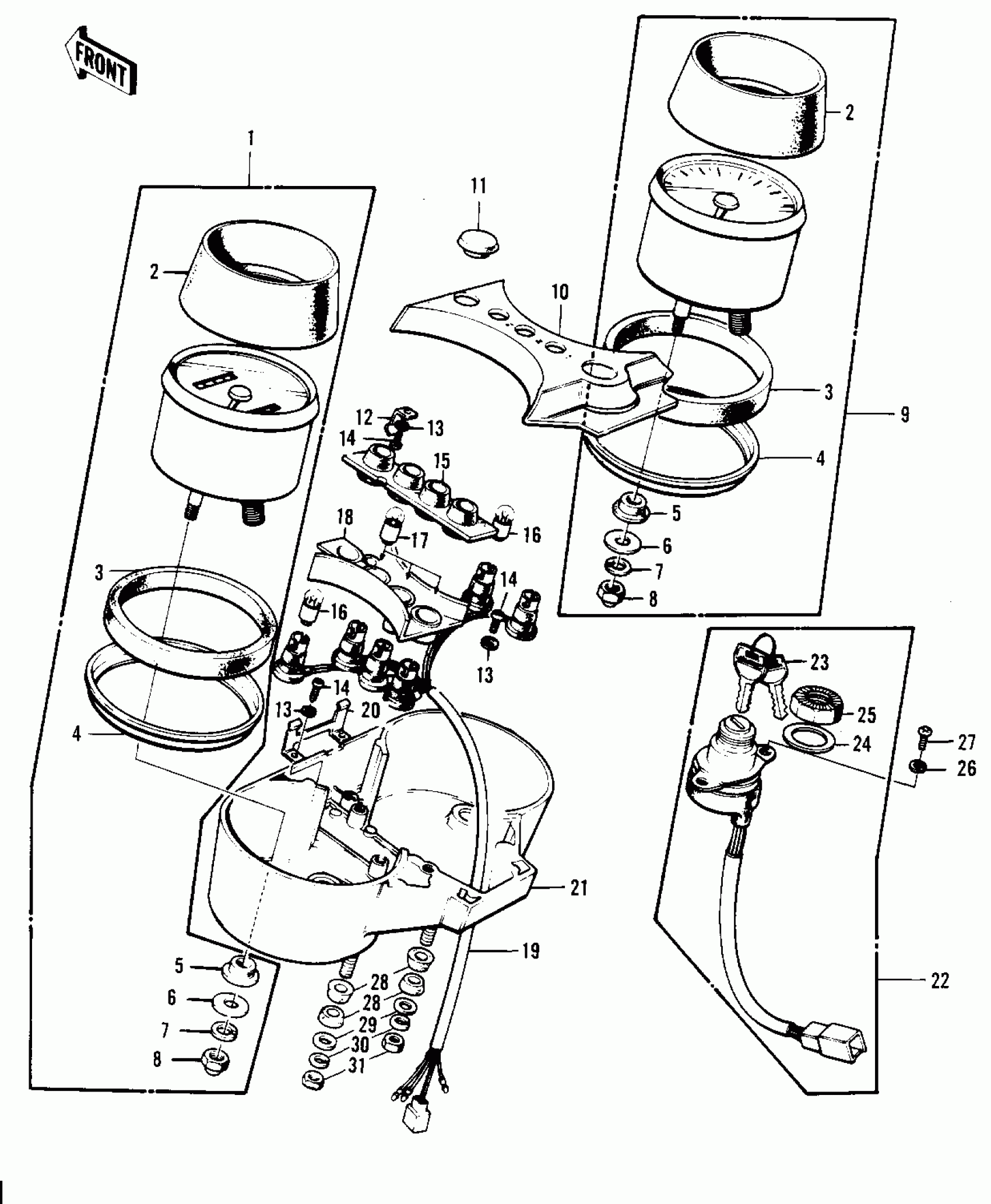

Kawasaki KH400-A4 METERS/IGNITION SWITCH Diagram
#
1
SPEEDOMETER ASSY,MPH
25005-124
Unavailable
1
SPEEDO ASSY,KPH (Canada)
25005-076
Unavailable
2
COVER-METER
25012-012
Unavailable
3
DAMPER RUBBER-METER
25019-015
Unavailable
4
RING-METER
25026-001
Unavailable
5
DAMPER,METER
25019-013
Unavailable
6
WASHER-PLAIN,5MM
411B0500
Unavailable
7
WASHER SPRING 5MM
461F0500
Unavailable
8
NUT,5MM
92015-059
Unavailable
9
TACHOMETER ASSY
25016-020
Unavailable
10
COVER,METER CASE
25023-009
Unavailable
11
PLUG,RUBBER
92074-032
Unavailable
12
HOLDER-METER CASE COV
25014-004
Unavailable
13
WASHER SPRING 4MM
461F0400
Unavailable
14
SCREW PAN HEAD 4X8
220B0408
Unavailable
15
DAMPER RUBBER-METER
25019-014
Unavailable
16
BULB 12V 3W
92069-018
Unavailable
17
BULB 12V 1.5W
92069-017
Unavailable
18
COVER-METER SOCKET
25023-003
Unavailable
19
SOCKET,SPEEDOMETER
25011-030
Unavailable
20
HOLDER-METER CASE
25014-003
Unavailable
21
CASE-METER
25008-026
Unavailable
22
SWITCH-ASSY
27005-1021
Unavailable
23
KEY SET,#901
27008-055-01
Unavailable
23
KEY SET,#902
27008-055-02
Unavailable
23
KEY SET,#903
27008-055-03
Unavailable
23
KEY SET,#904
27008-055-04
Unavailable
23
KEY SET,#905
27008-055-05
Unavailable
23
KEY SET,#906
27008-055-06
Unavailable
23
KEY SET,#907
27008-055-07
Unavailable
23
KEY SET,#908
27008-055-08
Unavailable
23
KEY SET,#909
27008-055-09
Unavailable
23
KEY SET,#910
27008-055-10
Unavailable
23
KEY-LOCK,BLANK
27008-1024
Unavailable
23
KEY-LOCK,BLANK
27008-1025
Unavailable
24
WASHER-IGNITION
27019-002
Unavailable
25
NUT-IGNITION SWITCH
27007-003
Unavailable
26
WASHER SPRING 5MM
461F0500
Unavailable
27
SCREW PAN HEAD 5X8
220B0508
Unavailable
28
DAMPER RUBBER
92075-080
Unavailable
29
WASHER PLAIN 8MM
411B0800
Unavailable
30
WASHER SPRING 8MM
461F0800
Unavailable
31
NUT,8MM
311B0800
Unavailable
