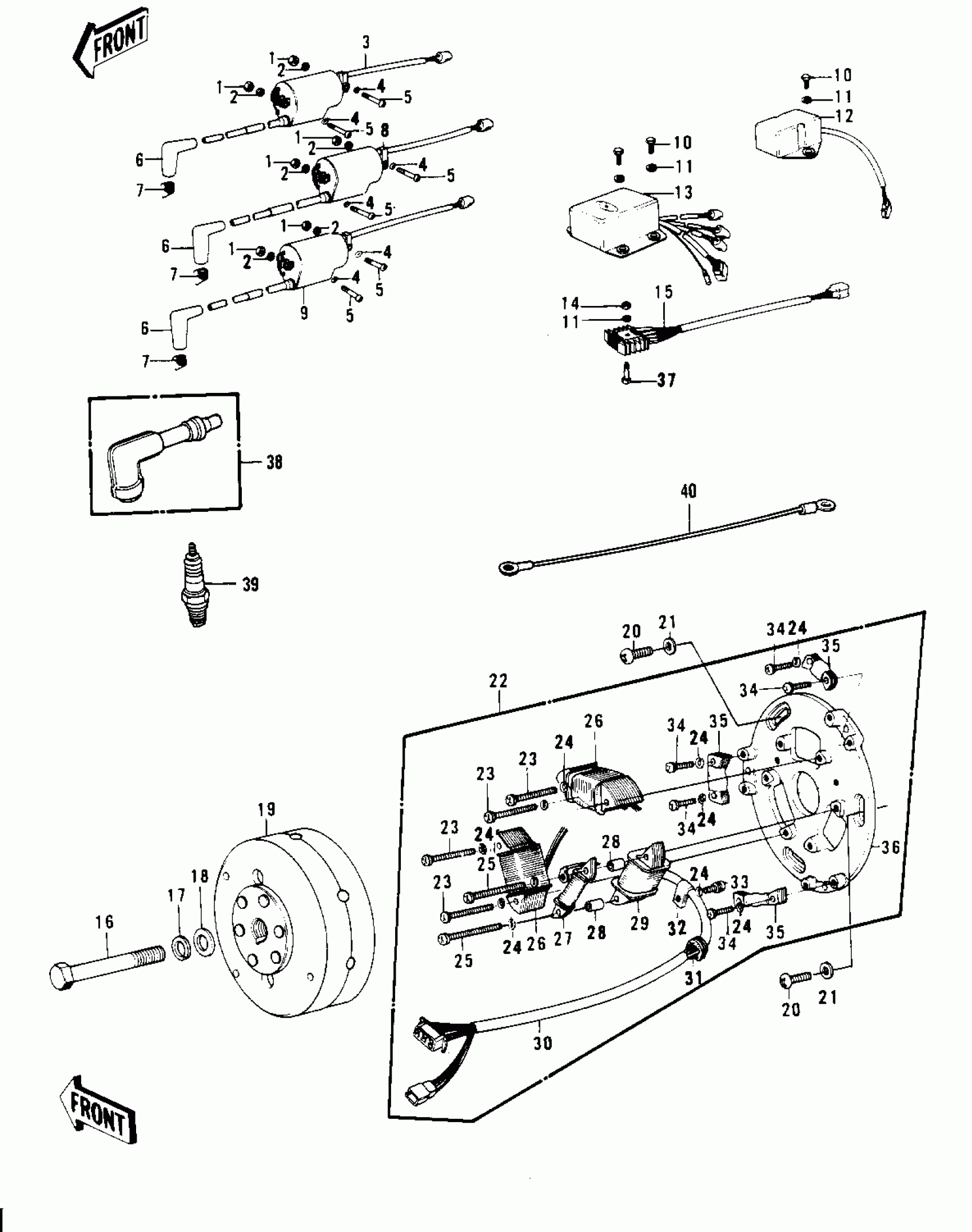

Kawasaki KH400-A4 IGNITION/GENERATOR/REGULATOR Diagram
#
1
NUT-HEX
311B0500
Unavailable
2
WASHER SPRING 5MM
461F0500
Unavailable
3
COIL,IGNITION,R.H
21121-080
Unavailable
4
WASHER-PLAIN,5MM
411B0500
Unavailable
5
SCREW-PAN-CROS
220B0520
Unavailable
6
CAP-SPARK PLUG
21130-009
Unavailable
7
TERMINAL,SPARK PLUG CAP
92101-001
Unavailable
8
COIL,IGNITION,CENTER
21121-079
Unavailable
9
COIL,IGNITION,L.H
21121-078
Unavailable
10
BOLT-UPSET,6X16
112G0616
Unavailable
11
WASHER SPRING 6MM
461F0600
Unavailable
12
REGULATOR
21072-009
Unavailable
13
IGNITION UNIT
21119-024
Unavailable
14
NUT 6MM
311B0600
Unavailable
15
RECTIFIER
21061-022
Unavailable
16
BOLT,10X45
92001-1182
Unavailable
16
BOLT,10X45
92001-1182
Unavailable
17
WASHER SPRING 8MM
461F0800
Unavailable
18
WASHER 8.5X23.5X4.5
92022-218
Unavailable
19
FLYWHEEL
21050-022
Unavailable
20
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
21
WASHER PLAIN 5MM
410B0500
Unavailable
22
STATOR ASSY
21003-032
Unavailable
23
SCREW-PAN HEAD,4X35
220E0435A
Unavailable
24
WASHER SPRING 4MM
461F0400
Unavailable
25
SCREW,PAN HEAD,4X38
21022-021
Unavailable
26
COIL,LIGHTING
21047-032
Unavailable
27
COIL,EXCITE
21047-029
Unavailable
28
COLLAR
21033-003
Unavailable
29
COIL,CHARGE
21047-028
Unavailable
30
WIRING HARNESS,MAGNT
21029-035
Unavailable
31
GROMMET
21017-002
Unavailable
32
CLAMP,WIRING HARNESS
21037-006
Unavailable
33
SCREW PAN HEAD 4X8
220B0408
Unavailable
34
SCREW,PAN HEAD,4X18
21022-022
Unavailable
35
COIL,PULSER
21047-030
Unavailable
36
BASE,MAGNETO
21048-016
Unavailable
37
BOLT-UPSET,6X40
112G0640
Unavailable
38
CAP-ASSY-PLUG
21160-005
Unavailable
39
SPARK PLUG B8HS
B8HS
Unavailable
39
SPARK PLUG B8HS
B8HS
Unavailable
40
WIRE-LEAD
26011-084
Unavailable
