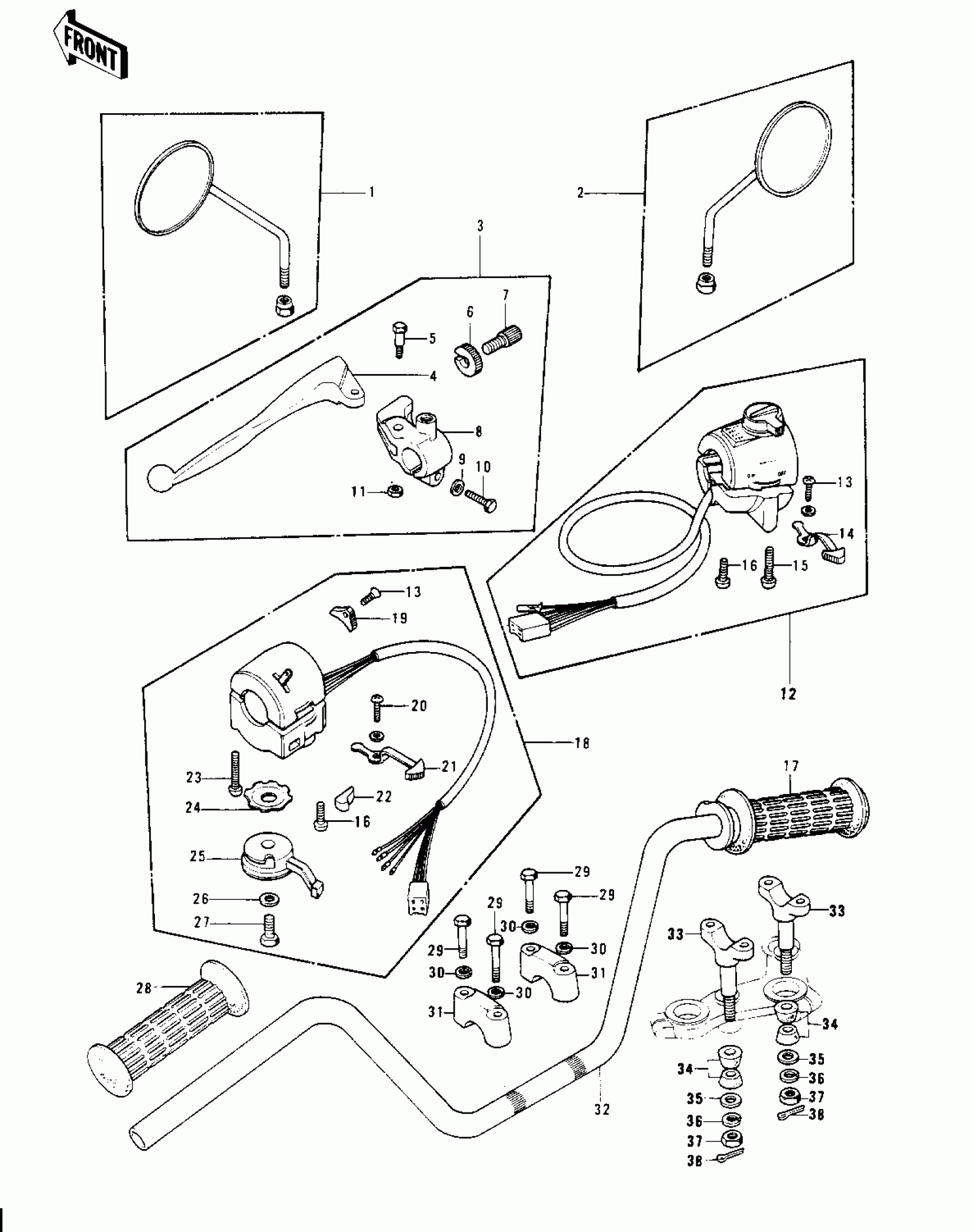

Kawasaki KH400-A4 HANDLEBAR Diagram
#
1
REAR VIEW MIRROR,L.H
56003-019
Unavailable
1
REAR VIEW MIRROR,L.H
56003-019
Unavailable
2
REAR VIEW MIRROR,R.H
56002-029
Unavailable
2
REAR VIEW MIRROR,R.H
56002-029
Unavailable
3
LEVER ASSY,CLUTCH
46076-049
Unavailable
4
LEVER-GRIP,CLUTCH
46092-023
Unavailable
5
BOLT,HEX HEAD
92007-047
Unavailable
6
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
7
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
8
HOLDER,CLUTCH LEVER
46094-017
Unavailable
9
WASHER PLAIN 6MM
411B0600
Unavailable
10
BOLT 6X22
112B0622
Unavailable
11
NUT,LOCK,6MM
92019-008
Unavailable
11
NUT,LOCK 6MM
92017-014
Unavailable
12
CASE ASSY,R.H
46132-027
Unavailable
12
CASE ASSY,R.H
46132-028
Unavailable
13
SCREW PAN HEAD 3X5
220B0305A
Unavailable
14
KNOB,LIGHING SWITCH
46043-006
Unavailable
15
SCREW-PAN-CROS
220B0535
Unavailable
16
SCREW PAN HEAD 5X22
220B0522
Unavailable
17
GRIP ASSY,THROTTLE
46019-041
Unavailable
18
CASE ASSY,L.H
46091-047
Unavailable
19
KNOB,LIGHTING SW L.H
46044-013
Unavailable
20
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
21
KNOB,LIGHTING SW L.H
46043-005
Unavailable
22
BUTTON,HORN PUSH
27010-1001
Unavailable
23
SCREW PAN HEAD 5X30
220B0530
Unavailable
24
WASHER LOCK
92095-012
Unavailable
25
LEVER,STARTER
46096-009
Unavailable
26
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
27
BOLT-UPSET,6X8
112B0608
Unavailable
28
RUBBER,L.H GRIP
46075-028
Unavailable
29
BOLT 8X38
92001-1405
Unavailable
30
WASHER SPRING 8MM
461F0800
Unavailable
31
HOLDER-HANDLE,UPP
46012-008
Unavailable
32
HANDLEBAR
46003-030
Unavailable
33
HOLDER-HANDLE,LWR
46012-010
Unavailable
34
DAMPER,HANDLE HOLDER
92075-039
Unavailable
35
PLATE,HANDLE HOLDER
46016-003
Unavailable
36
WASHER SPRING 10MM
461F1000
Unavailable
37
NUT-HEX-FINE,10MM
314B1000
Unavailable
38
PIN-SNAP,8MM
554A0800
Unavailable
