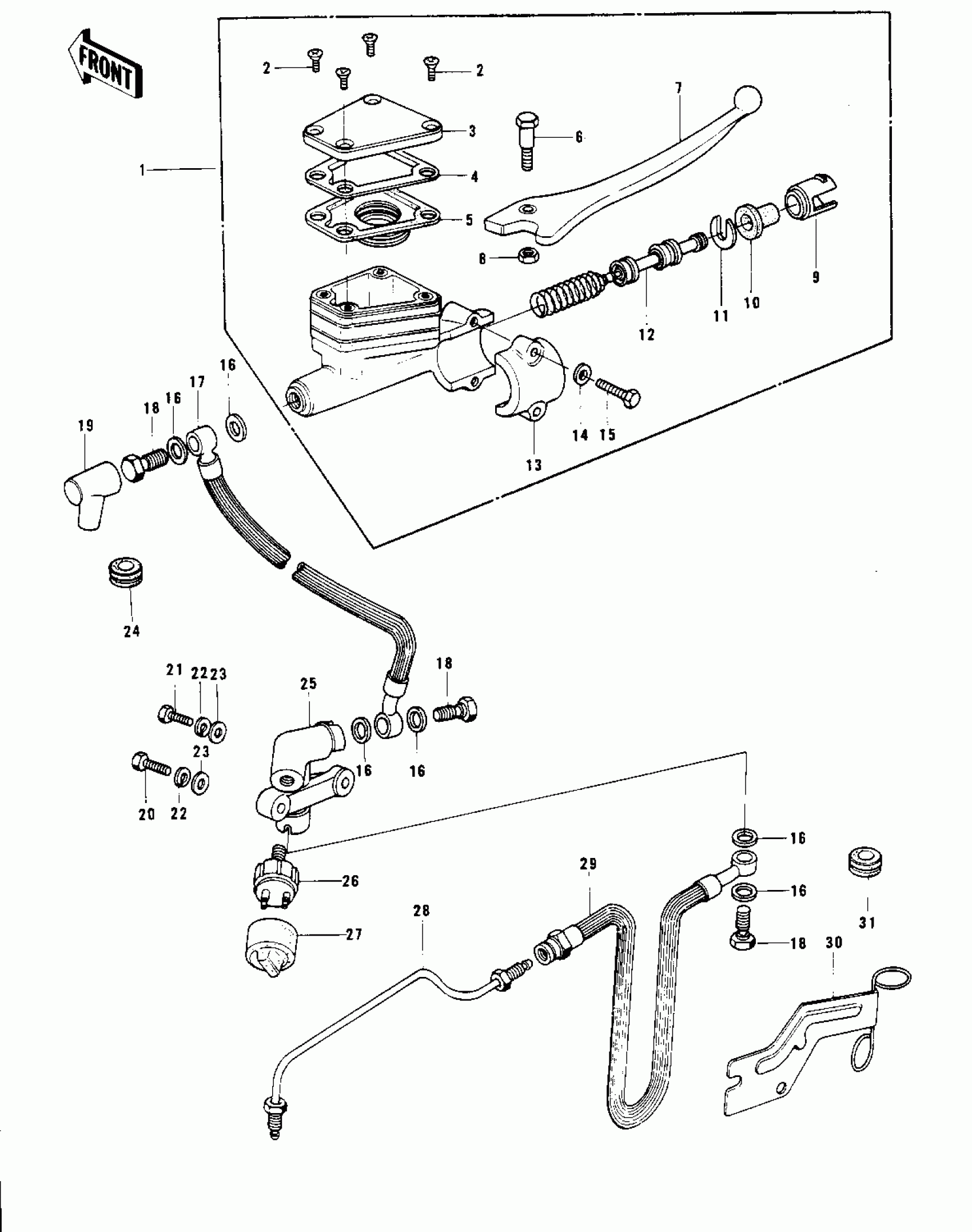

Kawasaki KH400-A4 FRONT MASTER CYLINDER (KH400-A5) Diagram
#
Description
Price
1
CYLINDER ASSY,MASTER
43015-1007
Unavailable
2
SCREW-CSK-CROS,5X12,BLACK
92001-1055
Unavailable
3
CAP,OIL CUP
43026-1003
Unavailable
4
PLATE,DIAPHRAGM
43027-1002
Unavailable
5
DIAPHRAGM
43028-1002
Unavailable
6
BOLT,FR BRAKE LEVER
92001-1056
Unavailable
7
LEVER,FRONT BRAKE
46092-1002
Unavailable
8
NUT 6MM
312B0600
Unavailable
9
LINER,PISTON
14008-1007
Unavailable
10
COVER-SEAL,BRAKE PISTON
49016-1010
Unavailable
11
STOPPER-BRAKE,PISTON
43022-1001
Unavailable
12
PISTON-COMP-BRAKE
43020-1026
Unavailable
13
HOLDER-BRAKE,MASTER CYLINDER
43034-1001
Unavailable
14
WASHER PLAIN 6MM
411B0600
Unavailable
15
BOLT HEX HEAD 6X25
110N0625
Unavailable
16
WASHER,10.5X15X1.5
43067-001
Unavailable
17
HOSE-FRONT BRAKE
43059-006
Unavailable
18
BOLT,OIL,L=23
92002-1888
Unavailable
19
BOOT,DUST
49006-1041
Unavailable
20
BOLT-HEX HEAD,6X32
110N0632
Unavailable
21
BOLT,6X22
110N0622
Unavailable
22
WASHER SPRING 6MM
461F0600
Unavailable
23
WASHER PLAIN 6MM
411B0600
Unavailable
24
DAMPER RUBBER
43064-005
Unavailable
25
JOINT,THREE WAY
43061-002
Unavailable
26
SWITCH-FRONT BRAKE
43065-001
Unavailable
27
RUBBER CAP,FRNT BRKE
92073-027
Unavailable
28
PIPE,BRIDGE
43060-016
Unavailable
29
HOSE-FRONT BRAKE
43059-008
Unavailable
30
BKT,BRAKE HOSE
43063-006
Unavailable
31
GROMMET-HOSE BRACKET
43064-001
Unavailable
