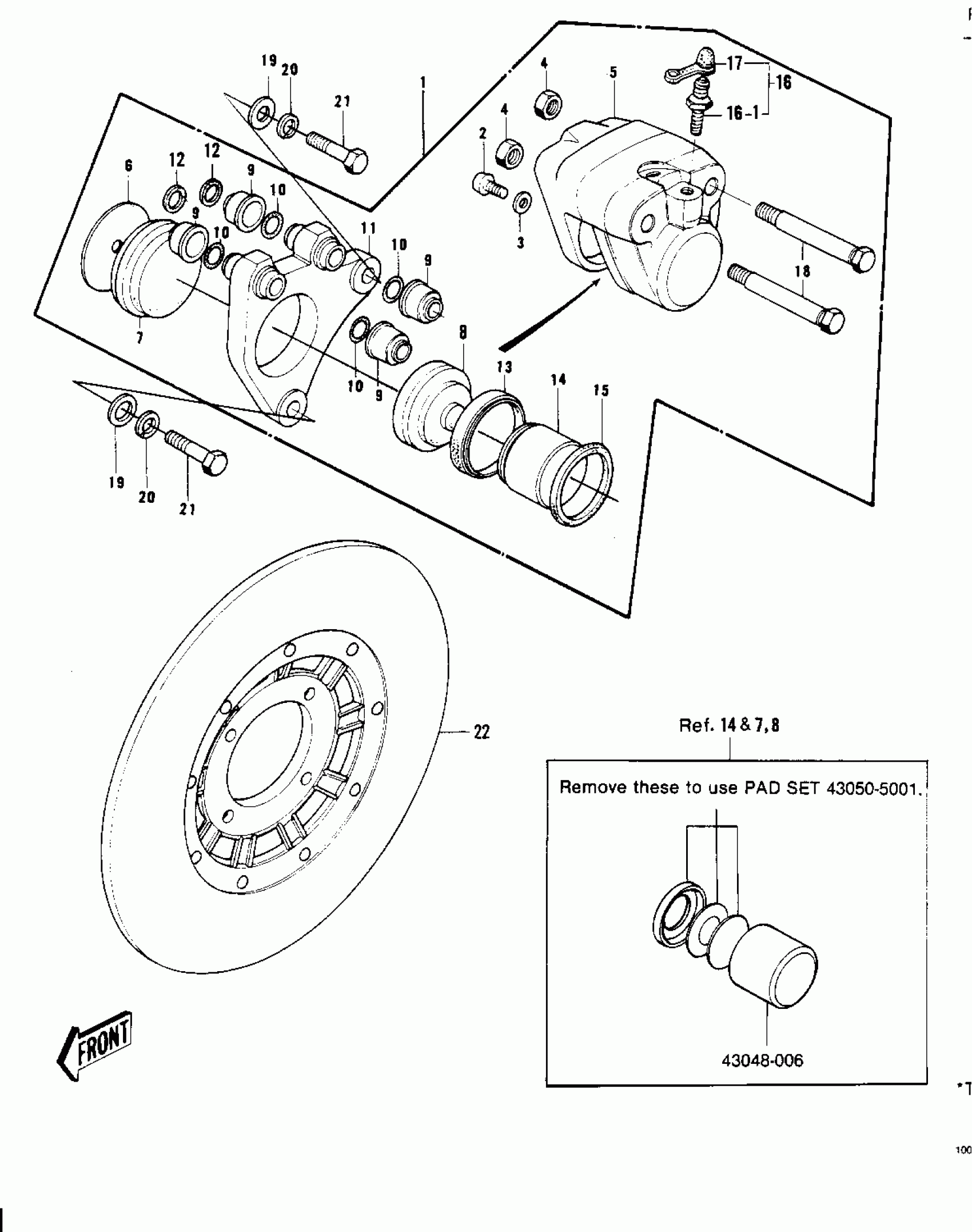

Kawasaki KH400-A4 FRONT BRAKE Diagram
#
Description
Price
1
CALIPER ASSY,FRONT
43041-030
Unavailable
1
CALIPER ASSY,FRONT
43041-030
Unavailable
2
SCREW PAN HEAD 6X12
220B0612
Unavailable
3
WASHER SPRING 6MM
461F0600
Unavailable
4
NUT-HEX-FINE,10MM
315B1000
Unavailable
5
CALIPER
43042-008
Unavailable
6
SPACER
43040-004
Unavailable
7
PAD B
43051-008
Unavailable
7
PAD B
43051-011
Unavailable
8
PAD A
43050-007
Unavailable
8
PAD A
43050-011
Unavailable
7,8
PAD SET,(FRONT)
43050-5001
Unavailable
9
DUST SHILD,SHAFT
43052-005
Unavailable
10
"0" RING
43053-006
Unavailable
11
HOLDER,CALIPER
43044-008
Unavailable
12
PLUG
43088-002
Unavailable
13
DUST SEALD,RUBBER
43054-003
Unavailable
14
PISTON,CALIPER
43048-006
Unavailable
14
PISTON,FRONT CALIPER
43048-009
Unavailable
15
PACKING,PISTON SEAL
43049-002
Unavailable
16
BLEEDER SET
43085-001
Unavailable
16-1
BREATHER
43056-003
Unavailable
17
CAP-BREATHER
43057-003
Unavailable
18
BOLT
43045-006
Unavailable
19
WASHER PLAIN 10MM
410B1000
Unavailable
20
WASHER SPRING 10MM
461F1000
Unavailable
21
BOLT
92007-032
Unavailable
22
DISC PLATE,FRONT BRAK
41080-006
Unavailable
