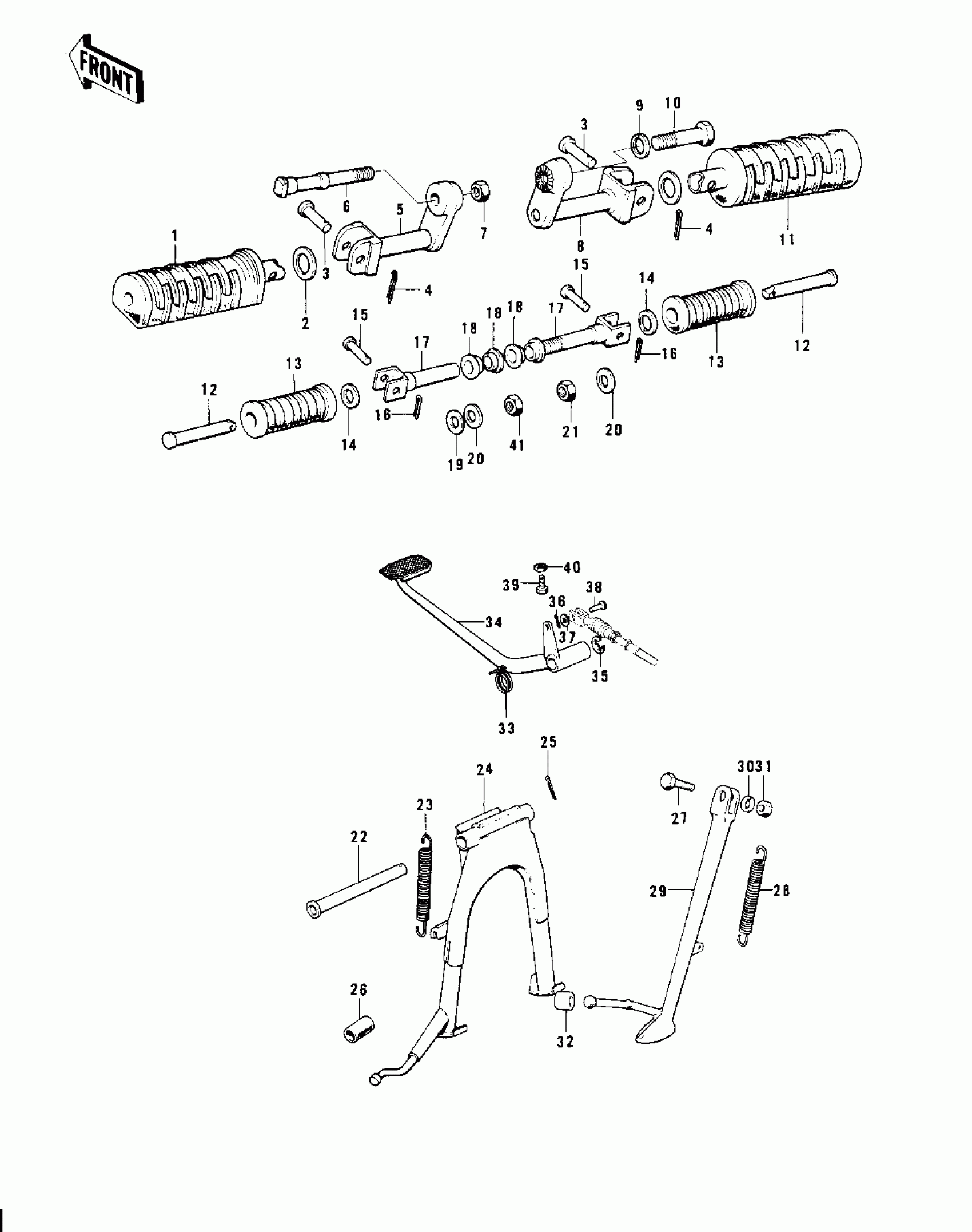

Kawasaki KH400-A4 FOOTRESTS/STANDS/BRAKE PEDAL Diagram
#
1
BAR-FOOTREST,L.H
34028-011
Unavailable
2
WASHER PL 22.5X36X2.3
92022-204
Unavailable
3
PIN,8X31
92043-080
Unavailable
4
PIN-COTTER,2.5X15
550D2515
Unavailable
5
HOLDER-FOTREST BAR LH
34003-040
Unavailable
6
BOLT-L.H FOOTREST FIT
92003-076
Unavailable
7
NUT-HEX-FINE
315B1200
Unavailable
8
HOLDER-FOTREST BAR RH
34003-041
Unavailable
9
WASHER-SPRING,12MM
461F1200
Unavailable
10
BOLT,R.H.FOOTREST FIT
92001-1068
Unavailable
11
BAR-FOOTREST,R.H
34028-012
Unavailable
12
STEP,RR
34028-009
Unavailable
13
RUBBER,REAR FOOTREST
92076-024
Unavailable
14
WASHER-PLAIN (OPT)
92022-199
Unavailable
15
PIN,6X28
92043-1464
Unavailable
16
PIN-COTTER,2.0X12
550D2012
Unavailable
17
BRACKET,REAR FOOTREST
34029-011
Unavailable
18
BUSHING,MUFFLER FITT
92092-010
Unavailable
19
WASHER-HANDLEBAR FIT
92022-196
Unavailable
20
WASHER-PLAIN,10MM
411B1000
Unavailable
21
NUT,LOCK,10MM
92019-021
Unavailable
22
SHAFT MAIN STAND
34019-011
Unavailable
23
SPRING-MAIN STAND
34023-010
Unavailable
24
STAND-MAIN
34011-035
Unavailable
25
PIN-COTTER,3.0X25
550D3025
Unavailable
26
DAMPER RUBB-MAIN STND
92075-115
Unavailable
27
BOLT,SIDE STAND
92003-079
Unavailable
28
SPRING MAIN STAND
34023-005
Unavailable
29
STAND-SIDE
34024-051
Unavailable
30
WASHER SPRING 10MM
461F1000
Unavailable
31
NUT-HEX-FINE,10MM
314B1000
Unavailable
32
DAMPER RUBB SIDE STND
92075-031
Unavailable
33
SPRING,BRAKE PEDAL
43005-033
Unavailable
34
PEDAL,BRAKE
43001-060
Unavailable
35
CIRCLIP 12MM
482K0200
Unavailable
36
PIN COTTER 2.0X15
550D2015
Unavailable
37
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
38
PIN R BRK CABLE JOINT
92043-034
Unavailable
39
BOLT 6X22
112B0622
Unavailable
40
NUT 6MM
311B0600
Unavailable
41
NUT,10MM
92015-1429
Unavailable
