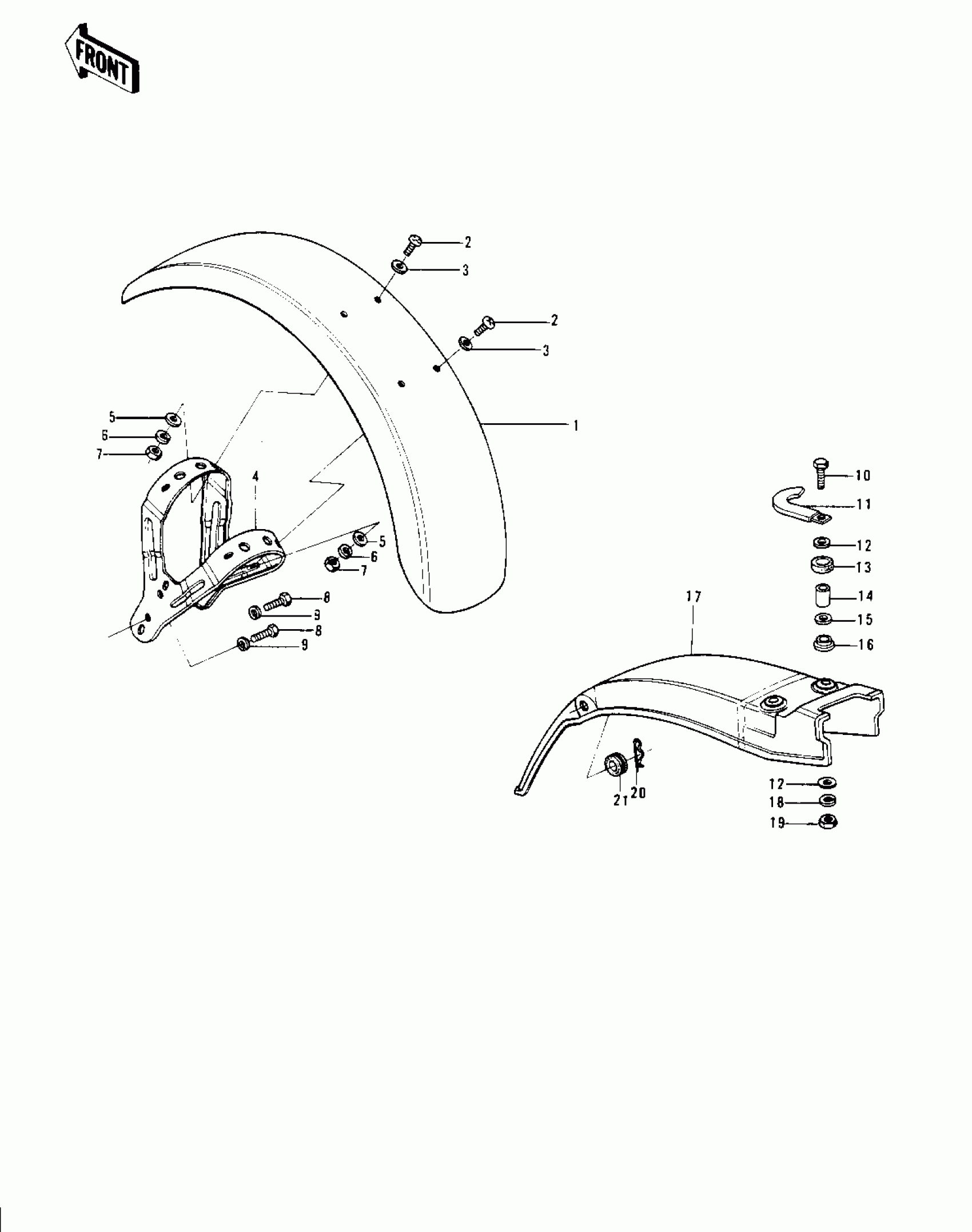

Kawasaki KH400-A4 FENDERS Diagram
#
Description
Price
1
FENDER-FR
35004-084
Unavailable
2
SCREW PAN HEAD 6X14
220E0614
Unavailable
3
WASHER-PLAIN,6MM
411D0600
Unavailable
4
BRACE,FRONT FENDER
35009-028
Unavailable
5
WASHER PLAIN 6MM
411B0600
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
NUT 6MM
311B0600
Unavailable
7
NUT 6MM
311B0600
Unavailable
8
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
8
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
BOLT 6X35
110R0635
Unavailable
10
BOLT 6X35
110R0635
Unavailable
11
CLAMP
92037-113
Unavailable
12
WASHER,7X24X1.6
92022-228
Unavailable
13
DAMPER,FENDER
92075-121
Unavailable
14
COLLAR,6.8X10X12
92027-162
Unavailable
14
COLLAR
92027-241
Unavailable
15
WASHER,7X27X1.6
92022-227
Unavailable
16
DAMPER RUBBER,RR FEND
92075-133
Unavailable
17
FENDER-RR
35022-099
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
NUT 6MM
311B0600
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
COTTER PIN
92041-003
Unavailable
21
DAMPER RUBBER
92075-105
Unavailable
