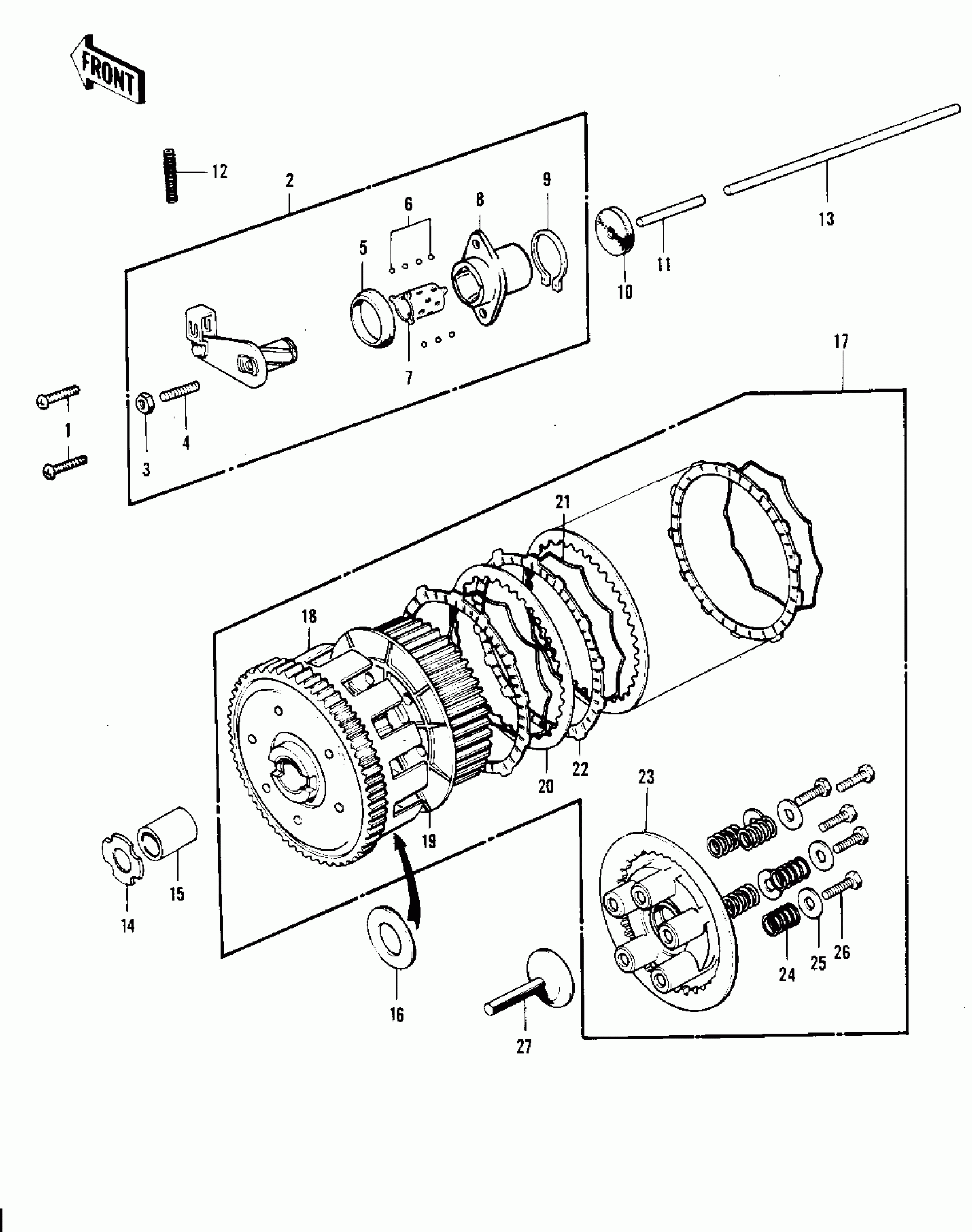

Kawasaki KH400-A4 CLUTCH ('76-'78 A3/A4/A5) Diagram
#
Description
Price
1
SCREW-PAN-CROS,6X16
220B0616
Unavailable
2
RELEASE ASSY,CLUTCH
13231-1001
Unavailable
2
RELEASE ASSY,CLUTCH
13231-1001
Unavailable
3
NUT 6MM
311B0600
Unavailable
4
SCREW SLOTTED
291Z0625
Unavailable
5
OIL SEAL
92056-007
Unavailable
6
BALL,STEEL,1/8"
600A0400
Unavailable
7
RETAINER
13197-006
Unavailable
8
OUTER,CLUTCH RELEASE
13118-015
Unavailable
9
CIRCLIP-TYPE-C,15MM
480J1500
Unavailable
10
OIL SEAL TC7297
92050-040
Unavailable
11
ROD CLUTCH PUSH SHORT
13116-010
Unavailable
12
SPRING,CLUTCH RELEASE
92081-096
Unavailable
13
ROD-CLUTCH PUSH,LONG
13116-019
Unavailable
14
WASHER THRUST
92022-119
Unavailable
15
BUSH CLUTCH
92028-045
Unavailable
16
WASHER-PLAIN,20MM
92022-189
Unavailable
17
CLUTCH-ASSY
13081-1070
Unavailable
17
CLUTCH-ASSY
13081-1070
Unavailable
17
CLUTCH-ASSY
13081-1070
Unavailable
18
HOUSING-COMP-CLUTCH
13095-1040
Unavailable
18
HOUSING-COMP-CLUTCH
13095-1040
Unavailable
19
HUB,CLUTCH
13087-036
Unavailable
20
PLATE CLUTCH STEEL
13089-003
Unavailable
21
RING-CLUTCH STEEL
13229-002
Unavailable
22
PLATE-FRICTION
13088-1015
Unavailable
23
PLATE-CLUTCH SPRING
13187-004
Unavailable
24
SPRING-CLUTCH
92081-095
Unavailable
25
WASHER-PLAIN,5MM
92022-167
Unavailable
26
BOLT,5X18
92003-078
Unavailable
27
PUSHER-CLTCH SPRG PLT
13116-016
Unavailable
