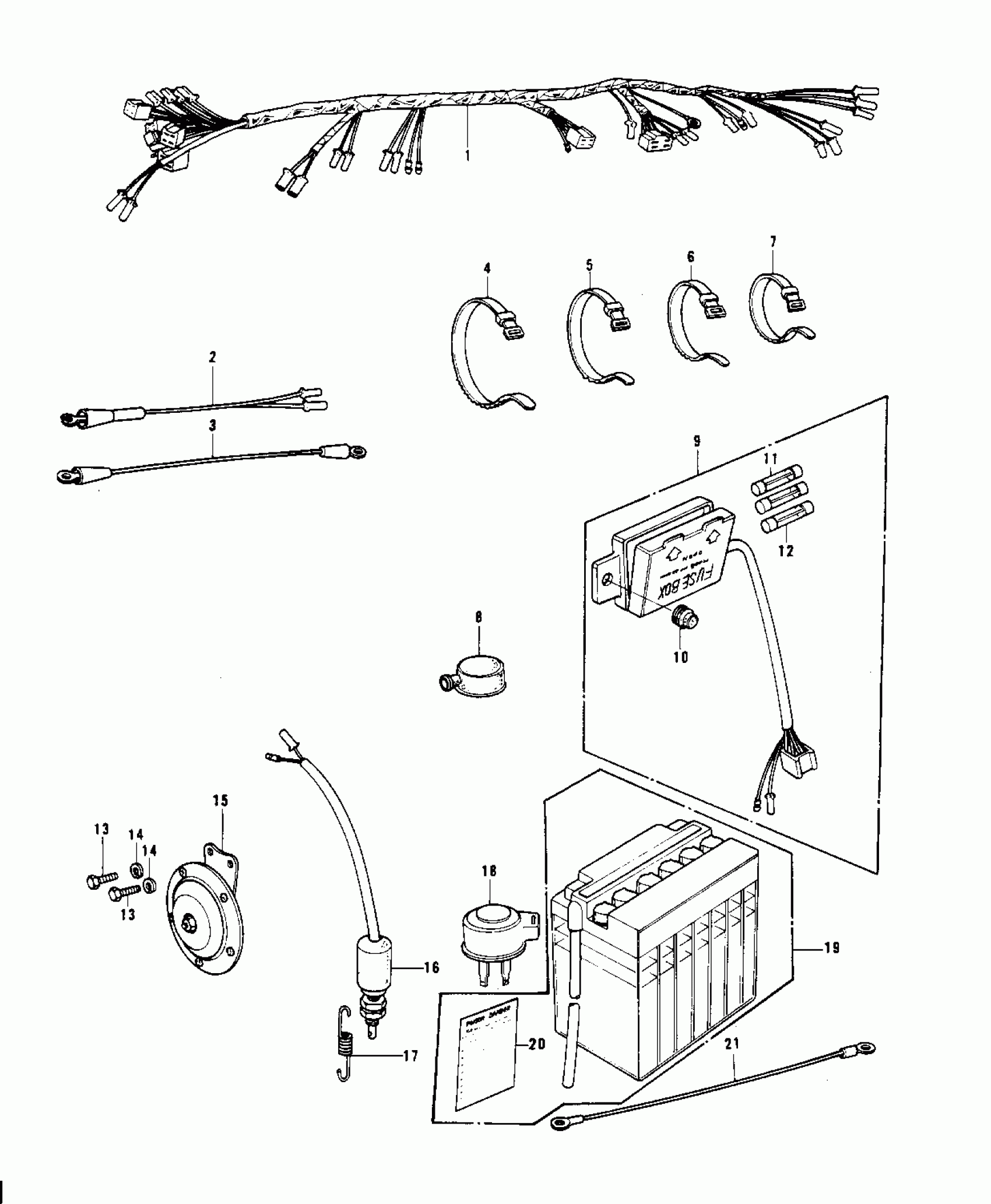

Kawasaki KH400-A4 CHASSIS ELECTRICAL EQUIPMENT Diagram
#
Description
Price
1
WIRING HARNESS,MAIN
26001-132
Unavailable
2
WIRE,BATTERY LEAD
26010-033
Unavailable
3
WIRE BATTERY GROUND
26010-017
Unavailable
4
BAND,L=218
92072-032
Unavailable
5
BAND,L=186
92072-056
Unavailable
6
BAND,L=149
92072-031
Unavailable
7
BAND,L=123
92072-030
Unavailable
8
CAP BAT TERMINAL RUBB
92073-001
Unavailable
9
FUSE-ASSY
26004-035
Unavailable
10
DAMPER,FUSE
92075-279
Unavailable
11
FUSE,20A,L=25
26006-005
Unavailable
12
FUSE,10A,L=25
26006-003
Unavailable
13
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
13
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
14
WASHER SPRING 8MM
461F0800
Unavailable
15
HORN
27003-066
Unavailable
16
SWITCH-BRAKE LAMP
27010-015
Unavailable
17
SPRING-BRAKE LAMP SW
27011-013
Unavailable
18
RELAY-ASSY,TURN SIGNAL
27002-011
Unavailable
19
FB BAT 12N5.5-4A
26012-022
Unavailable
20
LABEL-WARNING,BATTERY
56040-1036
Unavailable
21
WIRE-LEAD
26011-084
Unavailable
