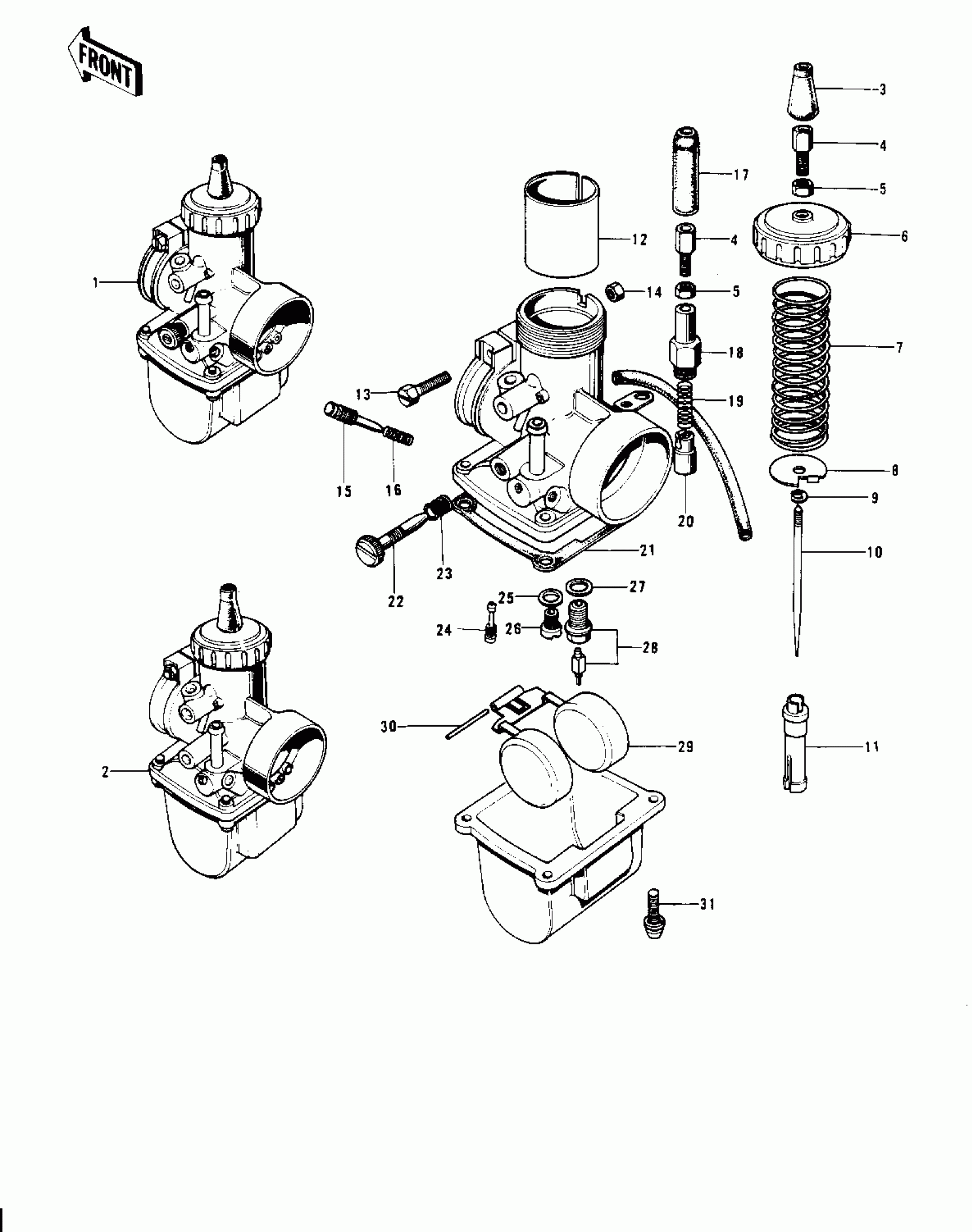

Kawasaki KH400-A4 CARBURETORS Diagram
#
1
CARBURETOR ASSY,L.H
16001-253
Unavailable
2
CARBURETOR ASSY,CE&RH
16001-254
Unavailable
3
BOOT,CABLE ADJUSTER
16036-007
Unavailable
4
CABLE ADJUSTER
16002-004
Unavailable
5
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
6
CAP-CHAMBER
16004-025
Unavailable
7
SPRING,THROTTLE VALV
16006-024
Unavailable
8
SEAT-SPRING,THROTTLE VALVE
16007-023
Unavailable
9
CLAMP,E-TYPE
16008-010
Unavailable
10
JET NEEDLE 4EJ4
16009-047
Unavailable
11
NEEDLE JET,0-6
16017-092
Unavailable
12
VALVE,THROTTLE,L.H
16025-081
Unavailable
12
VALVE,THROTTLE,RH&CEN
16025-082
Unavailable
13
SCREW,CLAMP
16010-004
Unavailable
14
NUT 6MM
311B0600
Unavailable
15
SCREW
16014-006
Unavailable
16
SPRING,PILOT AIR SCREW
16022-007
Unavailable
17
CAP CABLE ADJUST RUBB
16036-005
Unavailable
18
CAP STARTER PLUNGER
16012-008
Unavailable
19
SPRING-PLUNGER
16013-003
Unavailable
20
PLUNGER,STARTER
16016-002
Unavailable
21
GASKET FLOAT CHAMBER
16019-013
Unavailable
22
SCREW-THROTTLE STOP
16021-013
Unavailable
23
SPRING,THROTTLE STOP SCREW
16022-005
Unavailable
24
JET-PILOT,#20
92064-021
Unavailable
25
WASHER,MAIN JET
16034-001
Unavailable
26
JET-MAIN,#A77.5R
92063-1032
Unavailable
26
MAIN JET NO 72.5R
92063-108
Unavailable
26
JET-MAIN,#75R
92063-109
Unavailable
26
JET-MAIN,#A80R
92063-1030
Unavailable
26
JET-MAIN,#82.5R
92063-124
Unavailable
27
WASHER FLOAT VLV SEAT
16029-004
Unavailable
28
VALVE-FLOAT,2.5
16030-005
Unavailable
29
FLOAT
16031-016
Unavailable
30
PIN,FLOAT
16032-003
Unavailable
31
SCREW FLOAT CHAMBER
16033-009
Unavailable
