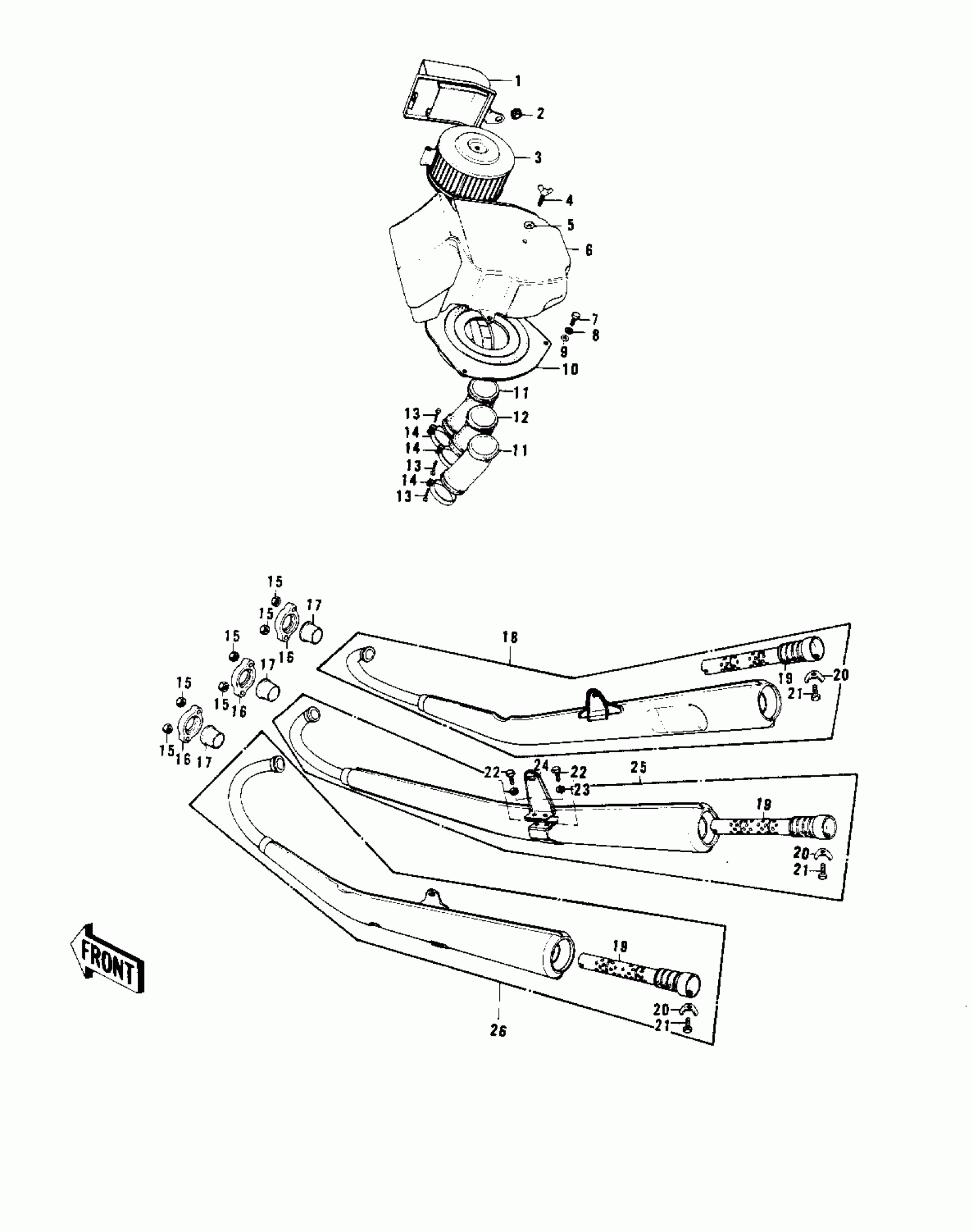

Kawasaki KH400-A4 AIR CLEANERS/MUFFLERS Diagram
#
Description
Price
1
CAP,AIR CLEANER
11012-056
Unavailable
2
GROMMET
92071-056
Unavailable
3
ELEMENT,AIR CLNR
11013-052
Unavailable
4
BOLT,CLNR ELEMENT
92003-199
Unavailable
5
WASHER-PLAIN
92022-021
Unavailable
6
BODY,AIR CLEANER
11011-051
Unavailable
7
BOLT-UPSET,6X20
112G0620
Unavailable
8
WASHER SPRING 6MM
461F0600
Unavailable
9
WASHER PLAIN 6MM
411B0600
Unavailable
10
BODY,AIR CLEANER
11011-052
Unavailable
11
PIPE-AIR INLT,R.H&L.H
11015-024
Unavailable
12
PIPE-AIR INLET,CENTER
11015-025
Unavailable
13
SCREW-PAN-CROS,6X35,B
220C0635
Unavailable
14
CLAMP
92037-1326
Unavailable
15
NUT,LOCK,8MM
92017-013
Unavailable
16
HOLDER,EXHAUST PIPE
18069-054
Unavailable
17
INSERT,EXH PIPE HLDR
18070-011
Unavailable
18
MUFFLER ASSY,R.H.
18001-209
Unavailable
18
MUFFLER ASSY,R.H.
18001-209
Unavailable
19
BAFFLE TUBE
18033-097
Unavailable
20
WASHER LOCK 6MM
92024-016
Unavailable
21
BOLT-UPSET,6X12
112G0612
Unavailable
22
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
23
WASHER SPRING 8MM
461F0800
Unavailable
24
BRACKET,MUFFLER
18061-042
Unavailable
25
MUFFLER ASSY,CENTER
18001-208
Unavailable
25
MUFFLER ASSY,CENTER
18001-208
Unavailable
26
MUFFLER ASSY,L.H.
18001-207
Unavailable
26
MUFFLER ASSY,L.H.
18001-207
Unavailable
