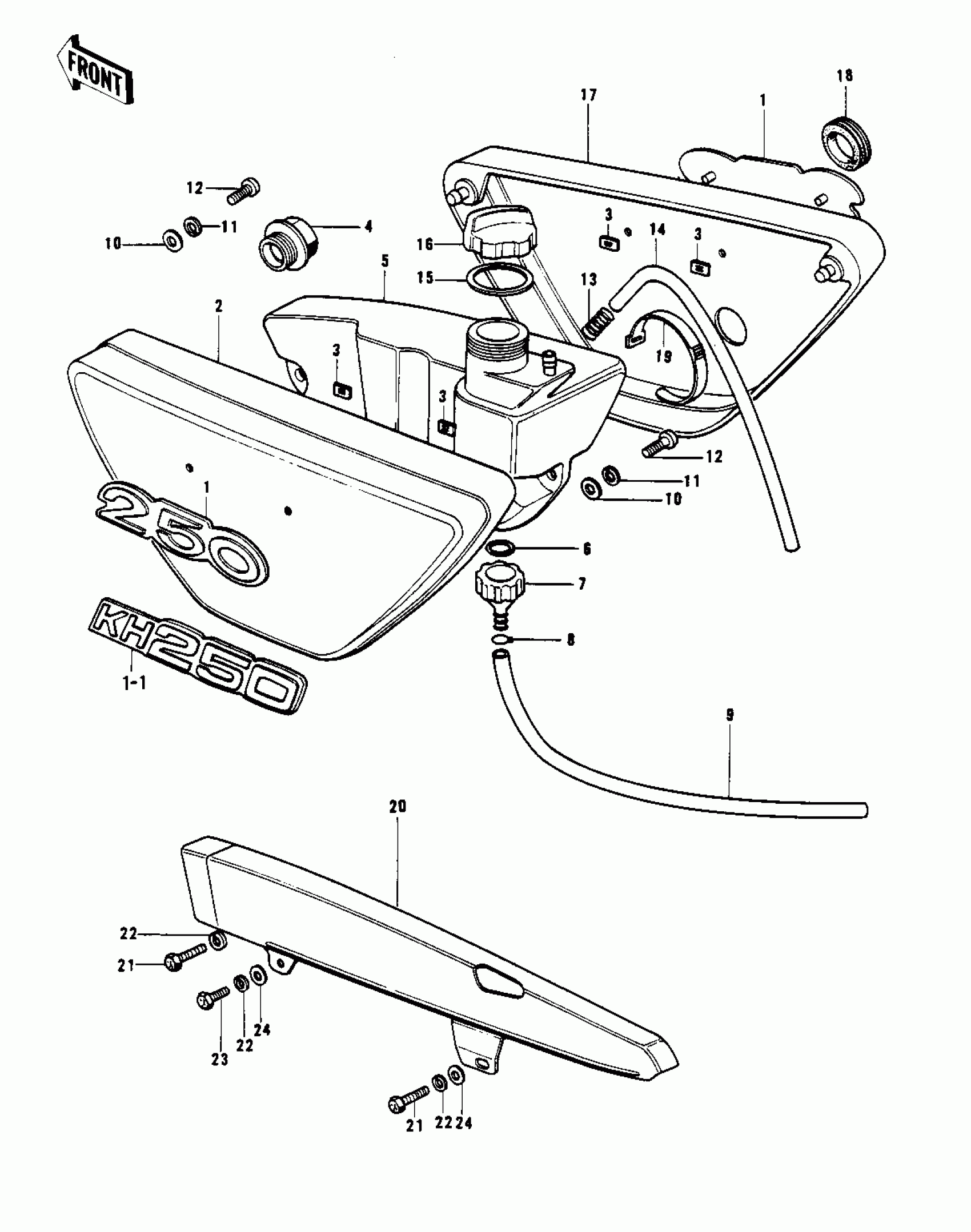

Kawasaki KH250-A5 SIDE COVERS/OIL TANK/CHAIN COVER (S1-B/C Diagram
#
Description
Price
1
EMBLEM,SIDE COVER
56018-163
Unavailable
1
EMBLEM,SIDE COVER
56018-192
Unavailable
1-1
EMBLEM,SIDE COVER
56018-211
Unavailable
2
COVER,L.H SIDE,C.GREN
36001-043-1Z
Unavailable
2
COVER,L.H SIDE,BLUE
36001-043-2L
Unavailable
2
COVER,L.H SIDE,C.RED
36001-043-3R
Unavailable
3
NUT,PUSH,3MM
92018-005
Unavailable
4
GAUGE-OIL LEVEL
52015-005
Unavailable
5
TANK,OIL
52001-040
Unavailable
6
O RING,15MM
670B2015
Unavailable
7
FILTER-OIL
52020-001
Unavailable
8
CLAMP,TUBE
92037-010
Unavailable
9
PIPE-OIL
92059-072
Unavailable
10
WASHER PLAIN 6MM
411B0600
Unavailable
11
WASHER SPRING 6MM
461F0600
Unavailable
12
BOLT-UPSET 6X14
112B0614
Unavailable
13
CLAMP,OIL TANK BREATR
92037-141
Unavailable
14
TUBE-PVC,5X600
700Q05600
Unavailable
14
TUBE-VINYL 5X720
700Q05720
Unavailable
15
GASKET-OIL TANK CAP
92065-085
Unavailable
16
CAP-OIL TANK
52003-019
Unavailable
17
COVER,RH SIDE,C.GREEN
36007-037-1Z
Unavailable
17
COVER,RH SIDE,BLUE
36007-037-2L
Unavailable
17
COVER,RH SIDE,C.RED
36007-037-3R
Unavailable
18
GROMMET-R.H SIDE COV
92071-065
Unavailable
19
BAND,L=149
92072-031
Unavailable
20
CASE-CHAIN,FR BLACK
36014-050-21
Unavailable
21
BOLT,HEX HEAD,6X14
92001-121
Unavailable
22
WASHER SPRING 6MM
461F0600
Unavailable
23
BOLT,6X10
92001-137
Unavailable
24
WASHER,6.5X20X1.6,WHITE
92022-193
Unavailable
