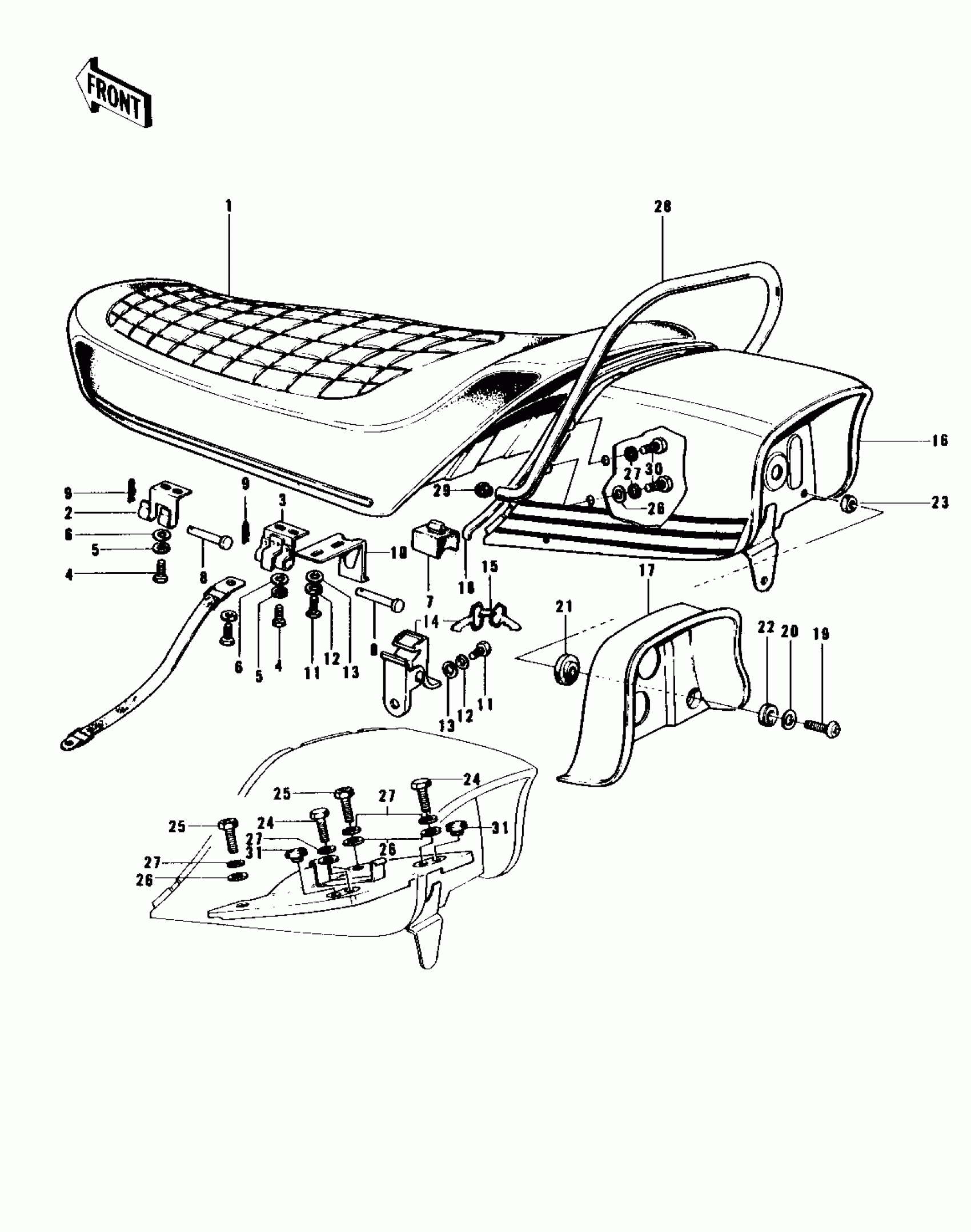

Kawasaki KH250-A5 SEAT/SEAT COVER (S1-A) Diagram
#
Description
Price
1
SEAT-ASSY,DUAL
53001-078
Unavailable
2
HINGE,BLACK
53009-017-10
Unavailable
3
HINGE-SEAT
53009-021
Unavailable
4
BOLT-UPSET 6X14
112B0614
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
WASHER PLAIN 6MM
411B0600
Unavailable
7
DAMPER RUBBER-SEAT
92075-156
Unavailable
8
PIN,6X48
53011-002
Unavailable
9
COTTER PIN
92041-003
Unavailable
10
HOOK
53008-011
Unavailable
11
BOLT-UPSET 6X14
112B0614
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
WASHER PLAIN 6MM
411B0600
Unavailable
14
HOOK ASSY
53045-003
Unavailable
15
KEY SET,#265
27018-016-65
Unavailable
15
KEY SET,#279
27018-016-79
Unavailable
16
BACK REST,C.ORANGE
53043-005-91
Unavailable
16
BACK REST,C.BLUE
53043-005-93
Unavailable
16
BACK REST,C.GOLD
53043-005-94
Unavailable
17
COVER-BACK REST
53057-001
Unavailable
18
MOLE-FRONT
53044-003
Unavailable
19
SCREW-PAN HEAD,6X30
92011-030
Unavailable
20
WASHER-PLAIN,7MM
92022-240
Unavailable
21
DAMPER RUBBER
92075-169
Unavailable
22
DAMPER RUBBER
92075-168
Unavailable
23
NUT 6MM
311B0600
Unavailable
24
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
25
BOLT-BACK REST FITT
92001-122
Unavailable
26
WASHER PLAIN 8MM
411B0800
Unavailable
27
WASHER SPRING 8MM
461F0800
Unavailable
28
GRIP-SEAT
53042-005
Unavailable
29
PLUG-SEAT GRIP
32112-005
Unavailable
30
BOLT SMALL
114G0812
Unavailable
31
PLUG
92068-007
Unavailable
