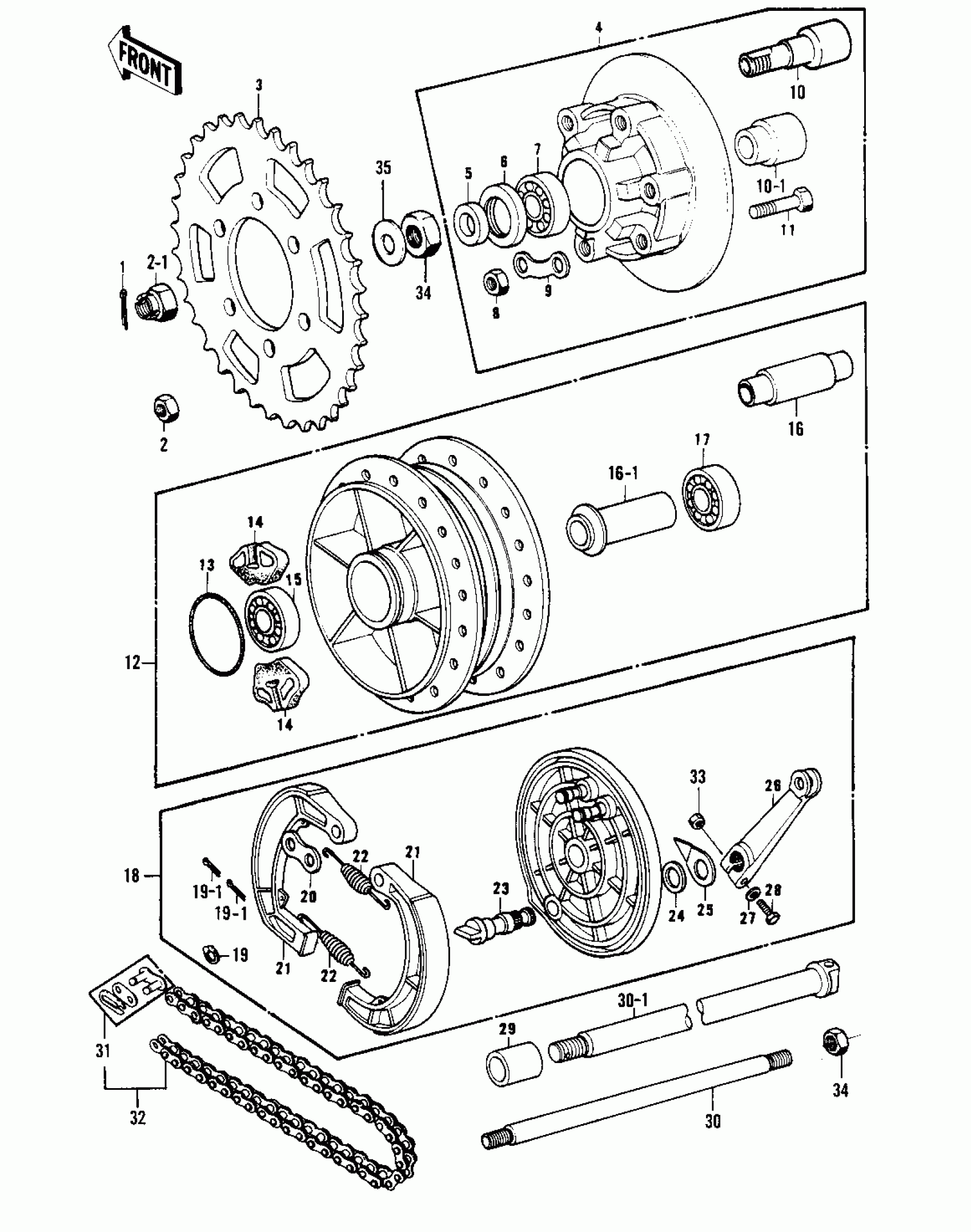

Kawasaki KH250-A5 REAR HUB/BRAKE/CHAIN Diagram
#
1
PIN-COTTER,4.0X35
550D4035
Unavailable
2
NUT,16MM
314B1600
Unavailable
2-1
NUT,16MM
92015-055
Unavailable
3
REAR SPROCKET,48T
42041-115
Unavailable
3
REAR SPROCKET,46T
42041-103
Unavailable
4
COUPLING ASSY,RR HUB
42008-012
Unavailable
4
COUPLING ASSY,RR BRK
42008-020
Unavailable
5
COLLER RR AXLE SLEEVE
42037-006
Unavailable
5
COLLAR,REAR AXLE
42037-024
Unavailable
6
SEAL-OIL,TWC35527
92052-006
Unavailable
7
BEARING-BALL,#6205C3
601B6205
Unavailable
8
NUT-HEX-FINE,10MM
314B1000
Unavailable
9
WASHER,SPROCKET LOCK
92088-005
Unavailable
10
SLEEVE REAR AXLE
42036-006
Unavailable
10-1
SLEEVE,REAR AXLE
42036-019
Unavailable
11
BOLT-REAR SPROCKET
92003-087
Unavailable
12
DRUM ASSY REAR BRAKE
42005-009
Unavailable
12
DRUM ASY,RR BK,BUFF
42005-044-80
Unavailable
13
O RING,60MM
671B2560
Unavailable
14
DAMPER REAR HUB SHOCK
42014-008
Unavailable
15
BEARING-BALL,#6205C3
601B6205
Unavailable
15
BEARING-BALL,#6303C3
601B6303
Unavailable
16
SPACER RR HUB BEARING
42010-008
Unavailable
16-1
SPACER,RR HUB BEARING
42010-027
Unavailable
17
BEARING BALL #6205Z
601B6205Z
Unavailable
17
BEARING BALL #6303Z
601B6303Z
Unavailable
18
PANEL-ASY,RR BRK,BUFF
42006-007-80
Unavailable
18
PANEL-ASY,RR BRK
42006-060-80
Unavailable
18
PANEL-ASY,RR BRK
42006-060-80
Unavailable
19
CIRCLIP-TYPE-C,14MM
480J1400
Unavailable
19-1
PIN COTTER 2.0X25
550D2025
Unavailable
20
WASHER,BRAKE SHOE
41045-007
Unavailable
20
WASHER,BRAKE SHOE
41045-007
Unavailable
21
SHOE REAR BRAKE
42019-003
Unavailable
22
SPRING BRAKE SHOE
41049-003
Unavailable
23
UNAVAILABLE IN PRICE BOOK
42046-015
Unavailable
24
SEAL,BRAKE CAM
41051-001
Unavailable
25
INDICATOR,BRAKE PANEL
41085-009
Unavailable
26
LEVER,REAR BRAKE CAM
42029-037
Unavailable
27
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
28
BOLT-UPSET,6X40
112G0640
Unavailable
28
BOLT-UPSET
112G0625
Unavailable
29
COLLAR REAR HUB R.H
42032-008
Unavailable
29
COLLAR,REAR AXLE
42032-049
Unavailable
30
AXLE-REAR
42031-033
Unavailable
30-1
AXLE,REAR
42031-047
Unavailable
31
CHAIN JOINT 525
92058-006
Unavailable
32
DR CHAIN 525X102
92057-028
Unavailable
32
DR CHAIN 525X104
92057-084
Unavailable
33
NUT 6MM
311B0600
Unavailable
34
NUT,16MM
314B1600
Unavailable
35
WASHER,17.3X32X3.2
42046-009
Unavailable
36
NUT SLEEVE
42045-006
Unavailable
