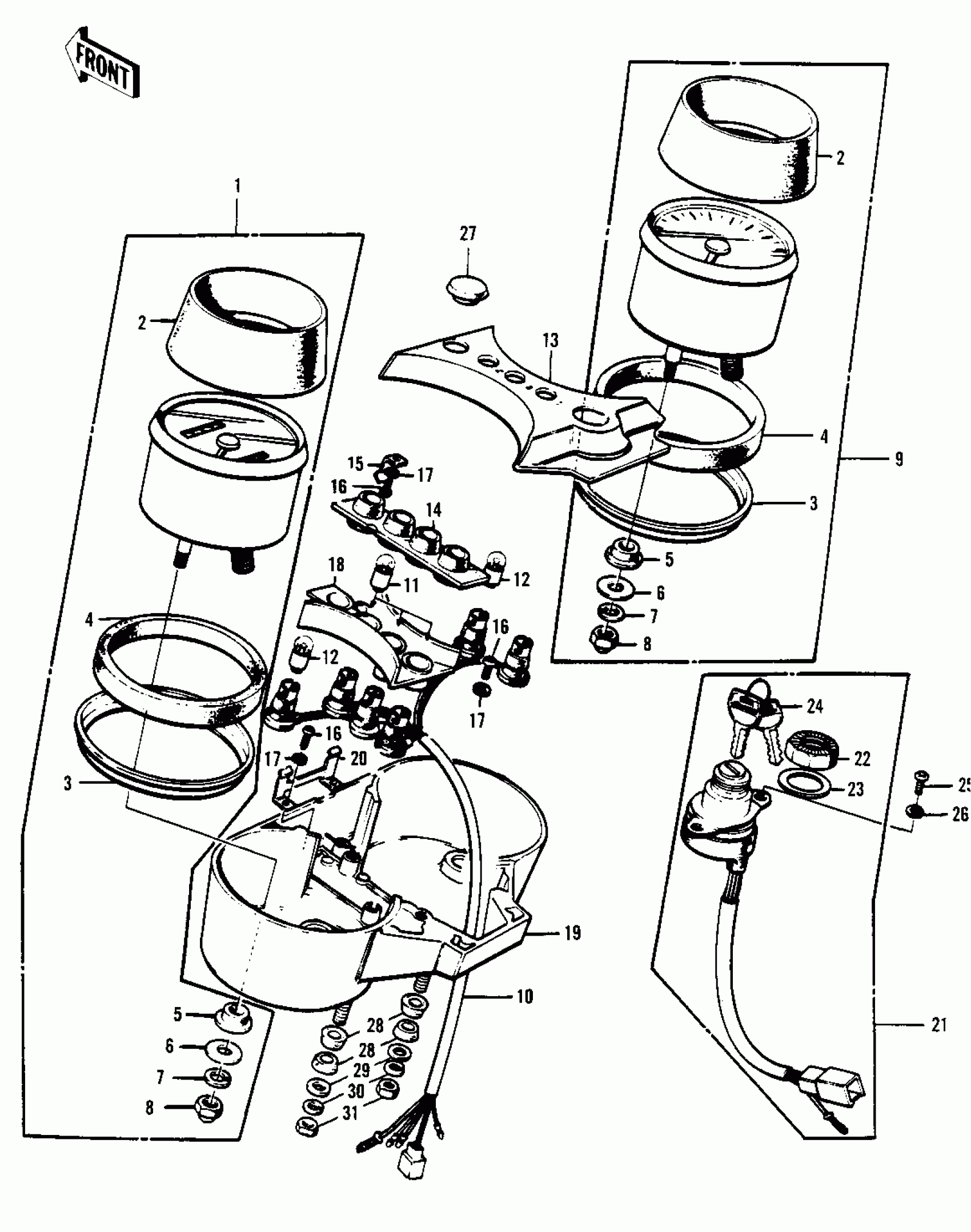

Kawasaki KH250-A5 METERS/IGNITION SWITCH Diagram
#
1
SPEEDOMETER ASSY,MPH
25005-124
Unavailable
1
SPEEDOMETER ASSY,MPH
25005-124
Unavailable
1
SPEEDO ASSY,KPH (Canada)
25005-076
Unavailable
2
COVER-METER
25012-012
Unavailable
3
RING-METER
25026-001
Unavailable
4
DAMPER RUBBER-METER
25019-015
Unavailable
5
DAMPER,METER
25019-013
Unavailable
6
WASHER-PLAIN,5MM
411B0500
Unavailable
7
WASHER SPRING 5MM
461F0500
Unavailable
8
NUT,5MM
92015-059
Unavailable
9
TACHOMETER ASSY
25016-020
Unavailable
10
SOCKET-METER
25011-029
Unavailable
10
SOCKET,SPEEDOMETER
25011-030
Unavailable
11
BULB 12V 1.5W
92069-017
Unavailable
12
BULB 12V 3W
92069-018
Unavailable
13
COVER-METER CASE
25023-002
Unavailable
13
COVER,METER CASE
25023-009
Unavailable
14
DAMPER RUBBER-METER
25019-014
Unavailable
15
HOLDER-METER CASE COV
25014-004
Unavailable
16
SCREW PAN HEAD 4X8
220B0408
Unavailable
17
WASHER SPRING 4MM
461F0400
Unavailable
18
COVER-METER SOCKET
25023-003
Unavailable
19
CASE-METER
25008-026
Unavailable
20
HOLDER-METER CASE
25014-003
Unavailable
21
SWITCH-ASSY
27005-1021
Unavailable
21
SWITCH-ASSY
27005-1021
Unavailable
22
NUT-IGNITION SWITCH
27007-003
Unavailable
23
WASHER-IGNITION
27019-002
Unavailable
24
KEY SET, #186
27008-048-86
Unavailable
24
KEY SET,#190
27008-048-90
Unavailable
24
KEY SET,#901
27008-055-01
Unavailable
24
KEY SET,#910
27008-055-10
Unavailable
24
KEY-LOCK,BLANK
27008-1024
Unavailable
24
KEY-LOCK,BLANK
27008-1025
Unavailable
25
SCREW PAN HEAD 5X8
220B0508
Unavailable
26
WASHER SPRING 5MM
461F0500
Unavailable
27
PLUG,RUBBER
92074-032
Unavailable
28
DAMPER RUBBER
92075-080
Unavailable
29
WASHER PLAIN 8MM
411B0800
Unavailable
30
WASHER SPRING 8MM
461F0800
Unavailable
31
NUT,8MM
311B0800
Unavailable
