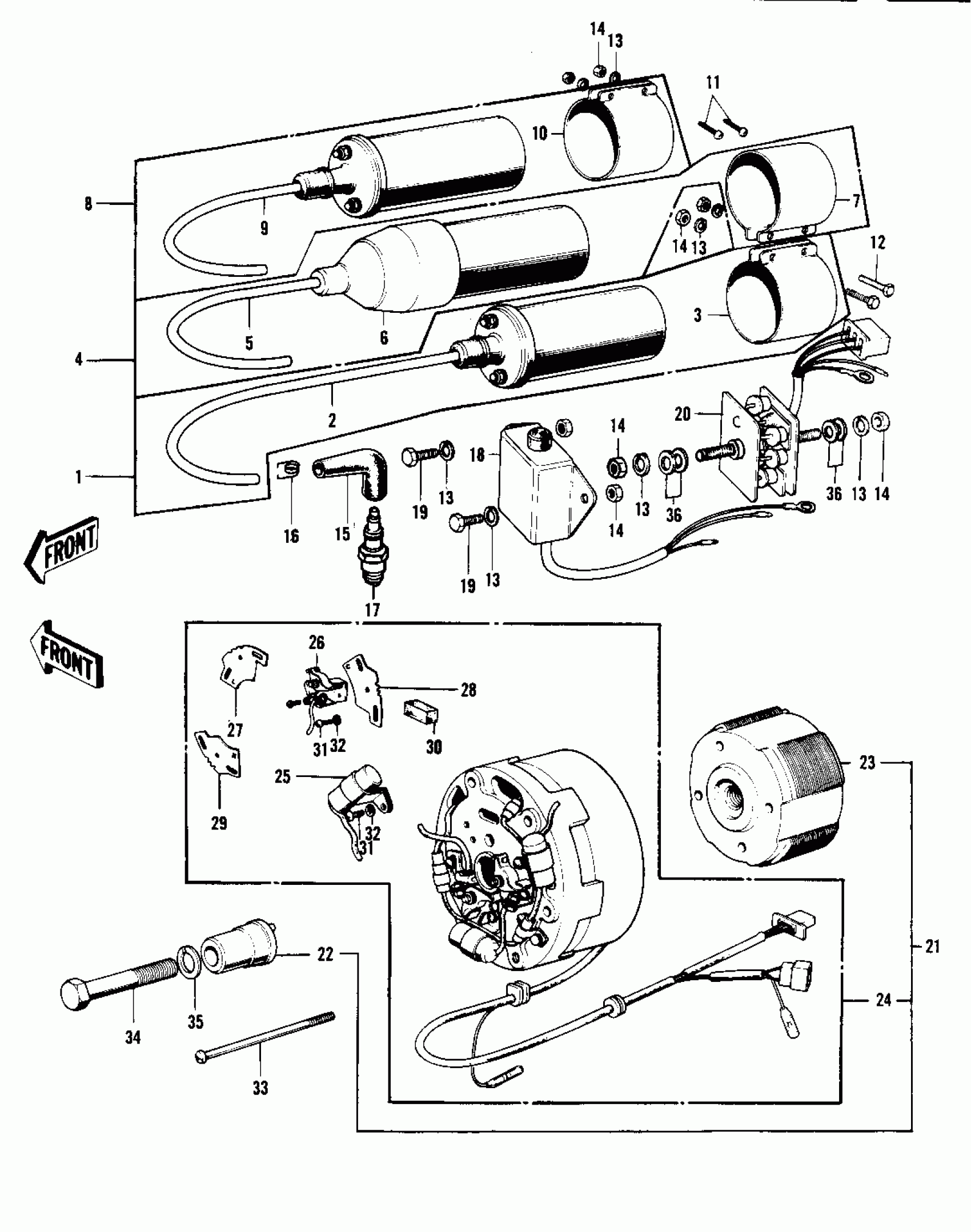

Kawasaki KH250-A5 IGNITION/GENERATOR/REGULATOR Diagram
#
1
COIL-IGNITION,L.H
21121-051
Unavailable
2
CORD-HIGH TENSION,L.H
21133-020
Unavailable
3
BAND-IGNITION COIL
21126-004
Unavailable
4
COIL-IGNITION,CENTER
21121-052
Unavailable
5
CORD-HIGH TENSION,CNT
21133-021
Unavailable
6
RUBBER CAP,IGN COIL
92073-018
Unavailable
7
BAND-IGNITION COIL
21126-004
Unavailable
8
COIL-IGNITION,R.H
21121-053
Unavailable
9
CORD-HIGH TENSION,R.H
21133-022
Unavailable
10
BAND-IGNITION COIL
21126-004
Unavailable
11
SCREW PAN HEAD 6X40
220B0640
Unavailable
11
BOLT-UPSET,6X40
112G0640
Unavailable
12
BOLT-UPSET,6X20
112G0620
Unavailable
13
WASHER SPRING 6MM
461F0600
Unavailable
14
NUT 6MM
311B0600
Unavailable
15
CAP-SPARK PLUG
21130-009
Unavailable
16
TERMINAL,SPARK PLUG CAP
92101-001
Unavailable
17
UNAVAILABLE IN PRICE BOOK
92070-011A
Unavailable
17
SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe
B9HS
Unavailable
18
REGULATOR,VOLTAGE
21066-020
Unavailable
19
BOLT-UPSET,6X12
112G0612
Unavailable
20
RECTIFIER
21061-011
Unavailable
20
RECTIFIER
21061-029
Unavailable
20
RECTIFIER
21061-029
Unavailable
21
ALTERNATOR
21001-022
Unavailable
22
CAM
21014-008
Unavailable
23
ROTOR
21007-020
Unavailable
24
STATOR ASSY
21003-016
Unavailable
25
CONDENSER
21013-026
Unavailable
26
BREAKER-CONTACT
21008-019
Unavailable
27
PLATE-CNTCT BRKER,L.H
21156-003
Unavailable
28
PLATE-CNTCT BRKER,CEN
21156-004
Unavailable
29
PLATE-CNTCT BRKER,R.H
21156-005
Unavailable
30
FELT-OIL
21019-011
Unavailable
31
SCREW PAN HEAD 4X8
220B0408
Unavailable
32
WASHER SPRING 4MM
461F0400
Unavailable
33
SCREW PAN HEAD 5X55
220B0555A
Unavailable
34
BOLT HEX HEAD 8X70
114B0870
Unavailable
35
WASHER SPRING 8MM
461F0800
Unavailable
36
WASHER PLAIN 6MM
411B0600
Unavailable
