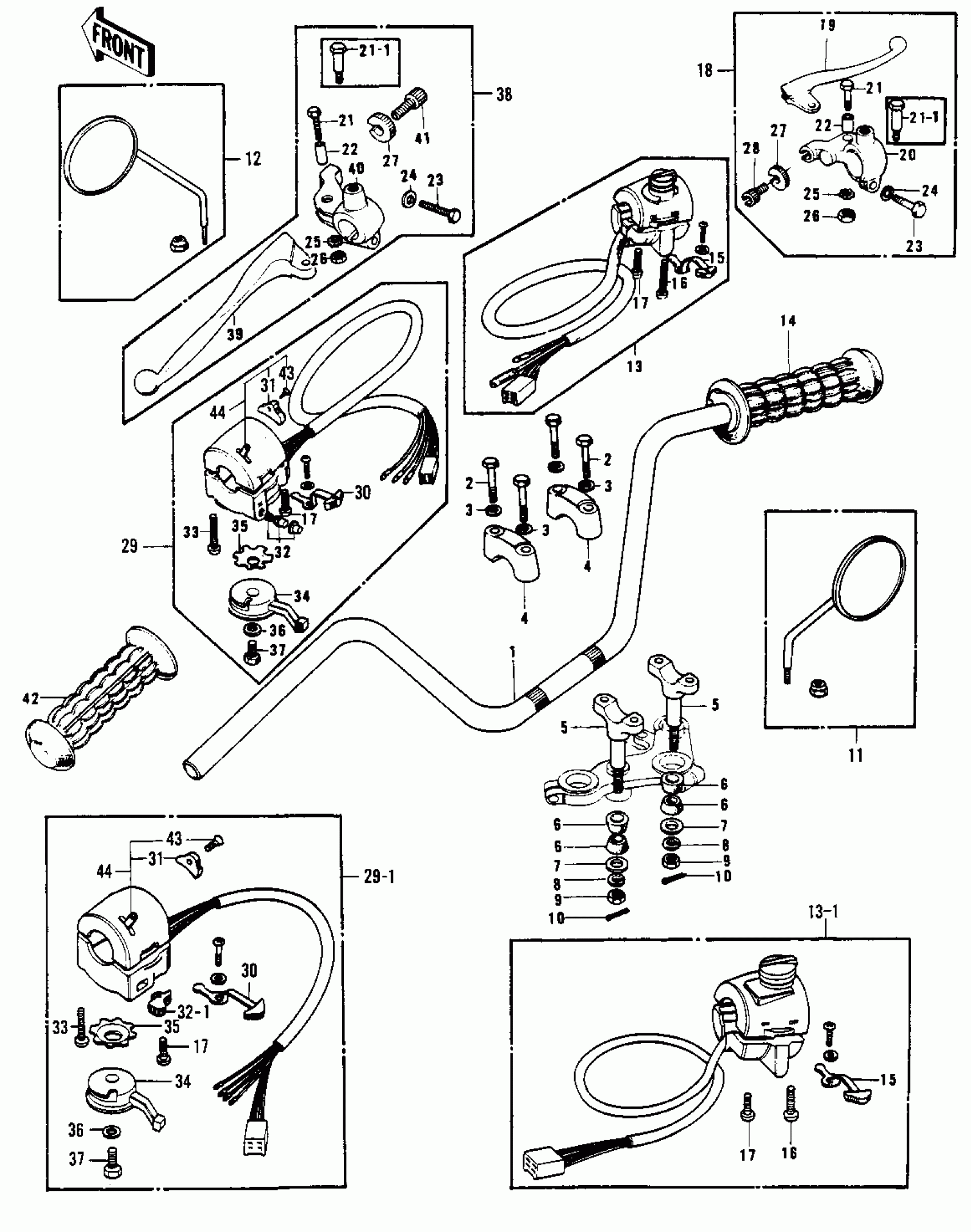

Kawasaki KH250-A5 HANDLEBAR (S1-B/C,KH250-A5) Diagram
#
1
HANDLEBAR
46003-030
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER-HANDLE,UPP
46012-008
Unavailable
5
HOLDER-HANDLE,LWR
46012-010
Unavailable
6
DAMPER,HANDLE HOLDER
92075-039
Unavailable
7
PLATE,HANDLE HOLDER
46016-003
Unavailable
8
WASHER SPRING 10MM
461F1000
Unavailable
9
NUT-HEX-FINE,10MM
314B1000
Unavailable
10
PIN-SNAP,8MM
554A0800
Unavailable
11
MIRROR-ASSY,RH
56002-020
Unavailable
11
REAR VIEW MIRROR,R.H
56002-029
Unavailable
12
MIRROR-ASSY,LH
56003-009
Unavailable
12
REAR VIEW MIRROR,L.H
56003-019
Unavailable
13
CASE ASSY,R.H
46132-007
Unavailable
13-1
CASE ASSY,R.H
46132-017
Unavailable
13-1
CASE ASSY,R.H
46132-025
Unavailable
13-1
CASE ASSY,R.H
46132-026
Unavailable
14
GRIP ASSY-THROTTLE
46019-023
Unavailable
14
GRIP ASSY,THROTTLE
46019-041
Unavailable
15
KNOB,LIGHING SWITCH
46043-006
Unavailable
16
SCREW-PAN-CROS
220B0535
Unavailable
17
SCREW PAN HEAD 5X22
220B0522
Unavailable
18
LEVER ASSY,FRNT BRAKE
46021-025
Unavailable
18
LEVER-ASSY-GRIP,BRAKE
46021-031
Unavailable
19
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
20
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-011-21
Unavailable
20
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
21
BOLT HEX HEAD 5X20
92007-020
Unavailable
21-1
BOLT,5X22
92007-046
Unavailable
22
COLLAR LEVER
46059-011
Unavailable
23
BOLT HEX HEAD 6X25
110N0625
Unavailable
24
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
25
WASHER LOCK 5MM
464H0500
Unavailable
26
NUT-HEX,5MM
312B0500
Unavailable
26
NUT,LOCK,5MM
92019-014
Unavailable
27
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
28
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
29
CASE ASSY,L.H
46091-014
Unavailable
29-1
CASE ASSY,L.H
46091-047
Unavailable
30
KNOB,LIGHTING SW L.H
46043-005
Unavailable
31
KNOB,LIGHTING SW L.H
46044-013
Unavailable
32
SWITCH ASSY LH BUTTON
46078-003
Unavailable
32-1
BUTTON,HORN PUSH
27010-1001
Unavailable
33
SCREW PAN HEAD 5X30
220B0530
Unavailable
34
LEVER,STARTER
46096-009
Unavailable
35
WASHER LOCK
92095-012
Unavailable
36
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
37
BOLT HEX HEAD 6X8
110B0608
Unavailable
38
LEVER ASSY,CLUTCH
46076-038
Unavailable
38
LEVER ASSY,CLUTCH
46076-048
Unavailable
39
LEVER-GRIP,CLUTCH
46092-015
Unavailable
40
HOLDER,CLUTCH LEVER,F.BLACK
46094-015-21
Unavailable
40
HOLDER,F.BLACK
46094-011-21
Unavailable
41
SCREW ADJUST
46055-006
Unavailable
41
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
42
RUBBER-L.H GRIP
46075-017
Unavailable
42
RUBBER,L.H GRIP
46075-028
Unavailable
43
SCREW-PAN-CROS,3X8
220B0308
Unavailable
44
L.H GRIP SWITCH KIT
99990-530
Unavailable
