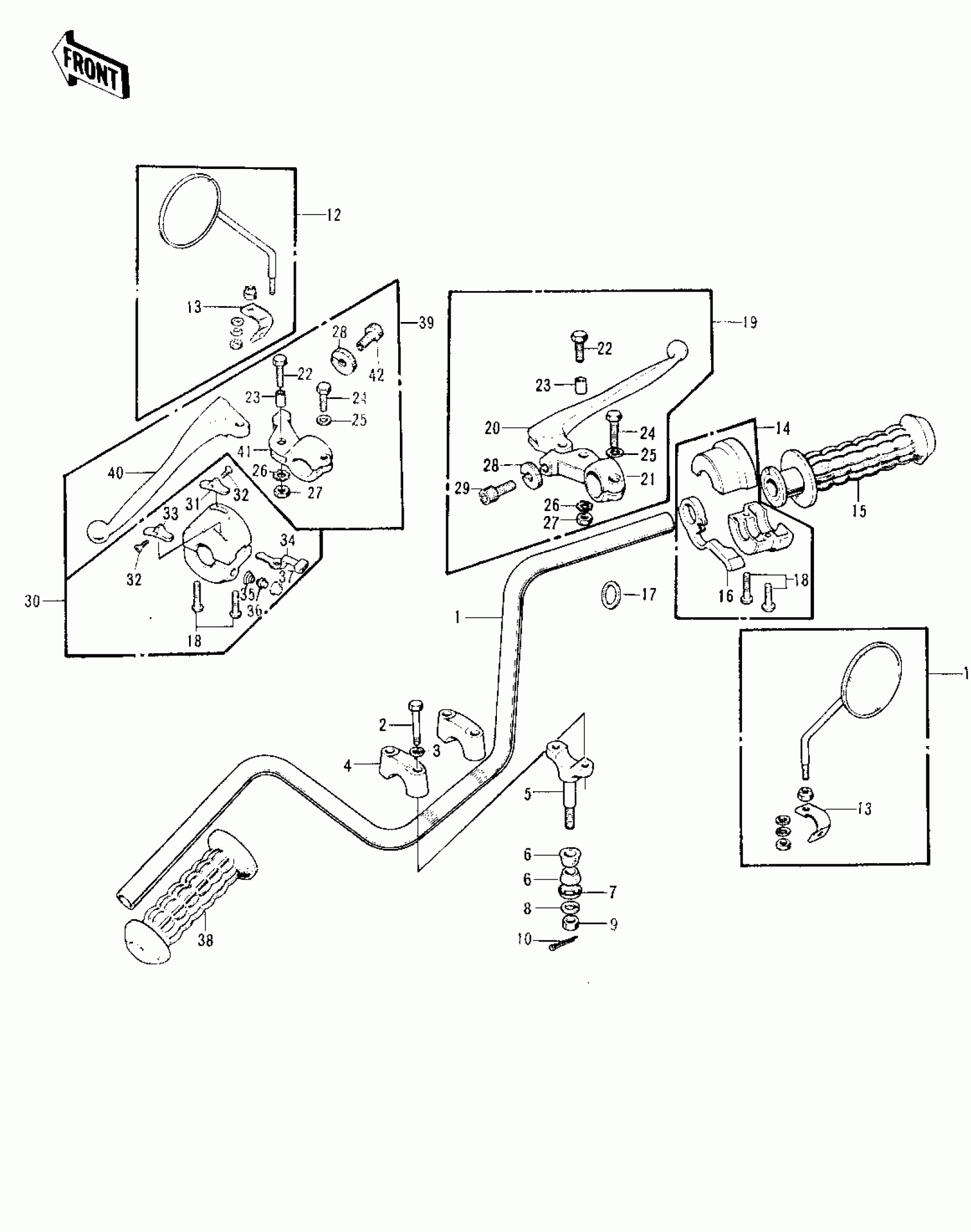

Kawasaki KH250-A5 HANDLEBAR (S1-A) Diagram
#
1
HANDLEBAR
46003-030
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER-HANDLE,UPP
46012-008
Unavailable
5
HOLDER-HANDLE,LWR
46012-010
Unavailable
6
DAMPER,HANDLE HOLDER
92075-039
Unavailable
7
PLATE,HANDLE HOLDER
46016-003
Unavailable
8
WASHER SPRING 10MM
461F1000
Unavailable
9
NUT-HEX-FINE,10MM
314B1000
Unavailable
10
PIN-SNAP,8MM
554A0800
Unavailable
11
REAR VIEW MIRROR R.H.
56002-024
Unavailable
12
REAR VIEW MIRROR LH
56003-016
Unavailable
13
BRACKET
56006-001
Unavailable
14
CASE ASSY-R.H
46018-024
Unavailable
15
GRIP ASSY-THROTTLE
46019-023
Unavailable
16
LEVER-STARTER
46096-007
Unavailable
17
WASHER,WAVE
46114-003
Unavailable
18
SCREW PAN HEAD 5X22
220B0522
Unavailable
19
LEVER ASSY,FRNT BRAKE
46021-018
Unavailable
20
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
21
HOLDER,FR BRAKE LEVER
46060-008
Unavailable
22
BOLT HEX HEAD 5X20
92007-020
Unavailable
23
COLLAR LEVER
46059-011
Unavailable
24
BOLT HEX HEAD 6X25
110N0625
Unavailable
25
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
26
WASHER LOCK 5MM
464H0500
Unavailable
27
NUT-HEX,5MM
312B0500
Unavailable
28
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
29
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
30
CASE ASSY-L.H
46091-005
Unavailable
31
KNOB-L.H SWITCH,B
46044-008
Unavailable
32
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
33
KNOB-L.H SWITCH
46044-011
Unavailable
34
KNOB-SWITCH
46044-007
Unavailable
35
SWITCH,PUSH BUTTON
27010-1009
Unavailable
36
SWITCH,PUSH BUTTON
27010-1009
Unavailable
37
SWITCH,PUSH BUTTON
27010-1009
Unavailable
37
SWITCH,PUSH BUTTON
27010-1009
Unavailable
38
RUBBER-L.H GRIP
46075-017
Unavailable
39
LEVER ASSY-CLUTCH
46076-026
Unavailable
40
LEVER-GRIP,CLUTCH
46092-015
Unavailable
41
HOLDER,CLUTCH LEVER
46094-010
Unavailable
42
SCREW ADJUST
46055-006
Unavailable
