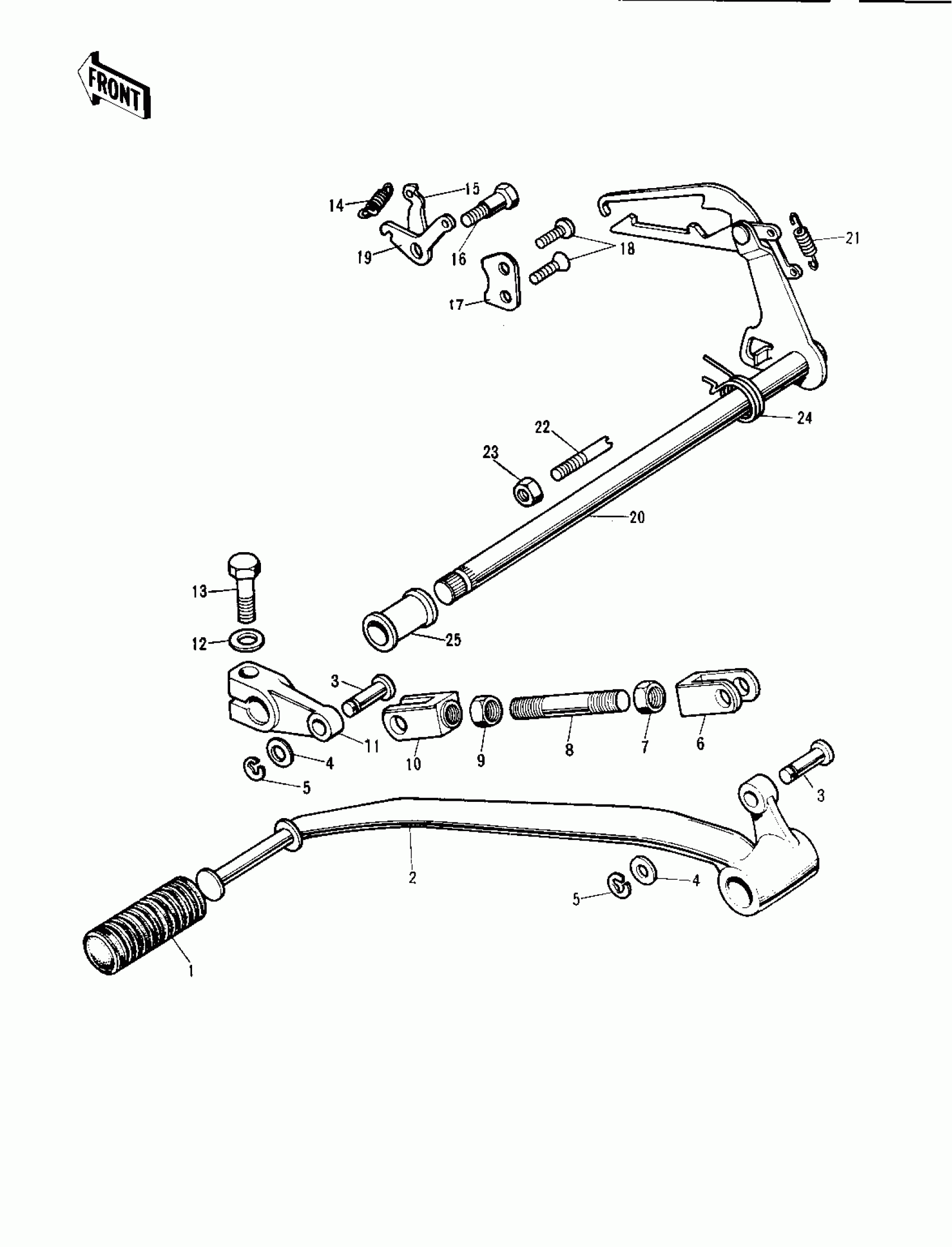

Kawasaki KH250-A5 GEAR CHANGE MECHANISM Diagram
#
Description
Price
1
DAMPER,CHANGE PEDAL
13157-004
Unavailable
2
PEDAL ASY,GEAR CHANGE
13242-009
Unavailable
2
PEDAL ASY,GEAR CHANGE
13242-009
Unavailable
3
PIN
92043-069
Unavailable
4
WASHER,8.5X13X1
92022-1028
Unavailable
5
CIRCLIP 5MM
482K5000
Unavailable
6
CONNECTOR,B
13159-008
Unavailable
7
NUT,8MM
92017-010
Unavailable
8
ROD
92003-074
Unavailable
9
NUT,8MM
318N0800
Unavailable
10
CONNECTOR,A
13159-007
Unavailable
11
LEVER-GEAR CHANGE
13158-007
Unavailable
12
WASHER SPRING 8MM
461F0800
Unavailable
13
BOLT,8X20
92150-1488
Unavailable
13
BOLT-SMALL-UPSET 8X25
115G0825
Unavailable
14
SPRING-COIL
92081-091
Unavailable
15
PLATE-CHNG DRUM LEVER
13170-005
Unavailable
16
SCREW,6MM
92011-023
Unavailable
17
PLATE-DRUM LEV POSTON
13169-007
Unavailable
18
SCREW-CSK-CROS,6X16
221B0616
Unavailable
19
LEVER ASSY-CHNG RETRN
13236-002
Unavailable
20
LEVER ASSY GEAR CHNG
13161-036
Unavailable
21
SPRING,CHANGE LEVER
92144-1720
Unavailable
22
BOLT,RETURN SPRING
92001-1401
Unavailable
23
NUT 8MM
312B0800
Unavailable
24
SPRING,TENSION
92081-1129
Unavailable
24
SPRING,TENSION
92081-1129
Unavailable
25
DUST SHIELD-CHNG SHT
13171-004
Unavailable
