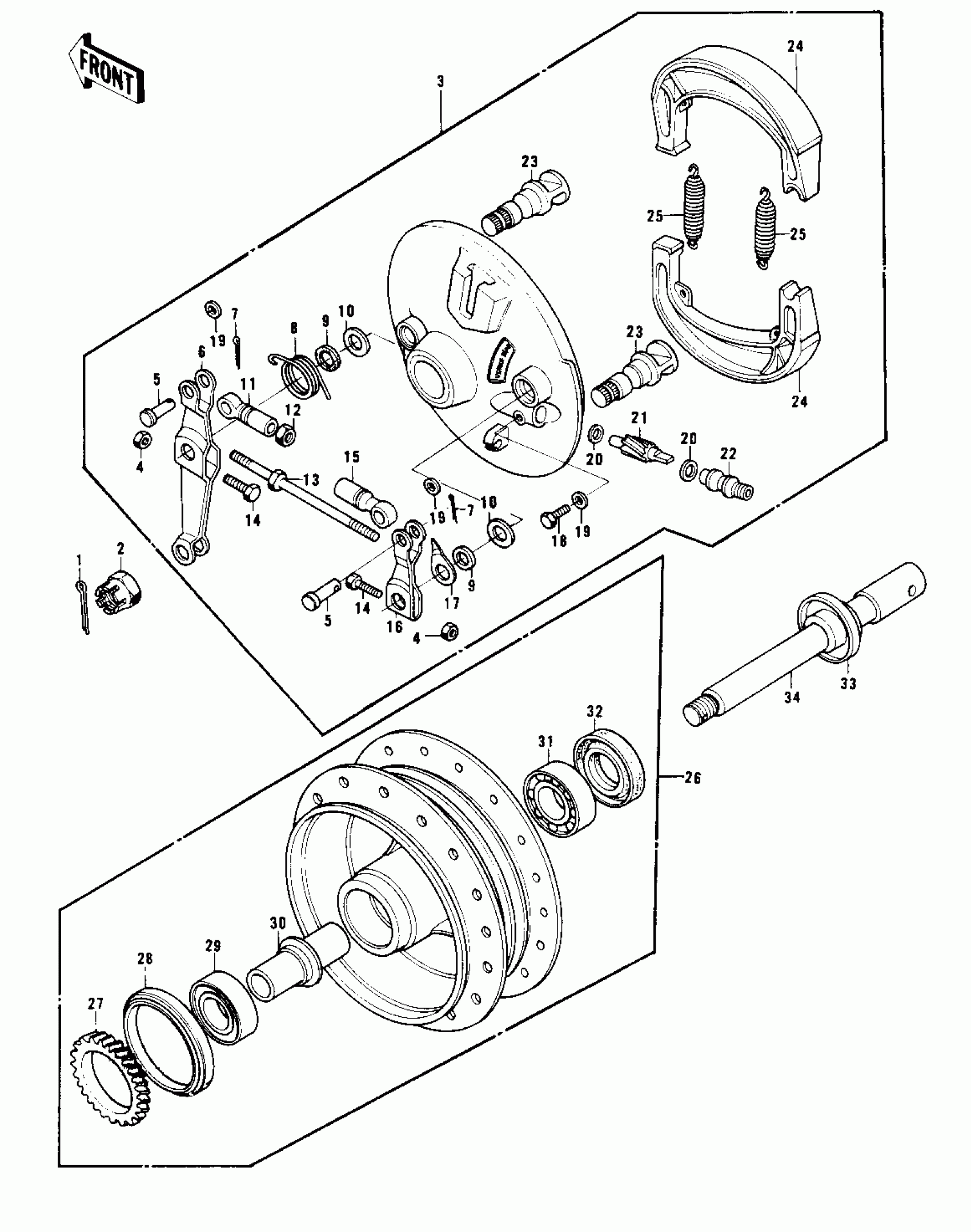

Kawasaki KH250-A5 FRONT HUB/BRAKE Diagram
#
1
PIN-COTTER,3.0X30
550D3030
Unavailable
1
PIN,COTTER,3.0X28
550D3028
Unavailable
2
NUT-CASTLE,14MM
320B1400
Unavailable
3
PANEL-ASY,FR BRK BUFF
41035-066-80
Unavailable
3
PANEL-ASY,FR BRK BUFF
41035-066-80
Unavailable
3
PANEL-ASY,FR BRK BUFF
41035-066-80
Unavailable
4
NUT 6MM
311B0600
Unavailable
4
NUT,6MM
41072-007
Unavailable
5
PIN BRAKE CONNECT ROD
41055-003
Unavailable
6
LEVER FRT BRK CAM 1ST
41053-011
Unavailable
7
PIN COTTER 1.2X10
550D1210
Unavailable
8
SPRING FR BRK CAM LEV
41056-001
Unavailable
9
SEAL,BRAKE CAM
41051-001
Unavailable
10
WASHER,BRAKE CAMSHAFT
41052-005
Unavailable
11
ROD END,BRK CONNECT
41058-008
Unavailable
12
NUT-HEX
311B0500
Unavailable
13
ROD BRK CAM LEV CONCT
41057-004
Unavailable
14
BOLT-UPSET
112G0630
Unavailable
15
ROD END,BRK CONNECT
41058-009
Unavailable
16
LEVER FRT BRK CAM 2ND
41053-012
Unavailable
17
INDICATOR,BRAKE PANEL
41085-009
Unavailable
17
INDICATOR,FRONT BRAKE
41085-001
Unavailable
18
BOLT-UPSET
112G0618
Unavailable
19
WASHER PLAIN 6MM
411B0600
Unavailable
20
WASHER PINION THRUST
41063-003
Unavailable
21
PINION SPEEDOMETER
41060-007
Unavailable
22
BUSH SPEDMETER PINION
41062-003
Unavailable
23
CAM SHAFT FRONT BRAKE
41050-004
Unavailable
23
CAM SHAFT,FRONT BRAKE
41050-016
Unavailable
24
SHOE,BRAKE
41048-019
Unavailable
25
SPRING FRNT BRK SHOE
41049-004
Unavailable
26
DRUM-ASSY,FR BRK
41034-007
Unavailable
27
.GEAR SPEEDOMETER
41059-009
Unavailable
28
OIL SEAL WOC55687
92050-017
Unavailable
29
BEARING BALL #6302Z
601B6302Z
Unavailable
30
SPACER F AXLE BEARING
41039-011
Unavailable
31
BEARING-BALL,#6302C3
601B6302
Unavailable
32
OIL SEAL WTC25428
92052-005
Unavailable
33
COLLAR F AXL OIL SEAL
41069-007
Unavailable
34
UNAVAILABLE IN PRICE BOOK
41069-035
Unavailable
