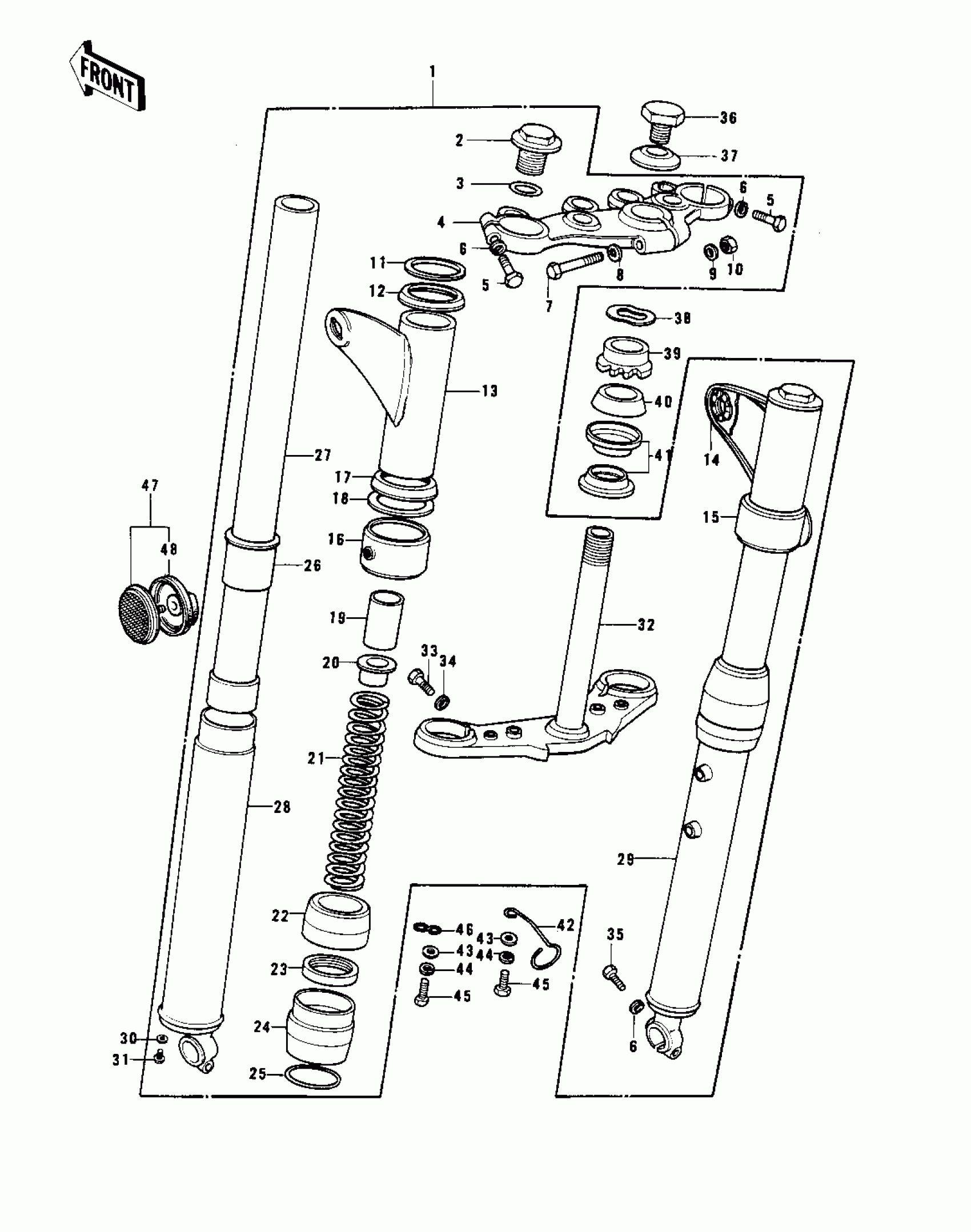

Kawasaki KH250-A5 FRONT FORK (S1-C,KH250-A5) Diagram
#
1
FORK-FRONT,BLACK
44001-140-21
Unavailable
1
FORK-FRONT,F.BLACK
44001-180-21
Unavailable
2
BOLT-FORK FITTING
44041-037
Unavailable
3
RING-O,FORK TOP
92055-1012
Unavailable
4
HEAD,STEERING STEM
44039-052
Unavailable
5
BOLT-STEERING STEM HD
44041-044
Unavailable
6
WASHER SPRING 8MM
461F0800
Unavailable
7
BOLT-STEERING STEM HD
44041-042
Unavailable
8
WASHER LOCK 8MM
463H0800
Unavailable
9
WASHER PLAIN 8MM
410B0800
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
NUT,LOCK,8MM
92015-1124
Unavailable
10
NUT,LOCK,8MM
92015-1124
Unavailable
11
GASKET,FORK COVER
44045-039
Unavailable
12
WASHER,FORK COVER
44043-047
Unavailable
13
COVER,L.H FORK,F.BLK
44033-054-21
Unavailable
14
COVER,R.H FORK,F.BLK
44034-054-21
Unavailable
15
GUIDE,R.H FORK COVER
44064-011
Unavailable
15
GUIDE,FORK COVER
44064-015
Unavailable
16
GUIDE,L.H FORK COVER
44064-012
Unavailable
16
GUIDE,FORK COVER
44064-015
Unavailable
17
CAP,FORK COVER
44032-005
Unavailable
18
GASKET FORK COVER
44045-029
Unavailable
19
SPACER-FORK SPRG GIDE
44028-022
Unavailable
20
GUIDE-FORK SPRING
44029-019
Unavailable
21
SPRING-FORK
44026-038
Unavailable
22
DUST SHIELD
44010-017
Unavailable
23
OIL SEAL,FORK
44009-020
Unavailable
24
NUT FORK OUTER TUBE
44007-015
Unavailable
25
'O' RING OUTER TUBE
44046-016
Unavailable
26
GUIDE FORK INNER TUBE
44015-011
Unavailable
27
TUBE-FORK INNER
44013-031
Unavailable
28
TUBE,LH,FORK OUTER
44005-039
Unavailable
29
TUBE,RH,FORK OUTER
44006-037
Unavailable
30
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
31
SCREW PAN HEAD 4X8
220B0408
Unavailable
32
STEM,STEERING
44037-075
Unavailable
32
STEM,STEERING
44037-099
Unavailable
33
BOLT HEX HEAD 10X32
113B1032
Unavailable
34
WASHER SPRING 10MM
461F1000
Unavailable
35
BOLT FRNT AXLE PINCH
44041-017
Unavailable
36
BOLT,16X25.5
92007-031
Unavailable
37
WASHER,16X41X4
92022-230
Unavailable
38
WASHER,WAVE
46100-003
Unavailable
39
NUT,30MM
92090-007
Unavailable
40
CAP,STEERING STEM
46098-016
Unavailable
41
RACE,STEERING STEM BEARING
92047-006
Unavailable
42
CLAMP-CABLE
92037-099
Unavailable
43
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
44
WASHER SPRING 6MM
461F0600
Unavailable
45
BOLT-UPSET,6X12
112G0612
Unavailable
46
CLAMP,CABLE
92037-046
Unavailable
47
UNAVAILABLE IN PRICE BOOK
26001-029
Unavailable
48
DAMPER RUBBER-REFLEX
28016-002
Unavailable
