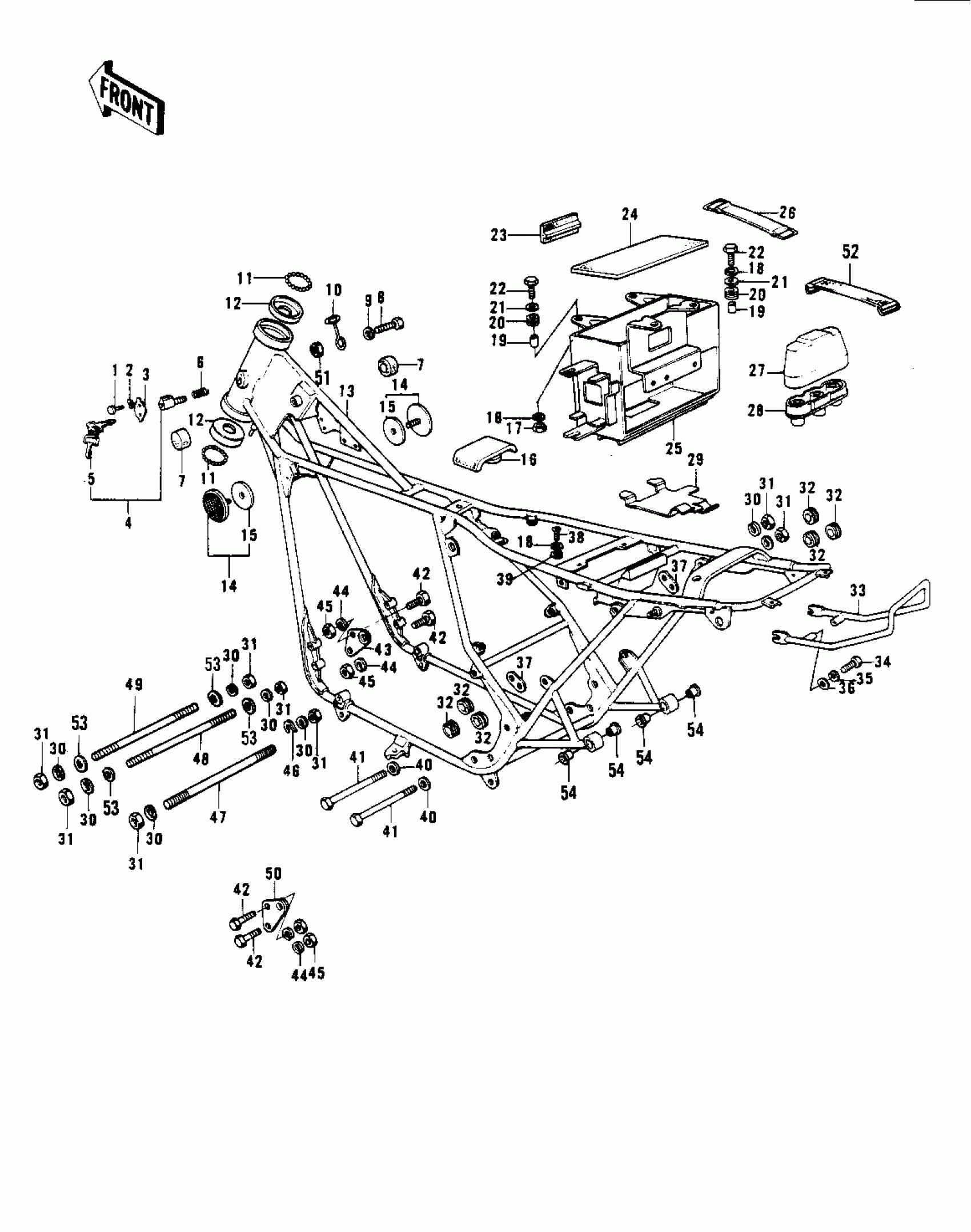

Kawasaki KH250-A5 FRAME/FRAME FITTINGS (S1-B/C,KH250-A5) Diagram
#
1
SCREW,3.51MM
92008-007
Unavailable
2
WASHER,WAVE
92097-003
Unavailable
3
CAP,STEERING LOCK
11012-1134
Unavailable
4
LOCK ASSY,STEERING
27016-038
Unavailable
5
KEY SET,#901
27008-055-01
Unavailable
5
KEY SET,#910
27008-055-10
Unavailable
6
SPRING,STEERING LOCK
27032-001
Unavailable
7
DAMPER,FUEL TANK
92075-101
Unavailable
8
BOLT HEX HEAD 8X16
110N0816
Unavailable
8
BOLT-UPSET,6X12
112G0612
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
CLAMP,CABLE
92037-124
Unavailable
10
CLAMP,CABLE
92037-139
Unavailable
10
CLAMP
92037-108
Unavailable
11
BALL-STEEL,1/4
600A0800
Unavailable
12
RACE,STEERING STEM BEARING
92048-006
Unavailable
13
FRAME
32002-077
Unavailable
13
FRAME
32002-129
Unavailable
13
UNAVAILABLE IN PRICE BOOK
32003-133
Unavailable
14
REFLECTOR,REFLEX
28001-026
Unavailable
15
DAMPER,REFLECTOR
92094-011
Unavailable
16
DAMPER RUBBER,FL TANK
92075-214
Unavailable
17
NUT 6MM
311B0600
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
COLLAR,6.8X10X8.5
92027-129
Unavailable
20
DAMPER RUBBER
92075-076
Unavailable
21
WASHER,6.5X20X1.6
92022-125
Unavailable
22
BOLT 6X22
112B0622
Unavailable
23
SEAT RECTIFIER RUBBER
32103-003
Unavailable
23
SEAT RECTIFIER RUBBER
32103-003
Unavailable
24
MAT BATTERY
32103-006
Unavailable
25
CASE,BATTERY
32097-031
Unavailable
25
CASE,BATTERY
32097-037
Unavailable
26
BAND,L=90
92072-045
Unavailable
27
COVER-SPARK PLUG
32132-003
Unavailable
28
HOLDER-SPARK PLUG COV
32132-002
Unavailable
29
BRACKET,FUSE CASE
32116-004
Unavailable
30
WASHER SPRING 10MM
461F1000
Unavailable
31
NUT-HEX-FINE,10MM
314B1000
Unavailable
32
GROMMET
92071-056
Unavailable
33
STAY,REAR FENDER
35032-028
Unavailable
34
BOLT,8X20
115G0820
Unavailable
35
WASHER SPRING 8MM
461F0800
Unavailable
35
WASHER SPRING 8MM
461F0800
Unavailable
36
WASHER PLAIN 8MM
411B0800
Unavailable
36
WASHER PLAIN 8MM
411B0800
Unavailable
37
PLATE-ENGINE MOUNT
32030-023
Unavailable
38
SCREW-PAN-CROS,6X14
220B0614
Unavailable
38
SCREW-PAN-CROS,6X14
220B0614
Unavailable
39
WASHER LOCK 6MM
464H0600
Unavailable
40
WASHER,PLAIN,10MM
92022-265
Unavailable
41
BOLT,FLANGED,10X110
92001-1602
Unavailable
42
BOLT,10X45
92001-1182
Unavailable
43
PLATE,ENGINE MOUNT,FR
32030-030
Unavailable
43
PLATE,L.H ENG MOUNT
32030-033
Unavailable
43
PLATE,R.H ENG MOUNT
32030-032
Unavailable
44
WASHER SPRING 8MM
461F0800
Unavailable
45
NUT,8MM
311B0800
Unavailable
46
SHIM-ENG FIT FR,2.0MM
92025-057
Unavailable
47
BOLT,10X237
92003-182
Unavailable
48
BOLT,10X225
92003-181
Unavailable
49
BOLT,10X252
92003-209
Unavailable
50
PLATE,L.H ENG MOUNT
32030-033
Unavailable
51
NUT,8MM
311B0800
Unavailable
52
BAND,L=82
92072-053
Unavailable
53
WASHER,PLAIN,10MM
92022-265
Unavailable
54
COLLAR,MUFFLER
92027-215
Unavailable
