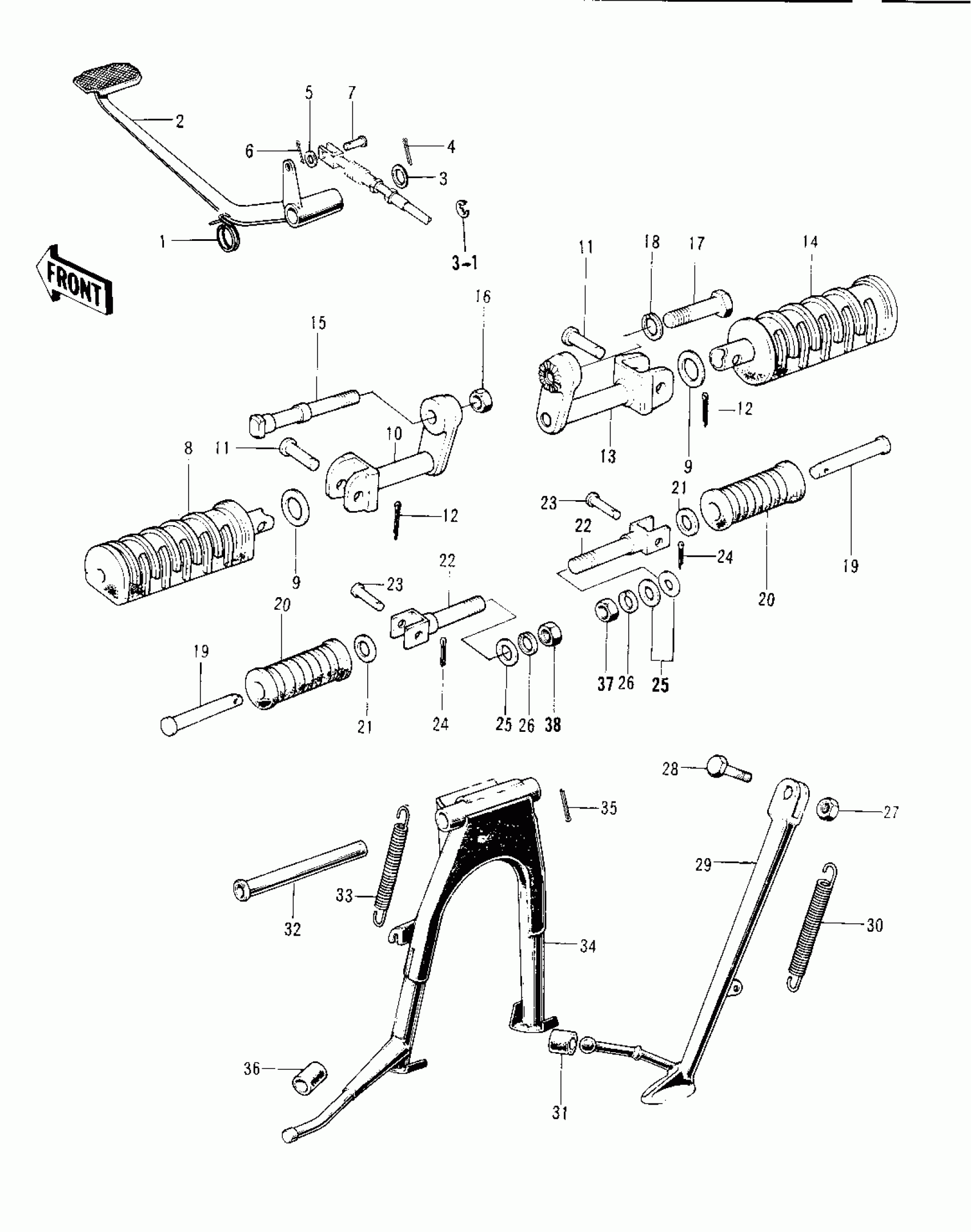

Kawasaki KH250-A5 FOOTRESTS/STANDS/BRAKE PEDAL Diagram
#
1
SPRING,BRAKE PEDAL
43005-033
Unavailable
1
SPRING,BRAKE PEDAL
43005-033
Unavailable
2
PEDAL-BRAKE
43001-038
Unavailable
2
PEDAL,BRAKE
43001-060
Unavailable
3
WASHER BRAKE PEDAL
92022-085
Unavailable
3-1
CIRCLIP 12MM
482K0200
Unavailable
4
PIN-COTTER,3.0X20
550D3020
Unavailable
5
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
6
PIN COTTER 2.0X15
550D2015
Unavailable
7
PIN R BRK CABLE JOINT
92043-034
Unavailable
8
BAR-FOOTREST,L.H
34028-011
Unavailable
9
WASHER PL 22.5X36X2.3
92022-204
Unavailable
10
HOLDER-FOTREST BAR LH
34003-040
Unavailable
11
PIN,8X31
92043-080
Unavailable
12
PIN-COTTER,2.5X15
550D2515
Unavailable
13
HOLDER-FOTREST BAR RH
34003-041
Unavailable
14
BAR-FOOTREST,R.H
34028-012
Unavailable
15
BOLT-L.H FOOTREST FIT
92003-076
Unavailable
16
NUT-HEX-FINE
315B1200
Unavailable
17
BOLT,R.H.FOOTREST FIT
92001-1068
Unavailable
18
WASHER-SPRING,12MM
461F1200
Unavailable
19
STEP,RR
34028-009
Unavailable
20
RUBBER,REAR FOOTREST
92076-024
Unavailable
21
WASHER-PLAIN (OPT)
92022-199
Unavailable
22
HOLDER-STEP,RR
34029-008
Unavailable
22
BRACKET,REAR FOOTREST
34029-011
Unavailable
23
PIN,6X28
92043-1464
Unavailable
24
PIN-COTTER,2.0X12
550D2012
Unavailable
25
WASHER PLAIN 10MM
410B1000
Unavailable
26
WASHER SPRING 10MM
461F1000
Unavailable
27
NUT-HEX-FINE,10MM
314B1000
Unavailable
28
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
28
BOLT,SIDE STAND
92003-079
Unavailable
29
STAND-SIDE
34024-051
Unavailable
30
SPRING MAIN STAND
34023-005
Unavailable
31
DAMPER RUBB SIDE STND
92075-031
Unavailable
32
SHAFT MAIN STAND
34019-011
Unavailable
33
SPRING-MAIN STAND
34023-010
Unavailable
34
STAND-MAIN
34011-028
Unavailable
35
PIN-COTTER,3.0X25
550D3025
Unavailable
36
DAMPER RUBB-MAIN STND
92075-115
Unavailable
36
DAMPER RUBB-MAIN STND
92075-115
Unavailable
37
NUT-HEX-FINE,10MM
314B1000
Unavailable
37
NUT,10MM
92015-1429
Unavailable
37
NUT,LOCK,10MM
92019-021
Unavailable
38
NUT-HEX-FINE,10MM
314B1000
Unavailable
