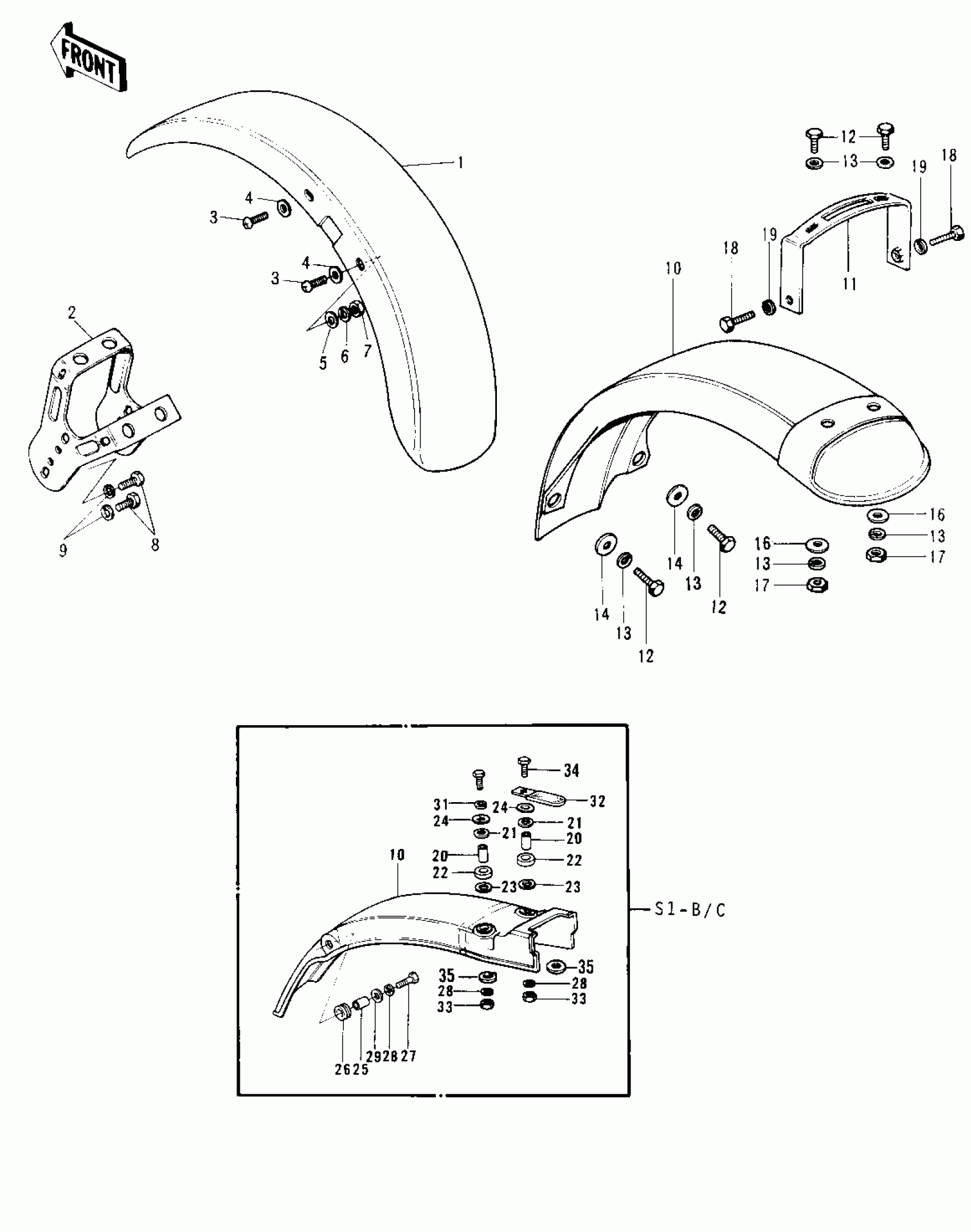

Kawasaki KH250-A5 FENDERS (S1-A/B/C) Diagram
#
1
FENDER-FR
35004-075
Unavailable
1
FENDER-FR
35004-084
Unavailable
2
BRACE,FRONT FENDER
35009-026
Unavailable
2
BRACE,FRONT FENDER
35009-030
Unavailable
3
SCREW PAN HEAD 6X14
220E0614
Unavailable
4
WASHER,6.5X20X1.6,WHITE
92022-193
Unavailable
5
WASHER PLAIN 6MM
411B0600
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
NUT 6MM
311B0600
Unavailable
8
BOLT HEX HEAD 8X16
116B0816
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
FENDER-RR
35022-056
Unavailable
10-1
FENDER-RR
35022-099
Unavailable
11
BRACKET-REAR FENDER
35025-021
Unavailable
12
BOLT-UPSET,6X16
112G0616
Unavailable
13
WASHER SPRING 6MM
461F0600
Unavailable
14
COLLAR
92027-122
Unavailable
15
WASHER,6.5X20X1.6
92022-125
Unavailable
16
WASHER PLAIN 6MM
411B0600
Unavailable
17
NUT 6MM
311B0600
Unavailable
18
BOLT,HEX HEAD,10X25
113N1025
Unavailable
19
WASHER SPRING 10MM
461F1000
Unavailable
20
COLLAR,6.8X10X12
92027-162
Unavailable
21
DAMPER,FENDER
92075-121
Unavailable
22
DAMPER RUBBER,RR FEND
92075-133
Unavailable
23
WASHER,7X27X1.6
92022-227
Unavailable
24
WASHER,7X24X1.6
92022-228
Unavailable
25
COLLAR
92027-103
Unavailable
26
DAMPER RUBBER
92075-105
Unavailable
27
BOLT-UPSET,6X16
112G0616
Unavailable
28
WASHER SPRING 6MM
461F0600
Unavailable
29
WASHER,6.5X20X1.6
92022-125
Unavailable
30
BOLT-HEX HEAD,6X32
110N0632
Unavailable
31
WASHER PLAIN 6MM
411B0600
Unavailable
32
CLAMP
92037-113
Unavailable
33
NUT 6MM
311B0600
Unavailable
34
BOLT HEX HEAD 6X36
110N0636
Unavailable
35
WASHER,7X24X1.6
92022-228
Unavailable
