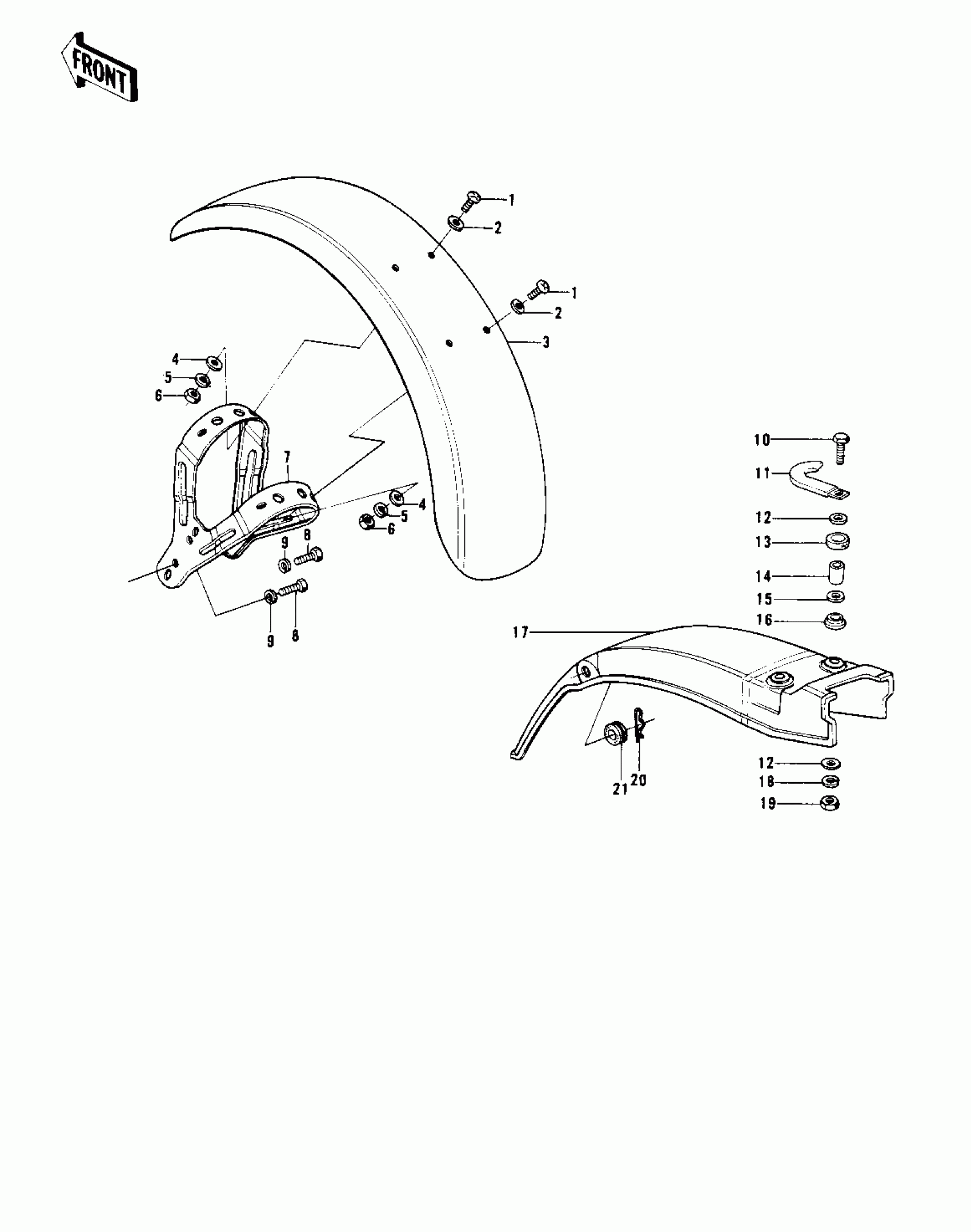

Kawasaki KH250-A5 FENDERS (KH250-A5) Diagram
#
Description
Price
1
SCREW PAN HEAD 6X14
220E0614
Unavailable
2
WASHER,6.5X20X1.6,WHITE
92022-193
Unavailable
3
FENDER-FR
35004-084
Unavailable
4
WASHER PLAIN 6MM
411B0600
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
NUT 6MM
311B0600
Unavailable
7
BRACE,FRONT FENDER
35009-036
Unavailable
8
BOLT SMALL
114G0812
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
BOLT 6X35
110R0635
Unavailable
11
CLAMP
92037-113
Unavailable
12
WASHER,7X24X1.6
92022-228
Unavailable
13
DAMPER,FENDER
92075-121
Unavailable
14
COLLAR,6.8X10X12
92027-162
Unavailable
15
WASHER,7X27X1.6
92022-227
Unavailable
16
DAMPER RUBBER,RR FEND
92075-133
Unavailable
17
FENDER-RR
35022-099
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
COTTER PIN
92041-003
Unavailable
21
DAMPER RUBBER
92075-105
Unavailable
