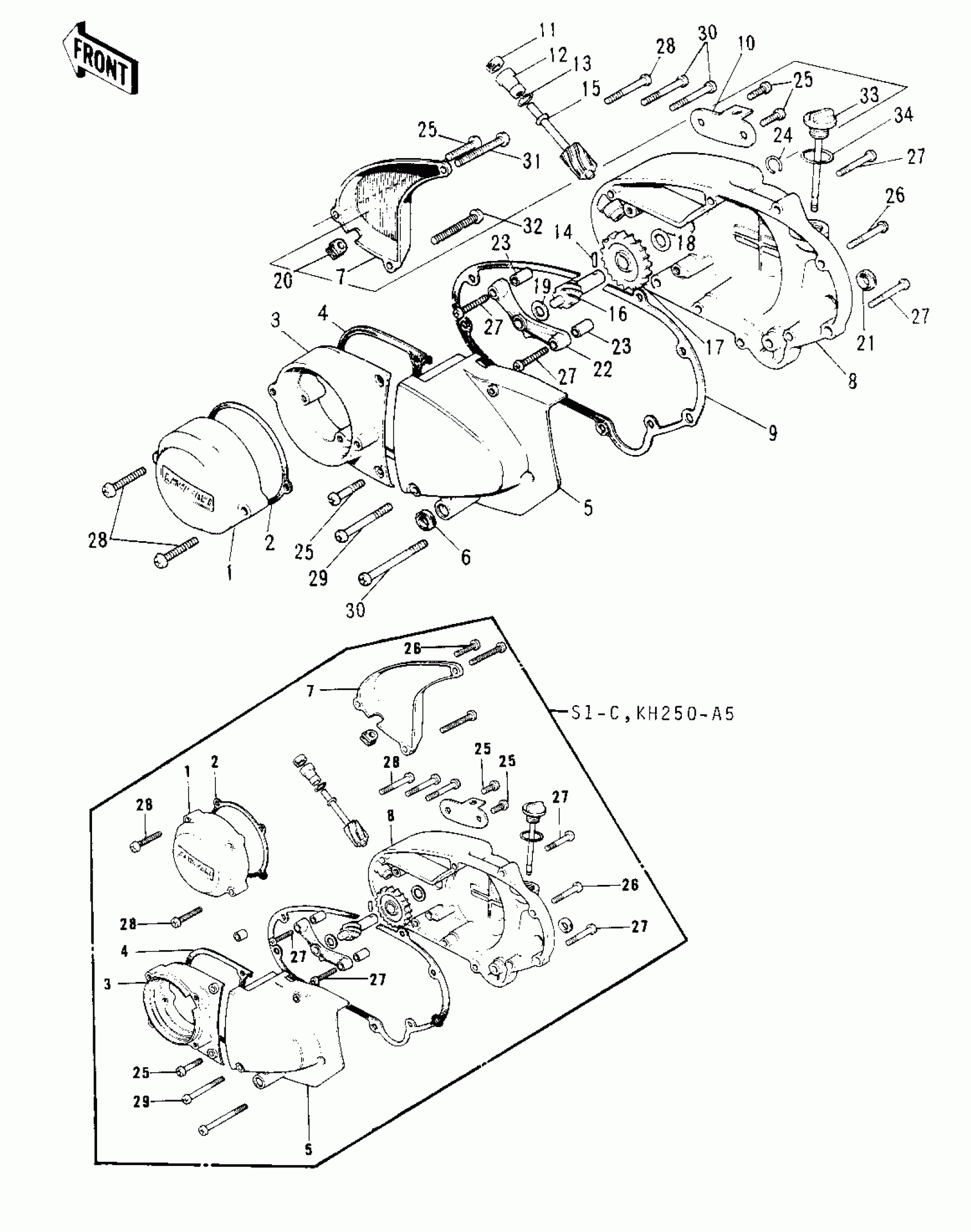

Kawasaki KH250-A5 ENGINE COVERS Diagram
#
1
CAP,BREAKER POINT,BUF
14027-016-80
Unavailable
1
COVER, GENERATOR,BUFF
14031-1030
Unavailable
1
COVER, GENERATOR,BUFF
14031-1030
Unavailable
2
GASKET-POINT CAP
14050-005
Unavailable
2
GASKET,POINT CAP
14050-009
Unavailable
3
COVER,R.H ENGINE,BUFF
14031-086-80
Unavailable
3
COVER,R.H ENGINE,BUFF
14031-086-80
Unavailable
3
COVER,L.H ENG,BUFF
14031-089-80
Unavailable
4
GASKET,L.H ENG COVER
14045-022
Unavailable
5
COVER,CHAIN CASE,BUFF
14026-022-80
Unavailable
5
COVER,CHAIN CASE,BUFF
14026-022-80
Unavailable
6
SEAL-OIL
92049-1249
Unavailable
7
COVER,OIL PUMP,BUFF
14030-030-80
Unavailable
8
COVER,R.H,ENG. CLEAR
14032-1018
Unavailable
8
COVER,R.H,ENG. CLEAR
14032-1018
Unavailable
8
COVER,R.H,ENG. CLEAR
14032-1018
Unavailable
9
GASKET-R.H ENGINE COV
14046-019
Unavailable
10
HOLDER
14044-006
Unavailable
11
OIL SEAL
92054-004
Unavailable
12
BUSH
92028-075
Unavailable
13
RING-O,12X1.5
92055-025
Unavailable
14
PIN,DOWEL
92042-035
Unavailable
15
SHAFT-TACHOMETER GEAR
13226-005
Unavailable
16
GEAR-TACHOMETER
13224-008
Unavailable
17
GEAR-OIL PUMP
16085-017
Unavailable
18
WASHER THRUST
92026-025
Unavailable
19
WASHER THRUST
92026-026
Unavailable
20
GROMMET-R.H ENG COVER
14038-030
Unavailable
21
SEAL-OIL,SB16244
92049-002
Unavailable
22
HOLDER-TACHOMETER GR
14018-005
Unavailable
23
PIN,DOWEL,6.3X8X14
92042-007
Unavailable
24
CIRCLIP
92036-017
Unavailable
25
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
25
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
26
SCREW PAN HEAD 6X25
220B0625
Unavailable
26
SCREW PAN HEAD 6X25
220B0625
Unavailable
27
SCREW PAN HEAD 6X30
220B0630
Unavailable
27
SCREW PAN HEAD 6X30
220B0630
Unavailable
28
SCREW PAN HEAD 6X35
220B0635
Unavailable
28
SCREW PAN HEAD 6X35
220B0635
Unavailable
29
SCREW PAN HEAD 6X45
220B0645
Unavailable
30
SCREW PAN HEAD 6X55
220B0655
Unavailable
31
SCREW-PAN HEAD,6X90
220B0690
Unavailable
32
SCREW PAN HEAD 6X100
220B06100
Unavailable
33
PLUG-OIL FILLER
16115-017
Unavailable
34
O RING,20MM
670B2020
Unavailable
