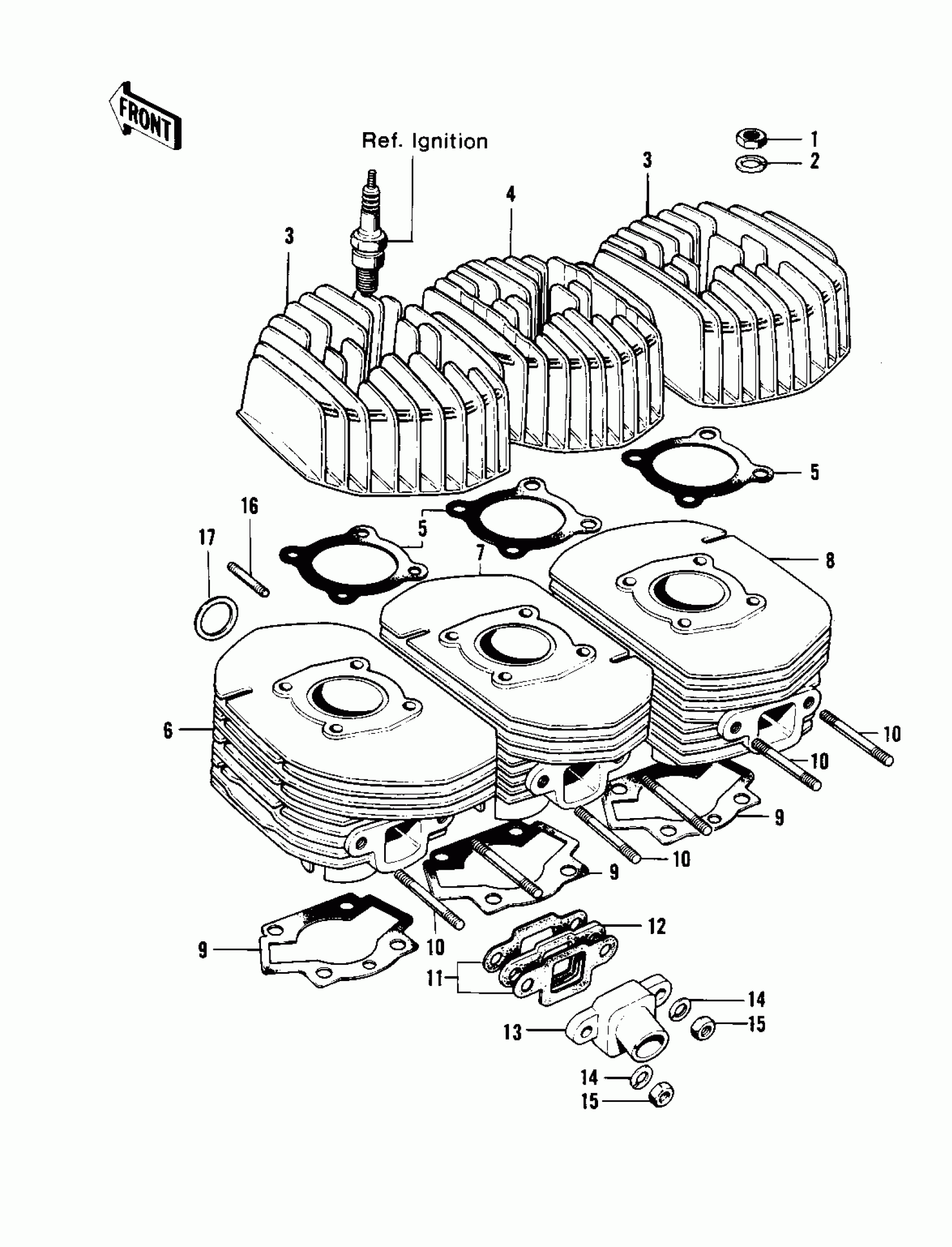

Kawasaki KH250-A5 CYLINDER HEADS/CYLINDERS Diagram

#

Description

Price

1

NUT,8MM

311B0800

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

CYLINDER HEAD,L.H&R.H

11001-093

Unavailable

4

CYLINDER HEAD,CENTER

11001-094

Unavailable

5

GASKET,CYLINDER HEAD

11004-047

Unavailable

6

CYLINDER,L.H,BARREL

11005-1026

Unavailable

6

CYLINDER,L.H,BARREL

11005-1026

Unavailable

7

CYLINDER,CENTER

11005-095

Unavailable

8

CYLINDER,R.H

11005-096

Unavailable

9

GASKET-CYLINDER BASE

11009-027

Unavailable

10

BOLT-STUD,8X20

172G0820

Unavailable

11

GASKET,AIR INLET

16062-015

Unavailable

12

INSULATOR,HEAT

16061-013

Unavailable

13

PIPE, AIR INLET

16060-014

Unavailable

14

WASHER SPRING 8MM

461F0800

Unavailable

15

NUT,8MM

311B0800

Unavailable

16

BOLT-STUD,8X30

172G0830

Unavailable

16

STUD,8X35

92004-1009

Unavailable

17

GASKET,EXHAUST PIPE

11009-1992

Unavailable

17

GASKET,EXHAUST PIPE

11009-1992

Unavailable
