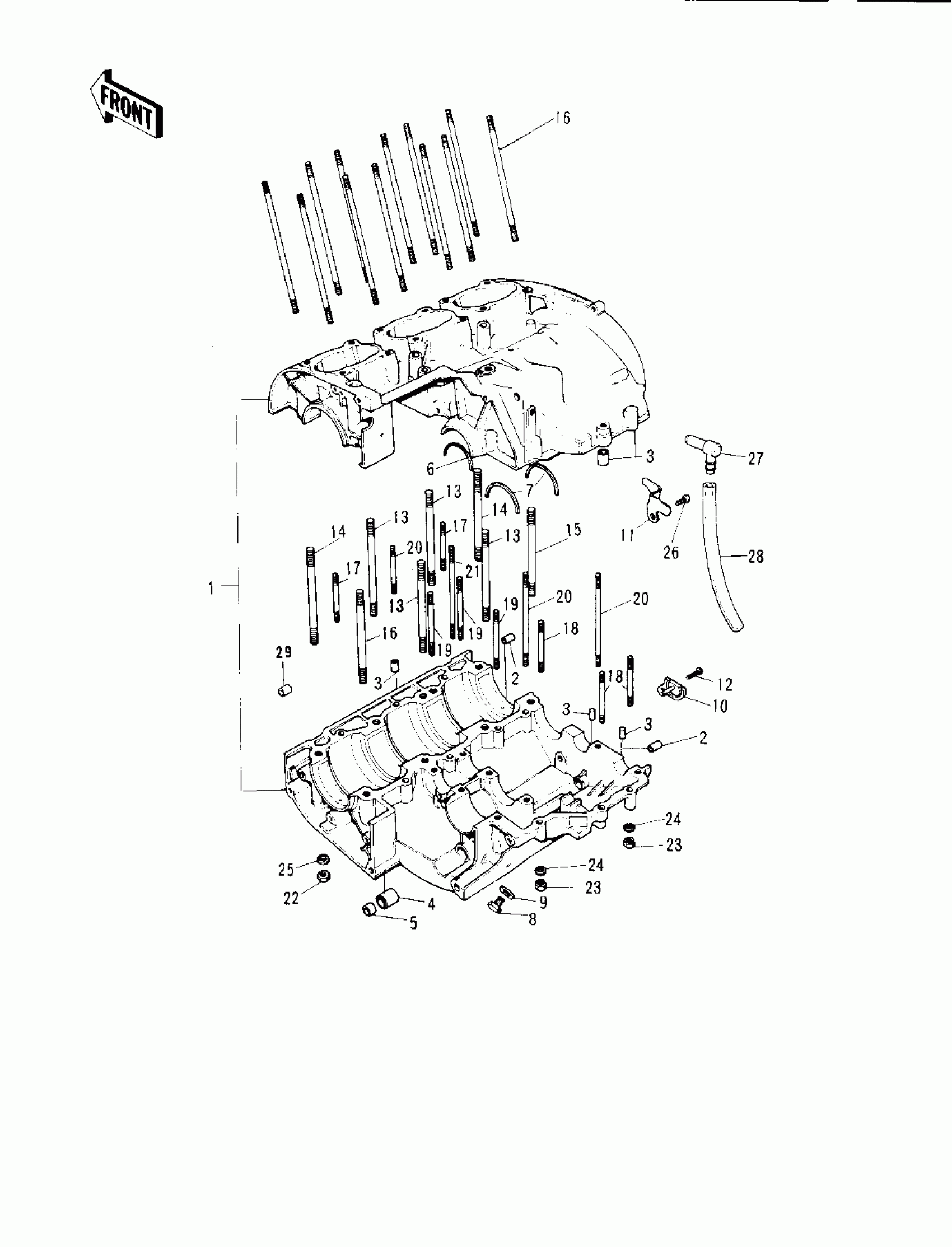

Kawasaki KH250-A5 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE SET
14001-049
Unavailable
1
CRANKCASE SET
14001-058
Unavailable
2
PIN,DOWEL,10X14
92043-1037
Unavailable
3
PIN,DOWEL,6X16
92042-016
Unavailable
4
BUSH CHANGE PEDAL SHT
92028-071
Unavailable
5
SEAL-OIL,SB12205
92049-004
Unavailable
6
RING-POSITION,T=1.90
14013-013
Unavailable
7
RING-POSITION
14013-004
Unavailable
8
PLUG,DRAIN,10X12
92067-001
Unavailable
9
GASKET,10.5X16X1
92065-058
Unavailable
10
RECEIVER OIL
14015-001
Unavailable
11
RECEIVER-OIL
14015-003
Unavailable
12
SCREW-CSK-CROS,6X16
221B0616
Unavailable
13
STUD 10X50
172G1050
Unavailable
13
STUD,10X55
172G1055
Unavailable
14
STUD,10X70
172G1070
Unavailable
15
STUD,10X80
172G1080
Unavailable
16
BOLT-STUD,8X115
172G08115
Unavailable
17
BOLT-STUD,6X22
172G0622
Unavailable
18
STUD 6X35
172G0635
Unavailable
19
STUD 6X50
172G0650
Unavailable
20
STUD 6X50
172G0650
Unavailable
21
STUD,6X65
172G0665
Unavailable
22
NUT,10MM
317B1000
Unavailable
23
NUT 6MM
311B0600
Unavailable
24
WASHER SPRING 6MM
461F0600
Unavailable
25
WASHER SPRING 10MM
461F1000
Unavailable
26
SCREW PAN HEAD 6X10
220B0610
Unavailable
27
BREATHER
14069-003
Unavailable
28
PIPE-BREATHER
92059-061
Unavailable
29
PIN,DOWEL,6.3X8X14
92042-007
Unavailable
