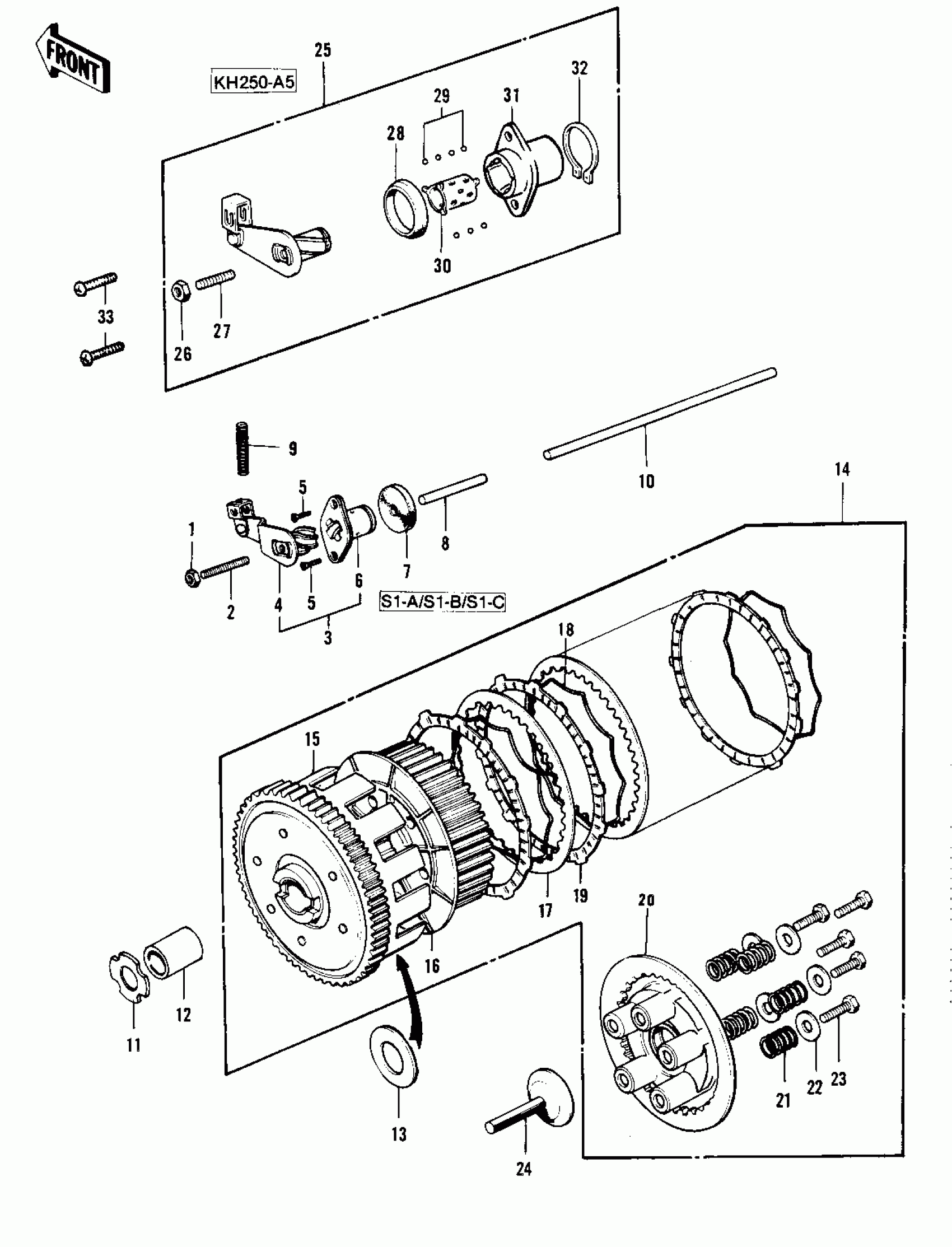

Kawasaki KH250-A5 CLUTCH Diagram
#
1
NUT 6MM
311B0600
Unavailable
2
SCREW SLOTTED
291Z0622
Unavailable
2
SCREW SLOTTED
291Z0625
Unavailable
3
RELEASE ASSY,CLUTCH
13231-010
Unavailable
4
RELEASE ASSY,CLUTCH
13231-010
Unavailable
4
INNER,CLUTCH RELEASE
13102-017
Unavailable
5
SCREW-CSK-CROS,6X16
221B0616
Unavailable
6
RELEASE ASSY,CLUTCH
13231-010
Unavailable
6
OUTER,CLUTCH RELEASE
13118-008
Unavailable
7
OIL SEAL TC7297
92050-040
Unavailable
8
ROD CLUTCH PUSH SHORT
13116-010
Unavailable
9
SPRING,CLUTCH RELEASE
92081-096
Unavailable
10
ROD-CLUTCH PUSH,LONG
13116-019
Unavailable
11
WASHER THRUST
92022-119
Unavailable
12
BUSH CLUTCH
92028-045
Unavailable
13
WASHER-PLAIN,20MM
92022-189
Unavailable
14
CLUTCH-ASSY
13081-1022
Unavailable
14
CLUTCH-ASSY
13081-1022
Unavailable
15
HOUSING-CLUTCH
13095-032
Unavailable
16
HUB,CLUTCH
13087-033
Unavailable
17
PLATE CLUTCH STEEL
13089-003
Unavailable
18
RING-CLUTCH STEEL
13229-002
Unavailable
19
PLATE-FRICTION
13088-1015
Unavailable
20
PLATE-CLUTCH SPRING
13187-004
Unavailable
21
SPRING,CLUTCH
92081-080
Unavailable
22
WASHER-PLAIN,5MM
92022-167
Unavailable
23
BOLT,5X18
92003-078
Unavailable
24
PUSHER-CLTCH SPRG PLT
13116-016
Unavailable
25
RELEASE ASSY,CLUTCH
13231-1001
Unavailable
26
NUT 6MM
311B0600
Unavailable
27
SCREW SLOTTED
291Z0625
Unavailable
28
OIL SEAL
92056-007
Unavailable
29
BALL,STEEL,1/8"
600A0400
Unavailable
30
RETAINER
13197-006
Unavailable
31
OUTER,CLUTCH RELEASE
13118-015
Unavailable
32
CIRCLIP-TYPE-C,15MM
480J1500
Unavailable
33
SCREW-PAN-CROS,6X16
220B0616
Unavailable
