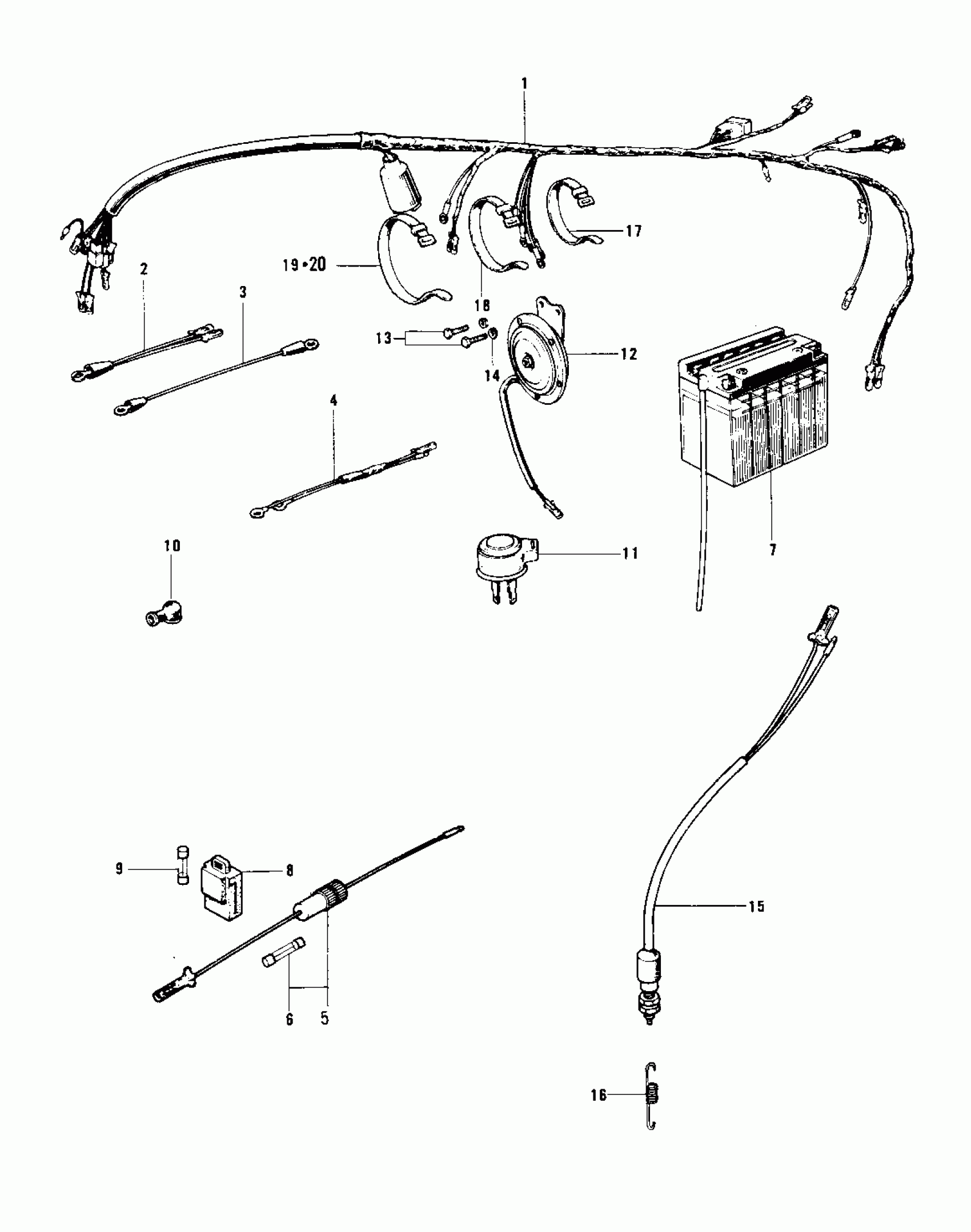

Kawasaki KH250-A5 CHASSIS ELECTRICAL EQUIPMENT (S1-A/B/C) Diagram
#
Description
Price
1
WIRING HARNESS-MAIN
26001-081
Unavailable
1
WIRING HARNESS,MAIN
26001-106
Unavailable
2
WIRE BATTERY LEAD
26010-015
Unavailable
2
WIRE,BATTERY LEAD
26010-033
Unavailable
3
WIRE BATTERY GROUND
26010-017
Unavailable
4
WIRE-SIGNAL LAMP LEAD
26011-064
Unavailable
5
FUSE ASSY
26004-015
Unavailable
5
FUSE ASSY
26004-013
Unavailable
6
FUSE,20A,L=25
26006-005
Unavailable
6
FUSE 20A
26006-002
Unavailable
7
FB BAT 12N5.5-4A
26012-022
Unavailable
8
HOLDER-SPARE FUSE
26016-004
Unavailable
8
HOLDER,SPARE FUSE
26016-002
Unavailable
9
FUSE,20A,L=25
26006-005
Unavailable
9
FUSE 20A
26006-002
Unavailable
10
CAP BAT TERMINAL RUBB
92073-001
Unavailable
11
RELAY-ASSY,TURN SIGNAL
27002-011
Unavailable
12
HORN
27003-042
Unavailable
12
HORN
27003-042
Unavailable
13
BOLT HEX HEAD 8X16
116B0816
Unavailable
14
WASHER SPRING 8MM
461F0800
Unavailable
15
SWITCH-BRAKE LAMP
27010-020
Unavailable
15
SWITCH-BRAKE LAMP
27010-015
Unavailable
16
SPRING-BRAKE LAMP SW
27011-013
Unavailable
17
BAND,L=123
92072-030
Unavailable
18
BAND,L=149
92072-031
Unavailable
18
BAND,L=149
92072-031
Unavailable
19
BAND,L=218
92072-032
Unavailable
20
BAND,L=186
92072-056
Unavailable
