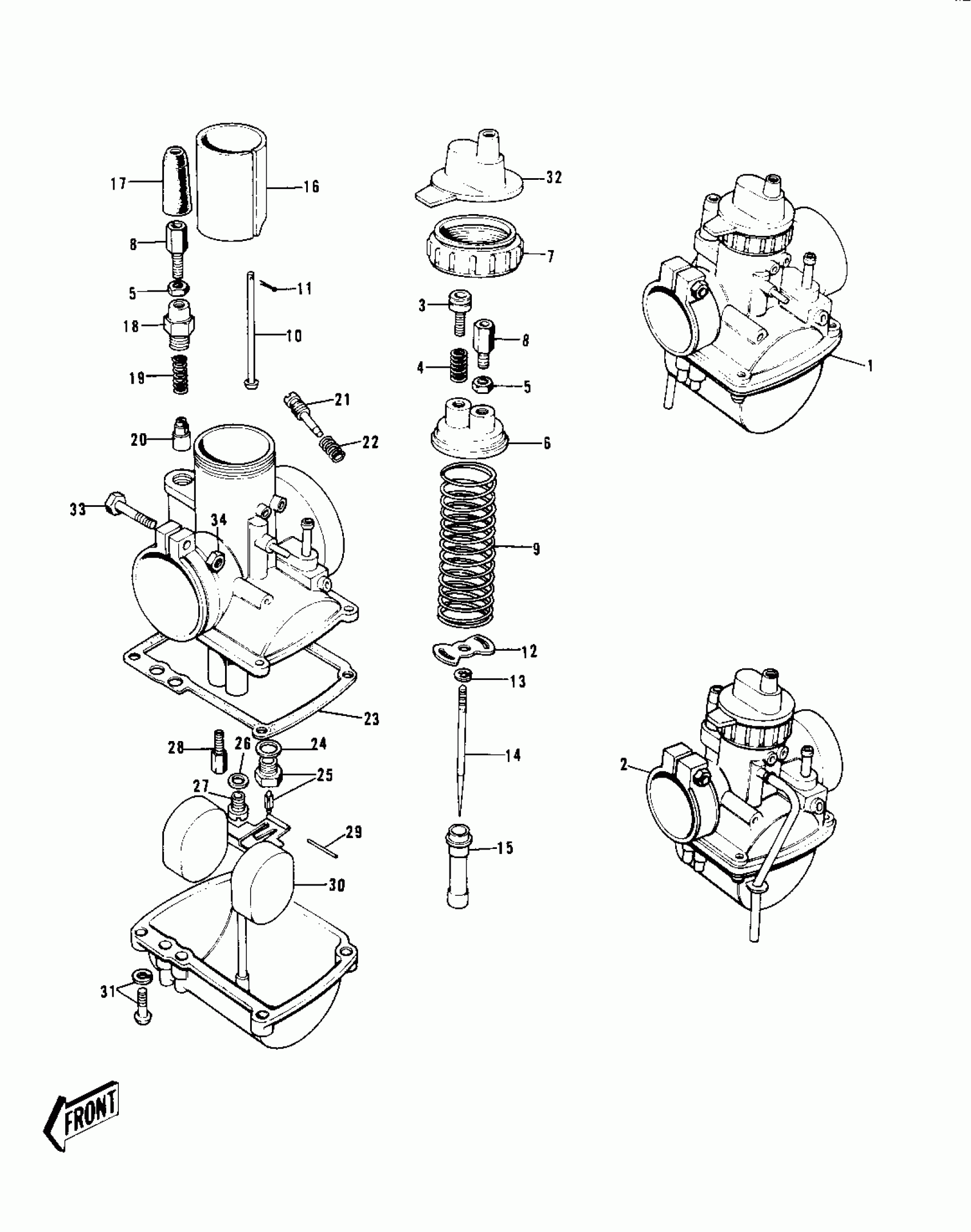

Kawasaki KH250-A5 CARBURETORS Diagram

#

Description
Price

1

CARBURETOR ASSY,L.H

16001-177

$241.11

1

CARBURETOR ASSY,L.H

16001-235

$499.22

2

CARBURETOR ASY,RH&CNT

16001-178

$221.38

2

CARBURETOR ASY,R.H&CN

16001-236

$444.28

3

SCREW,THROTTLE ADJSTR

16021-016

Unavailable

4

SPRING,THROTTLE STOP SCREW

16022-005

Unavailable

5

NUT,CABLE ADJUST LOCK

16003-004

$7.53

6

TOP-CHAMBER,MIXING

16005-005

$19.51

7

CAP,MIXING CHAMBER

16004-019

$13.69

8

CABLE ADJUSTER

16002-002

$9.63

9

SPRING,THROTTLE VALVE

16006-019

$15.54

10

ROD,THROTTLE VLV STP

16024-012

Unavailable

11

PIN COTTER 1.2X10

550D1210

$1.73

12

SPRING SEAT THRTL VL

16007-002

Unavailable

13

CLAMP,E-TYPE

16008-010

$8.95

14

JET NEEDLE 4EJ9

16009-057

$28.14

15

NEEDLE JET,O-2

16017-066

$35.53

16

VALVE,THROTTLE CA.2.5

16025-054

$105.99

17

CAP CABLE ADJUST RUBB

16036-005

$10.83

18

CAP STARTER PLUNGER

16012-004

Unavailable

19

SPRING-PLUNGER

16013-003

$4.36

20

PLUNGER,STARTER

16016-002

$33.31

21

SCREW

16014-006

$16.07

22

SPRING,PILOT AIR SCREW

16022-007

$7.97

23

GASKET FLOAT CHAMBER

16019-012

$20.68

24

GASKET,FLOAT VALVE SEAT

16029-002

$3.98

25

VALVE-FLOAT,#2.0

16030-001

$50.69

26

WASHER,MAIN JET

16034-001

$3.57

27

JET-MAIN,#75R

92063-109

Unavailable

27

MAIN JET,#70R

92063-1012

Unavailable

27

MAIN JET NO 72.5R

92063-108

Unavailable

27

JET-MAIN,#A77.5R

92063-1032

$15.86

27

JET-MAIN,#A80R

92063-1030

$15.86

28

JET-PILOT,#20

92064-021

Unavailable

29

PIN,FLOAT

16032-003

$5.95

30

FLOAT

16031-015

$59.81

31

SCREW-FLOAT CHAMBER

16033-012

$1.68

32

SCREW-FLOAT CHAMBER

16033-012

$1.68

32

BOOT,CARBURETOR

49006-1021

Unavailable

33

SCREW,CLAMP

16010-004

$4.90

34

NUT 6MM

311B0600

Unavailable
