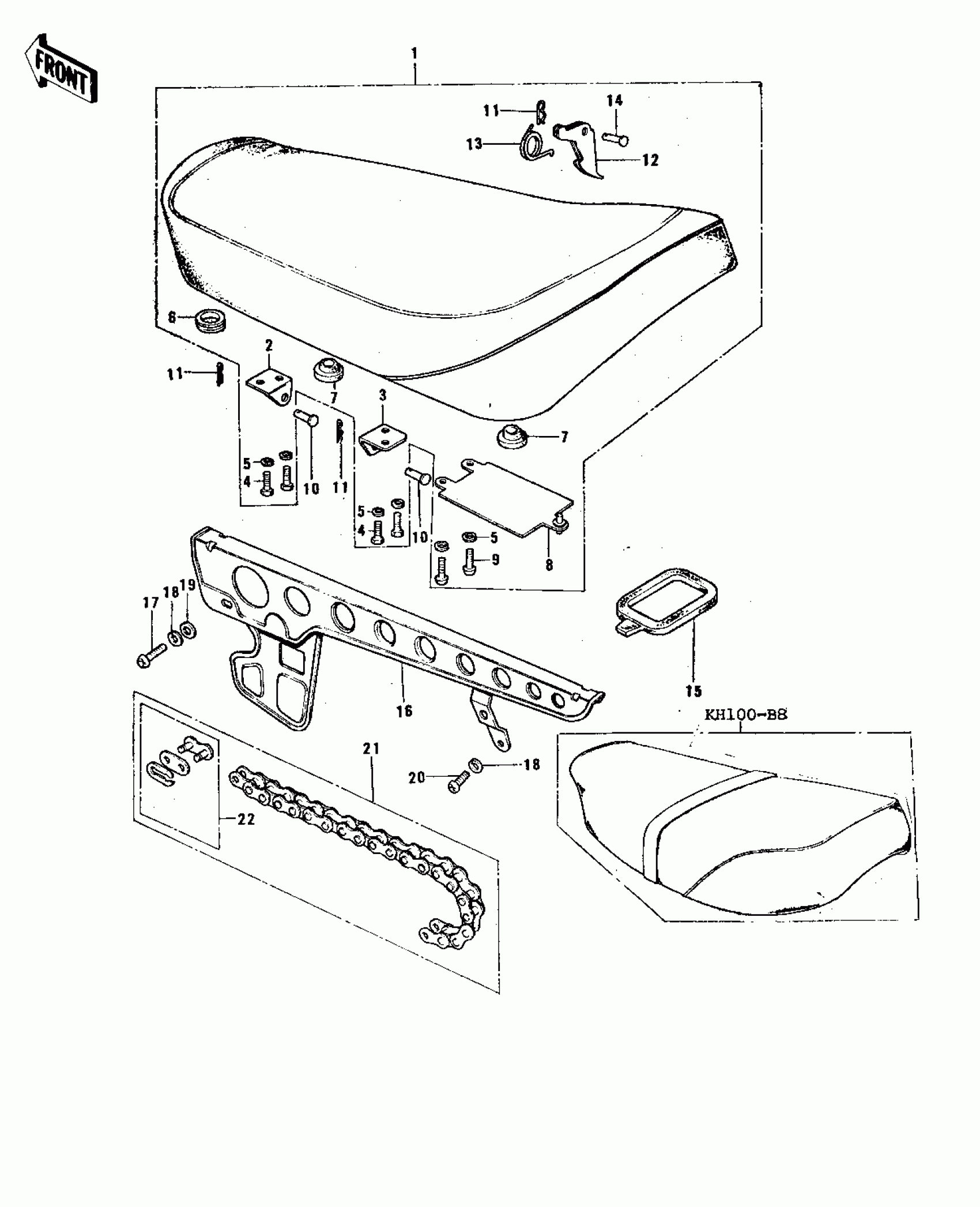

Kawasaki KH100-B8 SEAT/CHAIN COVER/CHAIN Diagram

#

Description

Price

1

SEAT-ASSY,DUAL

53001-099

Unavailable

1

SEAT-ASSY,DUAL

53001-099

Unavailable

2

HINGE,FRONT

53009-024

Unavailable

3

HINGE,REAR

53009-023

Unavailable

4

BOLT-UPSET 6X14

112B0614

Unavailable

4

BOLT-UPSET 6X14

112B0614

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

GROMMET

92071-056

Unavailable

7

DAMPER,DUAL SEAT

92075-023

Unavailable

8

CASE,MANUAL

32099-011

Unavailable

9

SCREW PAN HEAD 4X8

220B0408

Unavailable

10

PIN,6X11

92043-092

Unavailable

11

COTTER PIN

92041-003

Unavailable

12

HOOK-SEAT

53008-017

Unavailable

13

SPRING,HOOK

53012-011

Unavailable

14

PIN,DUAL SEAT PIVOT

92043-106

Unavailable

15

BAND-CHAIN OILER TANK

92072-039

Unavailable

16

CASE-CHAIN

36014-052

Unavailable

16

CASE-CHAIN

36014-071

Unavailable

17

SCREW PAN HEAD 5X8

220B0508

Unavailable

18

WASHER SPRING 5MM

461F0500

Unavailable

19

WASHER PLAIN 5MM

410B0500

Unavailable

20

SCREW-PAN-CROS

220B0512

Unavailable

21

* N.L.A.* (Canada)

695W43104

Unavailable

21

DR CHAIN 428X104

92057-026

Unavailable

22

JOINT-CHAIN,EK428-G

92058-1014

Unavailable
