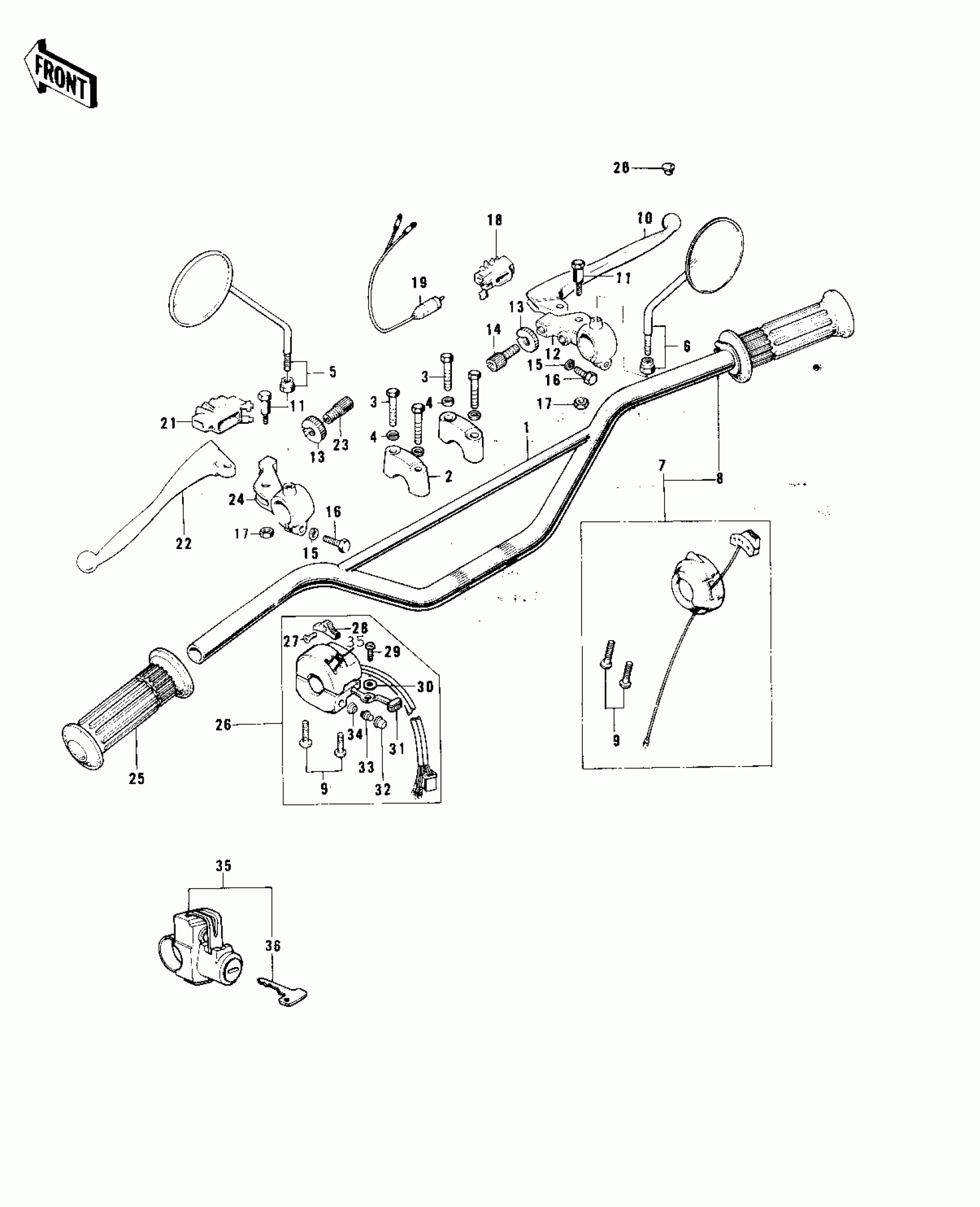

Kawasaki KH100-B8 HANDLEBAR Diagram
#
1
HANDLEBAR
46003-035
Unavailable
2
HOLDER-HANDLE,UPP
46012-004
Unavailable
3
BOLT 8X38
92001-1405
Unavailable
4
WASHER SPRING 8MM
461F0800
Unavailable
5
MIRROR-ASSY,LH
56003-009
Unavailable
6
MIRROR-ASSY,RH
56002-020
Unavailable
7
CASE ASSY,R.H
46018-047
Unavailable
8
GRIP ASSY,THROTTLE
46019-039
Unavailable
9
SCREW-PAN-CROS,5X25
220B0525
Unavailable
10
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
11
BOLT,5X22
92007-046
Unavailable
12
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
13
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
14
SCREW,CABLE ADJUST
46055-010
Unavailable
14
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
15
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
16
BOLT HEX HEAD 6X25
110N0625
Unavailable
17
NUT,LOCK,5MM
92019-014
Unavailable
18
BOOT,LEVER HOLDER
49006-1017
Unavailable
19
SWITCH,FR BRAKE LAMP
27021-004
Unavailable
20
CAP-RR VIEW MIRROR
92102-009
Unavailable
21
BOOT,LEVER HOLDER
49006-1017
Unavailable
22
LEVER-GRIP,CLUTCH
46092-015
Unavailable
23
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
24
HOLDER,F.BLACK
46094-011-21
Unavailable
25
RUBBER,L.H GRIP
46075-029
Unavailable
26
HOUSING-ASSY-CONTROL,LH
46091-040
Unavailable
27,28,
L.H GRIP SWITCH KIT
99990-531
Unavailable
27
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
28
KNOB-LH SWITCH
46044-009
Unavailable
29
SCREW PAN HEAD 3X5
220B0305A
Unavailable
29
SCREW PAN HEAD 3X5
220B0305A
Unavailable
30
WASHER
92095-010
Unavailable
31
KNOB-SWITCH
46044-010
Unavailable
32
SWITCH,PUSH BUTTON
27010-1009
Unavailable
33
SWITCH,PUSH BUTTON
27010-1009
Unavailable
34
SWITCH,PUSH BUTTON
27010-1009
Unavailable
35
LOCK ASSY,HELMET
27039-002
Unavailable
36
KEY SET NO.321
27008-034-21
Unavailable
36
KEY SET NO.322
27008-034-22
Unavailable
36
KEY SET NO.323
27008-034-23
Unavailable
36
KEY SET NO.324
27008-034-24
Unavailable
36
KEY SET, #325
27008-034-25
Unavailable
36
KEY SET, #326
27008-034-26
Unavailable
36
KEY SET, #327
27008-034-27
Unavailable
36
KEY SET, #328
27008-034-28
Unavailable
36
KEY SET, #329
27008-034-29
Unavailable
36
KEY SET, #330
27008-034-30
Unavailable
36
KEY SET NO.235
27008-034-35
Unavailable
36
KEY SET NO.236
27008-034-36
Unavailable
36
KEY SET NO.237
27008-034-37
Unavailable
36
KEY SET NO.238
27008-034-38
Unavailable
36
KEY SET NO.239
27008-034-39
Unavailable
36
KEY SET, #240
27008-034-00
Unavailable
36
KEY SET NO.140
27008-034-40
Unavailable
36
KEY SET NO.141
27008-034-41
Unavailable
36
KEY SET NO.142
27008-034-42
Unavailable
36
KEY SET NO.143
27008-034-43
Unavailable
