1977 Kawasaki KH100-B8 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1977 Kawasaki KH100-B8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

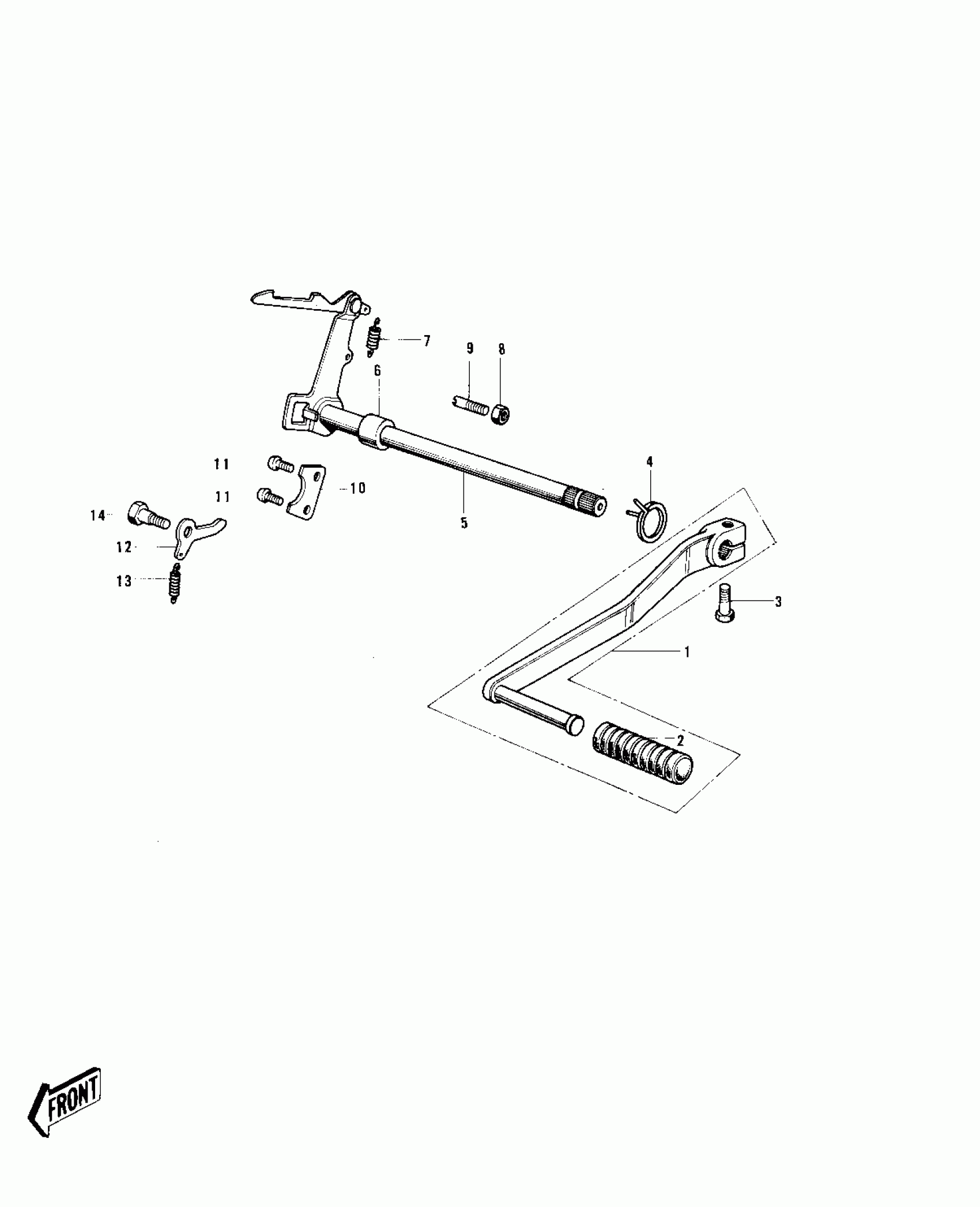

1977 Kawasaki KH100-B8 Gear Change Mechanism Diagram

#

Description
Price
Status
Order Qty

1

LEVER-ASSY-CHANGE

13242-004

Out of stock

2

DAMPER,CHANGE PEDAL

13157-004

Out of stock

3

BOLT-UPSET,6X20

112G0620

Out of stock

3

BOLT-UPSET,6X20

112G0620

Out of stock

4

SPRING,TENSION

92081-1129

Out of stock

4

SPRING,TENSION

92081-1129

Out of stock

5

LEVER ASSY,GEAR CHNG

13161-1014

Out of stock

6

COLLAR,12X18X11.5

92027-121

Out of stock

7

SPRING,CHANGE LEVER

92144-1720

Out of stock

8

NUT 8MM

312B0800

Out of stock

9

BOLT,RETURN SPRING

92001-1401

Out of stock

10

PLATE CHNG DRUM PSTN

13169-002

Out of stock

11

SCREW-PAN-CROS,6X14

220B0614

Out of stock

12

LEVER GEAR CHNG DRUM

13168-005

Out of stock

13

SPRING,CHANGE DRUM LEVER

92083-012

Out of stock

13

SPRING,CHANGE DRUM LEVER

92083-012

Out of stock

14

BOLT,CHANGE DRUM LEVER

92150-1450

Out of stock
