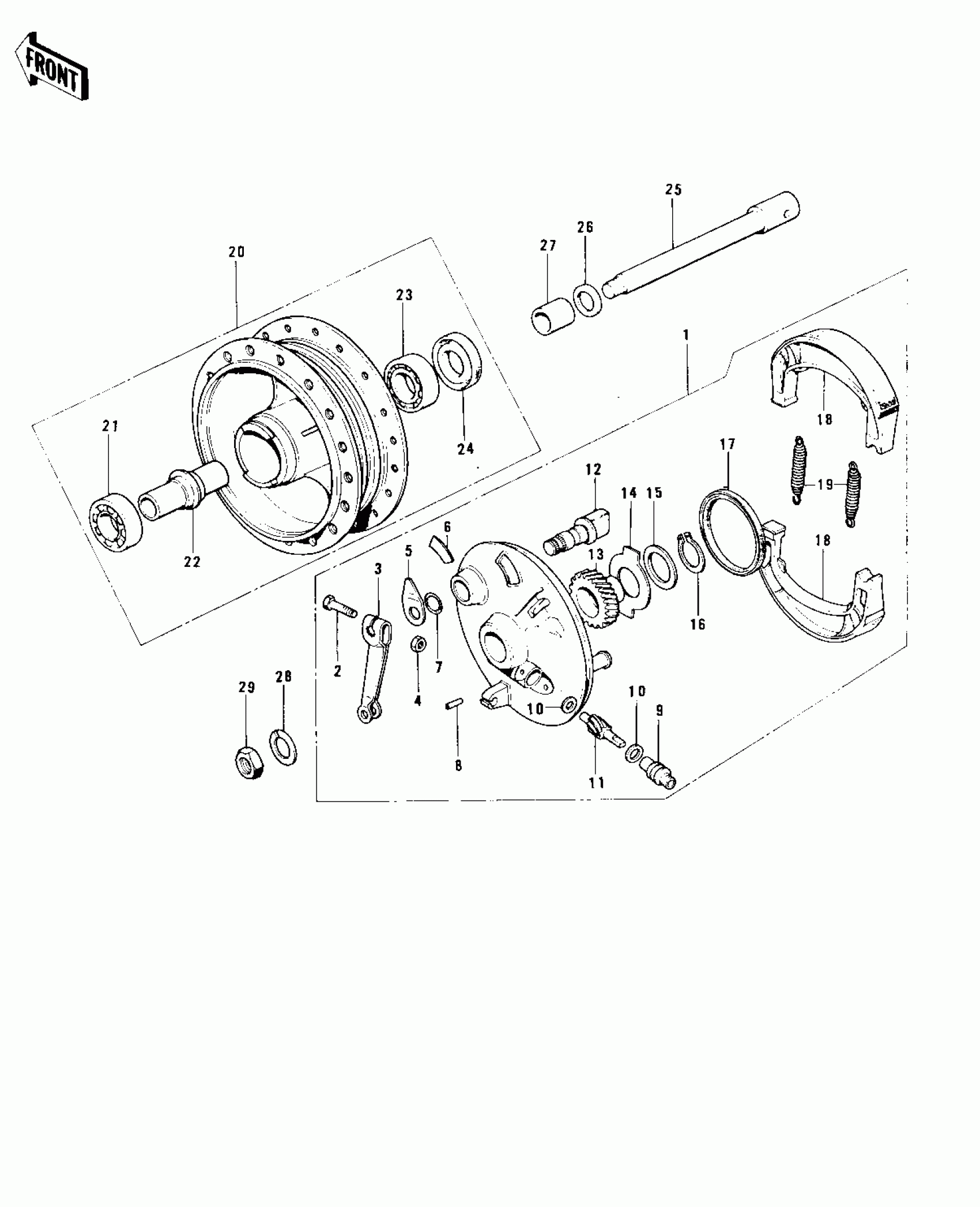

Kawasaki KH100-B8 FRONT HUB/BRAKE Diagram
#
Description
Price
1
PANEL-ASY,FR BRK
41035-083-80
Unavailable
2
BOLT-UPSET
112G0630
Unavailable
2
BOLT-UPSET
112G0630
Unavailable
3
LEVER-BRAKE CAM
41053-005
Unavailable
4
NUT,6MM
41072-007
Unavailable
5
INDICATOR,BRAKE SHOE
41085-008
Unavailable
6
LABEL,FR BRK SHOE
41084-002
Unavailable
7
RING-O,BRAKE CAM
92055-004
Unavailable
8
PIN,SPRING
41082-001
Unavailable
9
BUSHING,SPEEDOMETER CABLE
41062-005
Unavailable
10
WASHER,5.1X9X0.4
41063-001
Unavailable
11
GEAR-METER SCREW,8T
41060-004
Unavailable
12
CAM-BRAKE
41050-018
Unavailable
13
GEAR,SPEEDOMETER
41059-023
Unavailable
14
RECEIVER-SPEEDOMETER
41064-010
Unavailable
15
WASHER SPEED GR THRST
41065-002
Unavailable
16
CIRCLIP-TYPE-C,15MM
480J1500
Unavailable
17
SEAL-OIL,BRAKE PANEL
92050-002
Unavailable
18
SHOE-BRAKE
41048-1085
Unavailable
19
SPRING,BRAKE SHOE
92081-1766
Unavailable
20
DRUM-ASSY,FR BRK
41034-1040
Unavailable
21
BEARING BALL #6300Z
601B6300Z
Unavailable
22
COLLAR,L=51
41039-002
Unavailable
23
BEARING BALL #6200
601B6200
Unavailable
24
OIL SEAL FRONT DRUM
92050-003
Unavailable
25
AXLE,FR
41068-039
Unavailable
26
DUST SHIELD FRNT DRUM
41042-002
Unavailable
27
COLLAR FRONT HUB R.H
41069-002
Unavailable
28
WASHER SPRING 10MM
461F1000
Unavailable
29
NUT,10MM
42045-005
Unavailable
