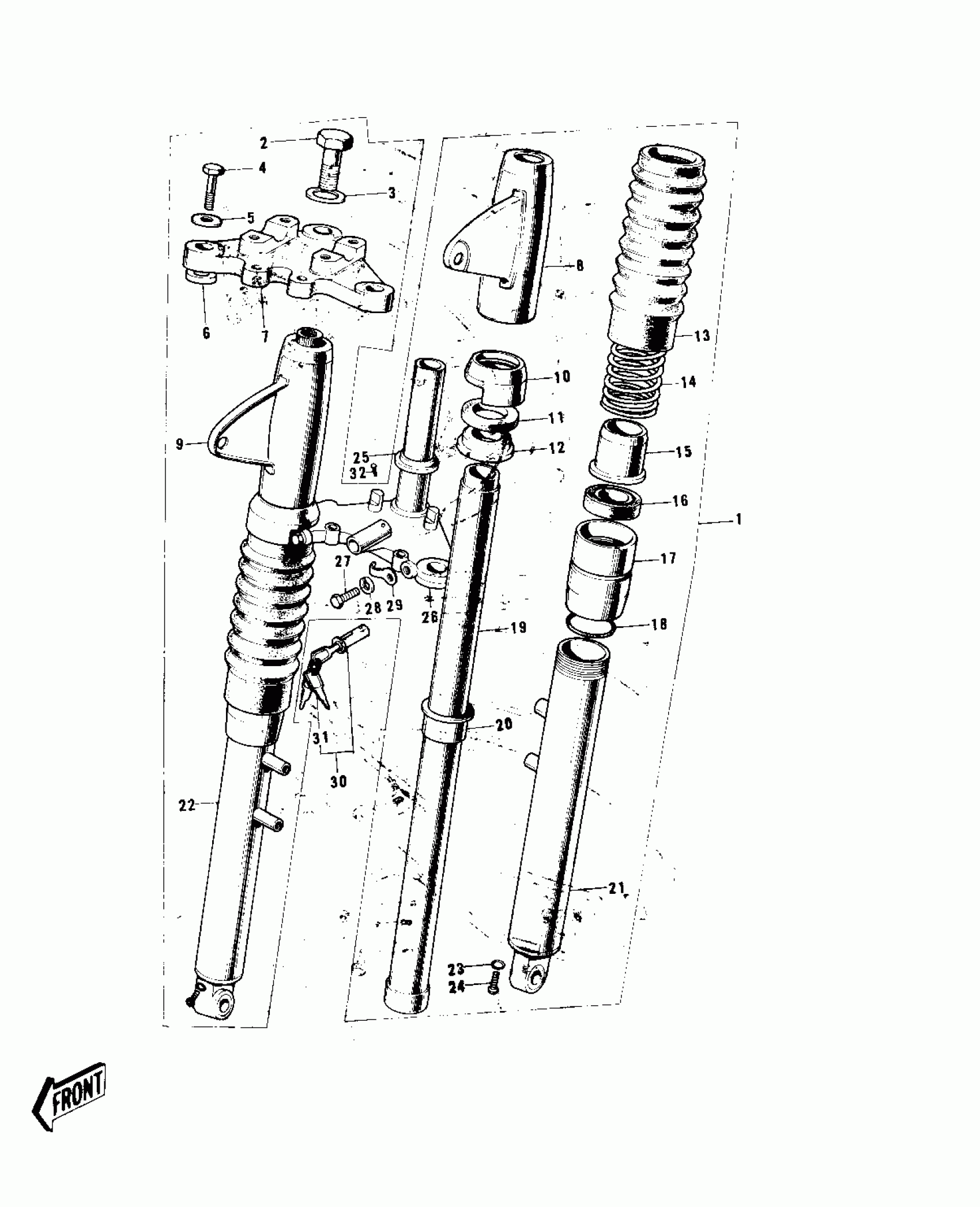

Kawasaki KH100-B8 FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT,F.BLACK

44001-178-21

Unavailable

2

BOLT STRNG STEM HEAD

44041-007

Unavailable

3

WASHER FORK COVER

44043-032

Unavailable

3

WASHER STRNG STEM HD

44043-016

Unavailable

4

BOLT FORK TOP

44041-020

Unavailable

5

WASHER FORK TOP

44043-017

Unavailable

6

GASKET INNER TUBE UPP

44046-002

Unavailable

7

HEAD STEERING STEM

44039-013

Unavailable

8

COVER,L.H FORK

44033-077-21

Unavailable

9

COVER,R.H FORK

44034-077-21

Unavailable

10

RING FORK COVER

44030-004

Unavailable

11

GASKET FORK COVER

44045-014

Unavailable

12

GUIDE FORK SPRING

44029-011

Unavailable

13

COVER FORK DUST

44027-004

Unavailable

14

SPRING FORK

44026-020

Unavailable

15

DUST SHIELD FORK

44010-015

Unavailable

16

OIL SEAL,FORK

44009-021

Unavailable

17

NUT FORK OUTER TUBE

44007-008

Unavailable

18

'O' RING OUTER TUBE

44046-005

Unavailable

19

TUBE FORK INNER

44013-010

Unavailable

20

GUIDE FORK INNER TUBE

44015-003

Unavailable

21

TUBE,LH,FORK OUTER

44005-029-15

Unavailable

22

TUBE,RH,FORK OUTER

44006-028-15

Unavailable

23

GASKET,FORK DRAIN PLUG

44045-002

Unavailable

24

SCREW PAN HEAD 4X8

220B0408

Unavailable

25

RACE,LOWER BEARING

92047-004

Unavailable

26

STEM STEERING

44037-020

Unavailable

27

BOLT, PINCH, 10MM

44041-010

Unavailable

28

WASHER SPRING 10MM

461F1000

Unavailable

29

CLAMP CABLE

92037-022

Unavailable

30

LOCK ASSY,STEERING

27016-5025

Unavailable

31

KEY SET NO.321

27008-034-21

Unavailable

31

KEY SET NO.322

27008-034-22

Unavailable

31

KEY SET NO.323

27008-034-23

Unavailable

31

KEY SET NO.324

27008-034-24

Unavailable

31

KEY SET, #325

27008-034-25

Unavailable

31

KEY SET, #326

27008-034-26

Unavailable

31

KEY SET, #327

27008-034-27

Unavailable

31

KEY SET, #328

27008-034-28

Unavailable

31

KEY SET, #329

27008-034-29

Unavailable

31

KEY SET, #330

27008-034-30

Unavailable

31

KEY SET NO.235

27008-034-35

Unavailable

31

KEY SET NO.236

27008-034-36

Unavailable

31

KEY SET NO.237

27008-034-37

Unavailable

31

KEY SET NO.238

27008-034-38

Unavailable

31

KEY SET NO.239

27008-034-39

Unavailable

31

KEY SET, #240

27008-034-00

Unavailable

31

KEY SET NO.140

27008-034-40

Unavailable

31

KEY SET NO.141

27008-034-41

Unavailable

31

KEY SET NO.142

27008-034-42

Unavailable

31

KEY SET NO.143

27008-034-43

Unavailable

32

RIVET

92099-001

Unavailable
