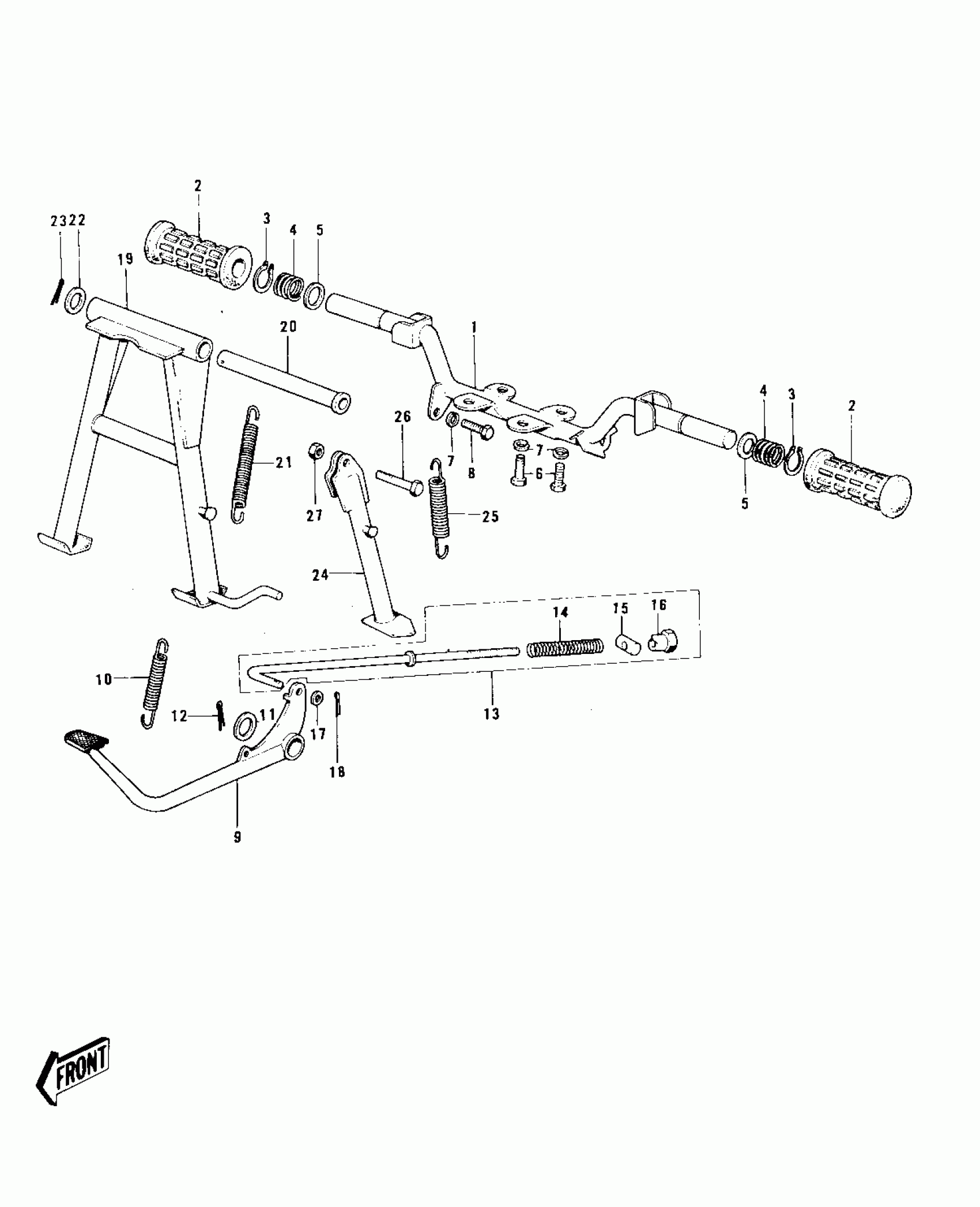

Kawasaki KH100-B8 FOOTRESTS/STANDS/BRAKE PEDAL Diagram
#
Description
Price
1
BAR,FOOTREST
34002-048
Unavailable
2
RUBBER FOOTREST
92076-006
Unavailable
3
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
4
SPRING FOOTREST PEG
34006-002
Unavailable
5
WASHER FOLDING PEG
92022-049
Unavailable
6
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
6
BOLT HEX HEAD 8X16
116B0816
Unavailable
7
WASHER SPRING 8MM
461F0800
Unavailable
8
BOLT,8X20
115G0820
Unavailable
8
BOLT,8X20
115G0820
Unavailable
9
PEDAL BRAKE
43001-014
Unavailable
10
SPRING BRAKE PEDAL
43005-005
Unavailable
11
WASHER BRAKE PEDAL
92022-085
Unavailable
12
PIN-COTTER,3.0X30
550D3030
Unavailable
13
BRAKE ROD ASSY
43010-5003
Unavailable
14
SPRING,BRAKE ROD
43012-001
Unavailable
15
PIN,BRAKE ROD
92043-039
Unavailable
16
NUT,BRAKE ROD
92015-042
Unavailable
17
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
18
PIN COTTER 2.0X15
550D2015
Unavailable
19
STAND-MAIN
34011-1045
Unavailable
20
SHAFT MAIN STAND
34019-006
Unavailable
21
SPRING MAIN STAND
34023-005
Unavailable
22
WASHER BRAKE PEDAL
92022-085
Unavailable
23
PIN-COTTER,3.0X30
550D3030
Unavailable
24
STAND-SIDE
34024-053
Unavailable
24
STAND-SIDE
34024-053
Unavailable
25
SPRING,SIDE STAND
34025-001
Unavailable
25
SPRING,STAND
34025-005
Unavailable
26
BOLT,HEX HEAD,10X25
113G1025
Unavailable
27
NUT-HEX-FINE,10MM
315B1000
Unavailable
