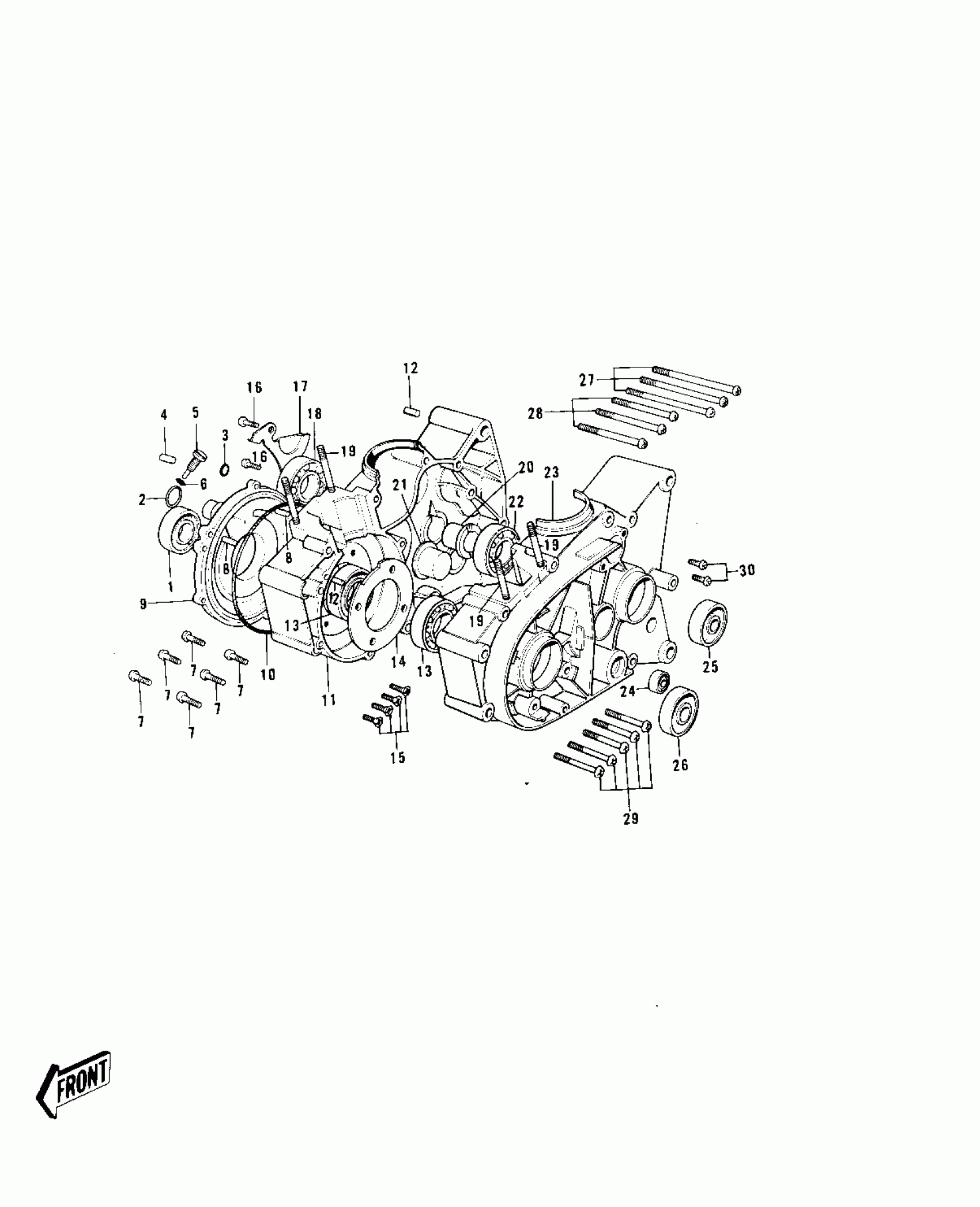

Kawasaki KH100-B8 CRANKCASE Diagram
#
Description
Price
1
SEAL-OIL
92049-1250
Unavailable
2
O RING,26MM
670B3026
Unavailable
3
RING-O,7.8X3.5
92055-029
Unavailable
4
PIN,DOWEL,8X16
92042-017
Unavailable
5
NOZZLE OIL INJECTION
92062-004
Unavailable
6
"0" RING,5MM
92055-011
Unavailable
7
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
8
ROLLER,5X12
610A0512
Unavailable
9
COVER ROTARY DISC VLV
14019-032
Unavailable
9
COVER,ROTARY DISC VALVE
14019-056
Unavailable
10
RING-O,100MM
92055-010
Unavailable
11
CRANKCASE,L.H.
14002-1072
Unavailable
12
PIN DOWEL 8X16
551A0816
Unavailable
13
BEARING-BALL,#6204C3
601B6204
Unavailable
14
PLATE-POSITION
14014-017
Unavailable
15
SCREW-CSK-CROS,6X16
221B0616
Unavailable
16
SCREW PAN HEAD 6X12
220B0612
Unavailable
17
PLATE-POSITION
14014-008
Unavailable
18
BEARING-BALL,#6005C3
601B6005
Unavailable
19
BOLT-STUD,8X115
172G08115
Unavailable
20
BUSHING,L=14
92028-069
Unavailable
21
BUSHING,L=23.5
92028-025
Unavailable
22
BEARING-BALL,#6004C3
601B6004
Unavailable
23
CRANKCASE,R.H
14003-063
Unavailable
24
SEAL-OIL,SB12205
92049-004
Unavailable
25
SEAL-OIL,SC25376
92050-013
Unavailable
26
SEAL-OIL
92049-1240
Unavailable
27
SCREW PAN HEAD 6X65
220B0665
Unavailable
28
SCREW-PAN-CROS,6X60
220B0660
Unavailable
29
SCREW PAN HEAD 6X40
220B0640
Unavailable
30
SCREW PAN HEAD 6X25
220B0625
Unavailable
