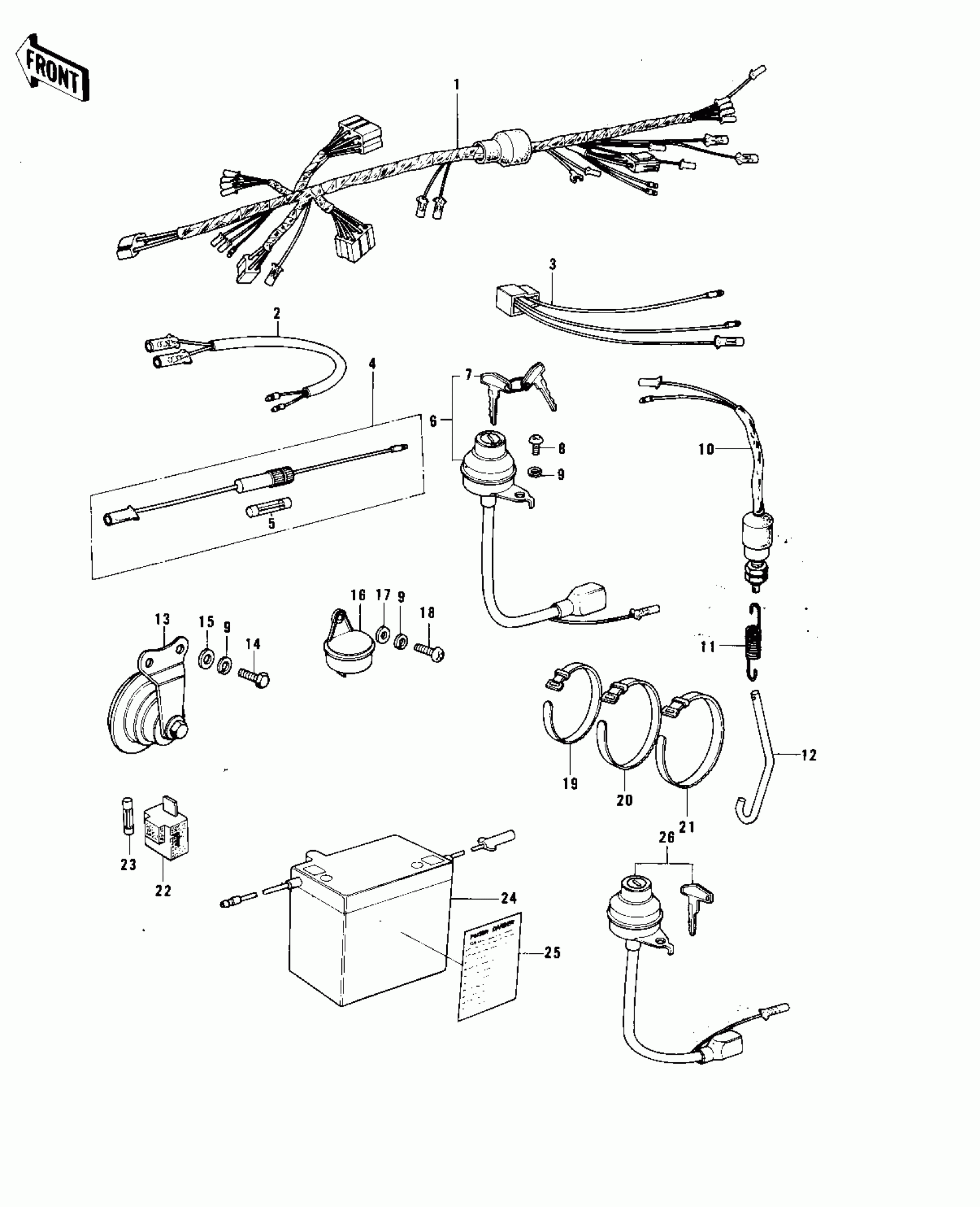

Kawasaki KH100-B8 CHASSIS ELECTRICAL EQUIPMENT Diagram
#
Description
Price
1
WIRING HARNESS,MAIN
26001-133
Unavailable
2
WIRING HARNESS-REAR
26002-030
Unavailable
3
WIRE,RECTIFIER LEAD
26011-072
Unavailable
4
FUSE ASSY
26004-025
Unavailable
5
FUSE 15A
26006-007
Unavailable
6
SWITCH,IGNITION
27005-084
Unavailable
7
KEY SET NO.321
27008-034-21
Unavailable
7
KEY SET NO.143
27008-034-43
Unavailable
8
SCREW PAN HEAD 6X12
220B0612
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
SWITCH-BRAKE LAMP
27010-015
Unavailable
11
SPRING,BRAKE LAMP SWITCH
27011-006
Unavailable
12
SPRING BRAKE LAMP SW
27012-005
Unavailable
13
HORN
27003-072
Unavailable
14
BOLT-UPSET,6X12
112G0612
Unavailable
15
WASHER PLAIN 6MM
411B0600
Unavailable
16
RELAY-TURN SIGNAL
27002-015
Unavailable
17
WASHER,6.5X20X1.6
92022-125
Unavailable
18
SCREW-PAN-CROS,6X16
220B0616
Unavailable
19
BAND,L=123
92072-030
Unavailable
20
BAND,L=218
92072-032
Unavailable
21
BAND,L=186
92072-056
Unavailable
22
HOLDER-SPARE FUSE
26016-004
Unavailable
23
FUSE 15A
26006-007
Unavailable
24
YUA BAT 6N4-2A-5
K26012-020
Unavailable
24
YUA BAT 6N4-2A-5
K26012-020
Unavailable
25
LABEL-WARNING,BATTERY
56040-1036
Unavailable
26
SWITCH ASSY,IGNITION
27005-085
Unavailable
27
KEY,BLANK
27008-1016
Unavailable
27
KEY,BLANK
27008-1017
Unavailable
27
KEY,BLANK
27008-1018
Unavailable
27
KEY,BLANK
27008-1019
Unavailable
