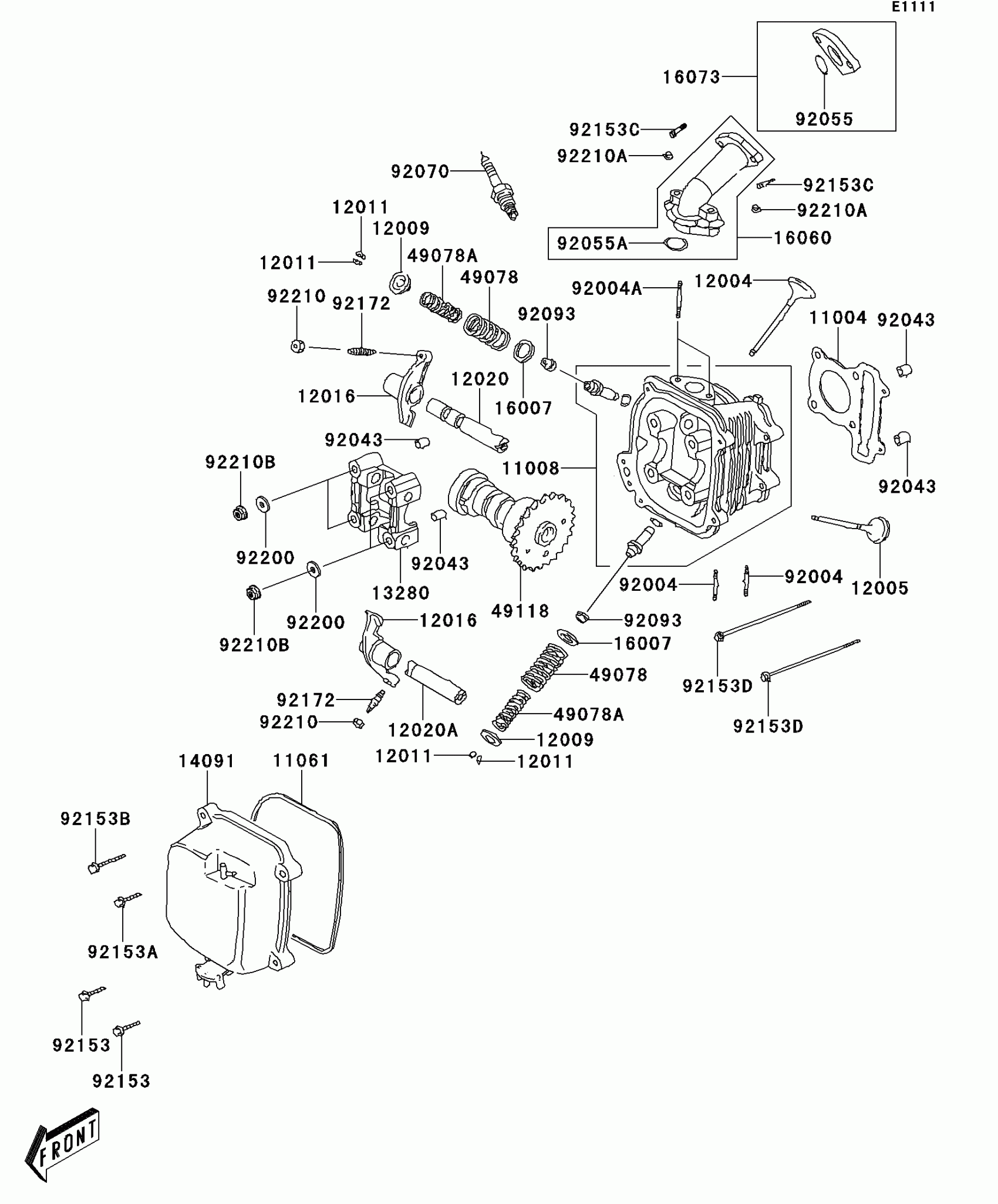

Kawasaki KFX90 Cylinder Head(A7F) Diagram

#

Description
Price

11004

GASKET-HEAD

11004-Y002

$14.91

11008

HEAD-COMP-CYLINDER

11008-Y002

$352.10

11061

GASKET,CYLINDER HEAD COVER

11061-Y010

$8.79

12004

VALVE-INTAKE

12004-Y002

$28.49

12005

VALVE-EXHAUST

12005-Y002

$44.90

12009

RETAINER-VALVE SPRING

12009-Y001

$5.04

12011

COLLET

12011-Y001

$7.12

12016

ARM-ROCKER

12016-Y001

$57.93

12020

SHAFT-ROCKER,IN

12020-Y001

$13.65

12020A

SHAFT-ROCKER,EX

12020-Y003

$7.07

13280

HOLDER,CAMSHAFT

13280-Y002

$30.88

14091

COVER,CYLINDER HEAD

14091-Y002

$36.37

16007

SEAT-SPRING

16007-Y001

$2.19

16060

PIPE-INTAKE

16060-Y001

$54.56

16073

INSULATOR

16073-Y002

$36.38

49078

SPRING-ENGINE VALVE,OUTER

49078-Y002

$6.69

49078A

SPRING-ENGINE VALVE,INNER

49078-Y003

$5.55

49118

CAMSHAFT-COMP

49118-Y002

$115.98

92004

STUD,8X32

92004-Y006

$1.46

92004A

STUD,6X50

92004-Y007

$3.17

92043

PIN,10X16

92043-Y013

$1.29

92055

RING-O,23X2.4

92055-Y007

$1.02

92055A

RING-O,22X2.0

92055-Y008

$1.02

92070

PLUG-SPARK,CR7HSA

92070-Y002

$4.12

92093

SEAL

92093-Y001

$7.04

92153

BOLT,FLANGE,6X25

92153-Y027

$0.79

92153A

BOLT,FLANGE,6X35

92153-Y029

$0.82

92153B

BOLT,FLANGE,6X50

92153-Y030

$0.82

92153C

BOLT,FLANGE,6X25

92153-Y051

$1.14

92153D

BOLT,FLANGE,6X95

92153-Y056

$4.39

92172

SCREW

92172-Y003

$4.52

92200

WASHER,8MM

92200-Y009

$1.46

92210

NUT

92210-Y004

$1.46

92210A

NUT,6MM

92210-Y027

$0.79

92210B

NUT,8MM

92210-Y028

$0.79
