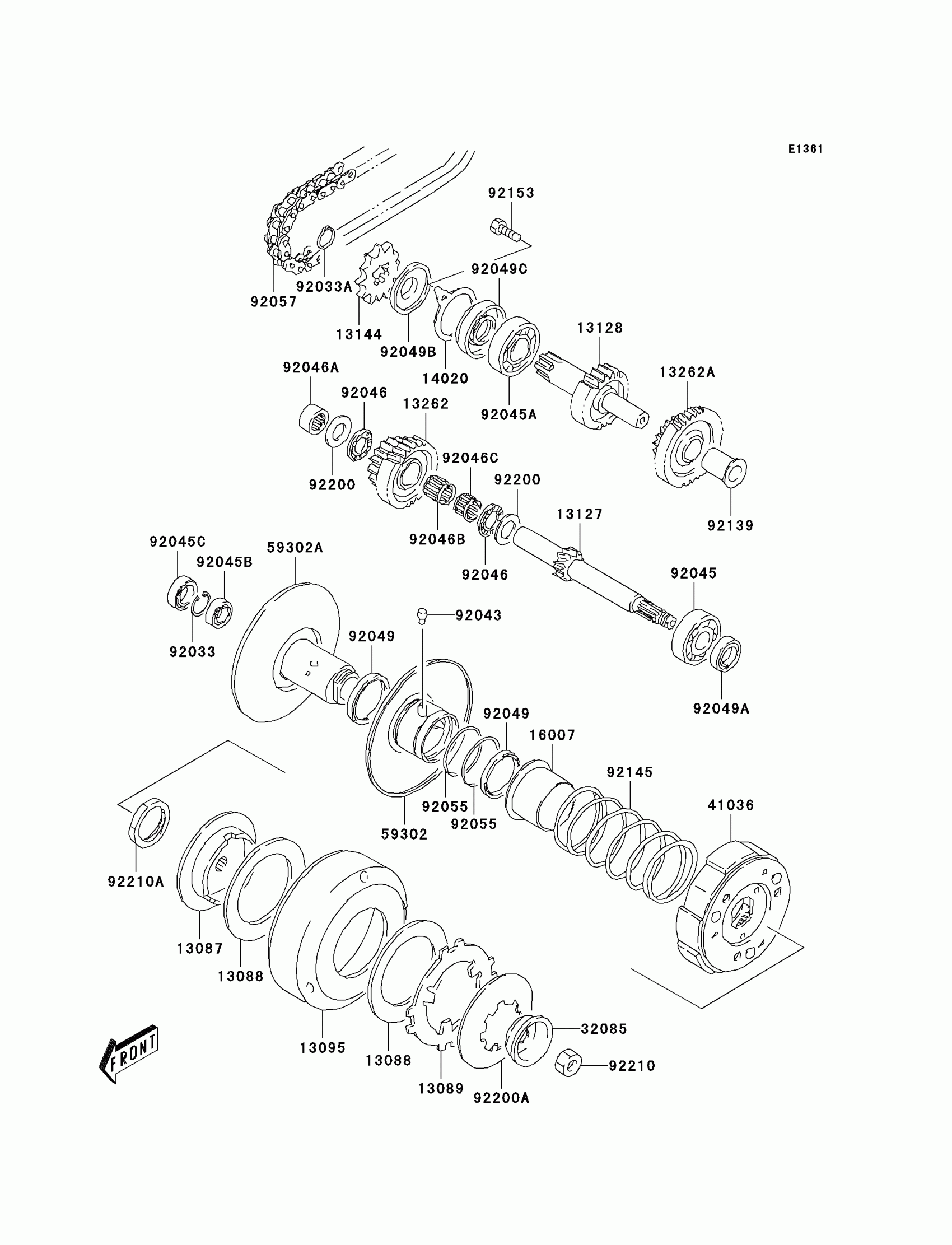

Kawasaki KFX80 Transmission Diagram
#
13087
HUB-CLUTCH
13087-S002
$55.86
13088
PLATE-FRICTION,LIMITER CLUTCH
13088-S002
$16.19
13089
PLATE-CLUTCH,LIMITER CLUTCH
13089-S002
$6.07
13095
HOUSING-COMP-CLUTCH
13095-S005
$75.29
13127
SHAFT-TRANSMISSION INPUT
13127-S005
$87.98
13128
SHAFT-TRANSMISSION OUTPUT
13128-S007
$133.64
13144
SPROCKET-OUTPUT,10T-520
13144-S004
$20.30
13262
GEAR-TRANSMISSION SPUR,FINAL
13262-S002
$115.10
13262A
GEAR-TRANSMISSION SPUR,IDLER
13262-S003
$129.48
14020
RETAINER,DRIVE SHAFT
14020-S005
$6.48
16007
SEAT-SPRING,MOVABLE DRIVEN
16007-S004
$6.38
32085
STOPPER,LIMITER CLUTCH
32085-S006
$12.00
41036
HUB-ASSY
41036-S005
$133.47
59302
SHEAVE-COMP,MOVABLE DRIVEN
59302-S009
$69.33
59302A
SHEAVE-COMP,FIXED DRIVEN
59302-S010
$89.14
92033
RING-SNAP
92033-S004
Unavailable
92033A
RING-SNAP
92033-S020
$2.39
92043
PIN,MOVABLE DRIVEN
92043-S030
$2.33
92045
BEARING-BALL,15X42X13
92045-S015
$26.69
92045A
BEARING-BALL,20X47X14
92045-S017
$35.75
92045B
BEARING-BALL,FIXED DRIVEN
92045-S041
$34.84
92045C
BEARING-BALL,FIXED DRIVEN
92045-S042
$34.84
92046
BEARING-NEEDLE,15X28X2
92046-S006
$8.69
92046A
BEARING-NEEDLE,SHAFT
92046-S011
$13.09
92046B
BEARING-NEEDLE,FINAL DRIVE
92046-S012
$16.35
92046C
BEARING-NEEDLE,FINAL DRIVE
92046-S013
$17.39
92049
SEAL-OIL,MOVABLE DRIVEN
92049-S036
$8.65
92049A
SEAL-OIL
92049-S037
$5.90
92049B
SEAL-OIL,DRIVE SHAFT
92049-S039
$10.01
92049C
SEAL-OIL,DRIVE SHAFT
92049-S045
$14.16
92055
RING-O,D:1.5,ID:39.7
92055-S020
$2.84
92057
CHAIN,DRIVE,36LE
92057-S009
$49.75
92139
BUSHING,IDLER DRIVE
92139-S017
$20.71
92145
SPRING,MOVABLE DRIVEN FACE
92145-S087
$10.44
92153
BOLT
92153-S126
Unavailable
92200
WASHER,FINAL DRIVE GEAR
92200-S114
$3.26
92200A
WASHER
92200-S115
$11.95
92210
NUT,CLUTCH HOUSING
92210-S083
$3.72
92210A
NUT,SHOE CLUTCH
92210-S084
$10.07
